10-60 Times / Min Lab Testing Equipment Computer Mouse Roller Sliding Life Testing

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 35 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Computer Mouse Roller Sliding Life Testing Machine Test Stroke: 50mm±20mm
Test Speed: 10~60 Times/min Load: 80,100±5gf
Gas Source: ≥0.6MPa Weight: 65kg
Highlight:

abrasion testing equipment

,

physical testing equipment
Product Description

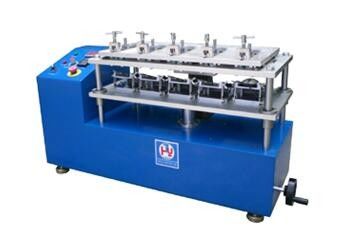

10-60 Times / Min Lab Testing Equipment Computer Mouse Roller Sliding Life Testing



Product Information

This machine is suitable for the mechanical life test of the roller for several times. The simulation hand performs the back and forth friction rolling test on the mouse wheel. The operation method is to fix the mouse wheel up on the machine table surface, and apply a certain load, friction times and round trip, and rub the mouse wheel.



Main technical parameters

 Test the number of test pieces  5 mice can be tested at the same time.
 Test stroke  50mm±20mm
 Test speed  10~60 times/min
 Load  80,100±5gf
 Gas source  ≥0.6MPa
 Volume  W850×D290×H550mm
 Weight  65kg
 Power supply  AC220V, 50Hz 5A or specified



10-60 Times / Min Lab Testing Equipment Computer Mouse Roller Sliding Life Testing
