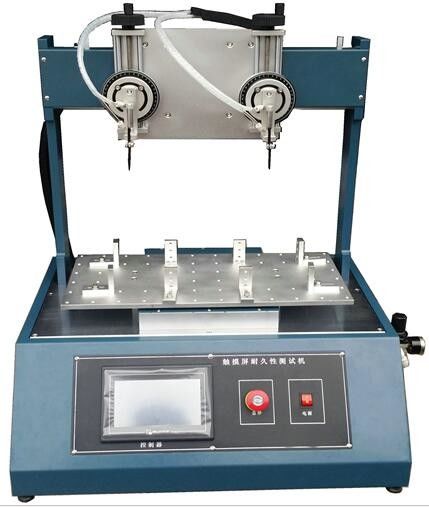

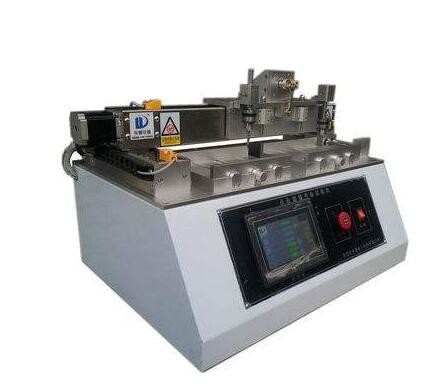

Touch Screen Cross-Hook Test Machine
Description of use
This machine is a special testing equipment for small consumer electronic products such as mobile phones, dialogue machines and electronic dictionaries. It is mainly an endurance test for drawing and clicking on the handwriting screen.
Performance
1. Y axis movement range: 120mm
2. Y-axis test speed: 300-7800mm/min
3. Pressure range: 150-1000gf can be customized according to customer requirements
4. Y-axis drive mode: electric drive mode
5. Z-axis load mode: weight
6. Click power: 50-500gf
7. Click speed: 10-120 times / minute
8. X-axis torque: 2.2Nm
9.Test station (linkage): 6
10. Control function:
A. Digital setting running speed (Y axis)
B. The number sets the running displacement (Y axis)
C.The number sets the click speed (Z axis)
D.The count value is 8-bit LCD display, and 1~~99999999 is set arbitrarily, power-off memory
E.Line drawing method: reciprocating straight line
11.Alarm function: count value to alarm and shutdown
12.Alarm mode: sound and light
13.Working voltage: 220VAC 50HZ
