SKYLINE INSTRUMENTS CO.,LTD info@skylineinstruments.com 86-769-23830463
Product Details
Place of Origin: CN
Brand Name: SKYLINE
Certification: Calibration Certificate
Model Number: SL-S18T
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 10 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 2 pcs/ month
SKYLINE: |
Fabric Vertical Flammability Tester |
Flame Height: |
25 Mm / 40 Mm |
Marker Threads: |
45 Tex To 50 Tex |
Volume: |
80x52x80 Cm (WxDxH) |
Fire Mouth Angle: |
0 ° / 30 °, 90 ° |
Specimen Holders: |
12 Pcs |
Standard: |
ISO6941,ISO6940 |
SKYLINE: |
Fabric Vertical Flammability Tester |
Flame Height: |
25 Mm / 40 Mm |
Marker Threads: |
45 Tex To 50 Tex |
Volume: |
80x52x80 Cm (WxDxH) |
Fire Mouth Angle: |
0 ° / 30 °, 90 ° |
Specimen Holders: |
12 Pcs |
Standard: |
ISO6941,ISO6940 |

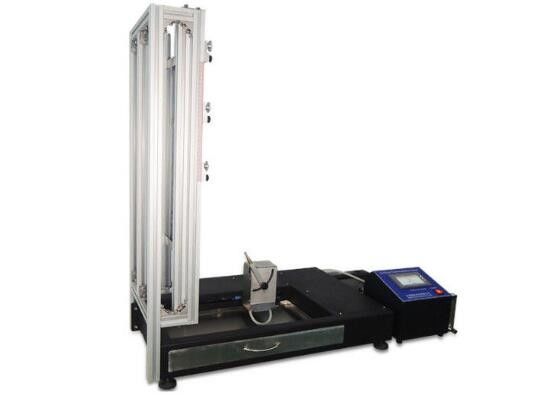

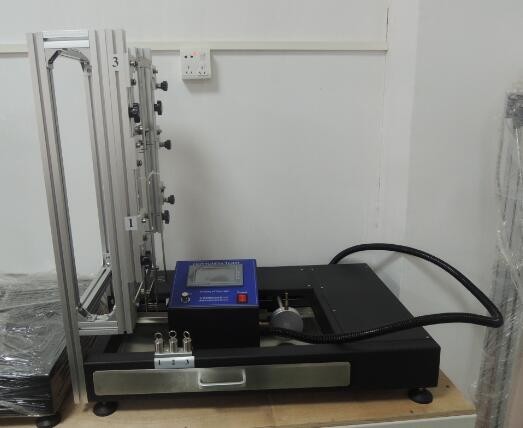

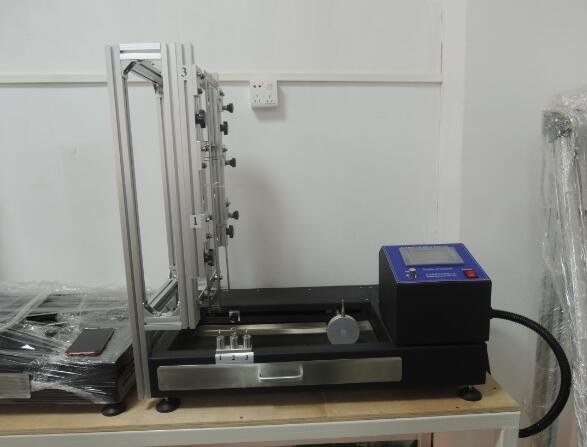

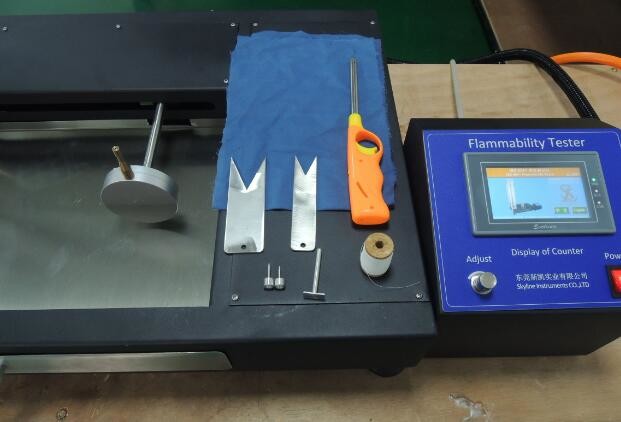

ISO 6941 Textile Fabrics Vertical Burning Tester
Description
ISO6941 Textile Fabrics Vertical Burning Tester is used for testing the textile fabrics burining behaviour.Measurement of flame spread properties of vertically oriented specimens.
It is also applicable to all kinds of textile material of flammability test;
Specifications
The ignition time setting range | 0 ~ 99.99 s |
The combustion timing range | 0 ~ 999.9 s |
Fire mouth Angle | with the horizontal Angle: 0 ° / 30 °, 90 ° can be adjusted |
The test flame height | 25mm / 40 mm |
Specimen holders | 12 pcs |
Marker Threads | 45 tex to 50 tex |
Combustion gas | commercial grade propane or butane or butane/propane mixtures |
Volume (WxDxH) | 80x52x80 cm (WxDxH) |
Weight (about) | 45 kg |
Power supply | 1∮ AC 220V 50Hz |
Test Standards | BS EN ISO 6940,EN ISO 6941 |
Fabric Vertical Flammability Tester 2.pdf
Please review video of the ISO 6941 Textile Fabrics Vertical Burning Tester operation as below link:
https://youtu.be/X6zSjz2_QZI
