Luggage Handle Fatigue Tester Leather Suitcase Handle Durability Testing Machine/ Luggage Test Equipment

Place of Origin China
Brand Name SKYLINE
Certification calibration certificate
Model Number SL-TL03
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 35 working days
Payment Terms Western Union, T/T,
Supply Ability 2 pcs/ month
Product Details
SKYLINE: Luggage-Handle-Fatigue-Tester-Equipment Impact Height: 4 Inch (0~6 Inches) Adjustable
Testing Speed: 5~30 C.P.M. Adjustable Times Setting: 1~999999 Automatic Shutdown
Dimension: 1400*1200*2500 Mm Weight: 390kg
Highlight:

abrasion testing equipment

,

brake testing equipment
Product Description

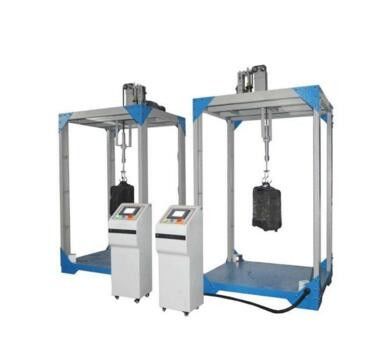

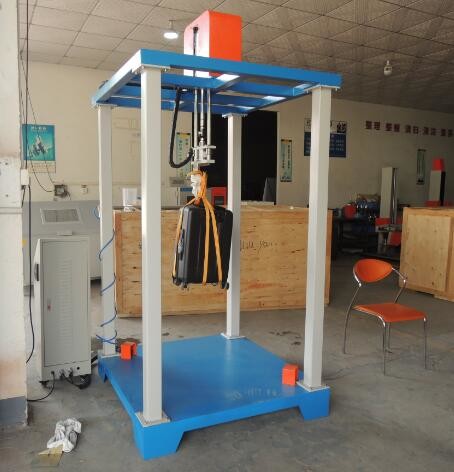

Luggage Handle Fatigue Tester



Description

Luggage Handle Jerk Tester is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines and the whole structure of luggages. The testing methods are as follows: First, Load the object with stated load weight. And then do the test to the specimen with the speed of 30 times per minute and the impact height of 4 inches for 2500 times. The tset result can be taken into consideration of quality improvement.



Specification

 Impact Height  4 inch (0~6 inches) adjustable
 Oscillation Mode  Spring type: 1.79Kg/mm
 Testing Speed  5~30 C.P.M. adjustable
 Times Setting  1~999999 Automatic shutdown
 Additional Function  It would stop automatically if something goes wrong.
 Dimension  1400*1200*2500 mm
 Weight  390 Kg
 Power  1, 220V/50Hz
 Design criteria  QB/T2922-2007



Advantage
1.24 hours online
2.35 years experiences
3.Sample chamber of each model
4.Best price, fast delivery
5.OEM,ODM
6.Oversea offices
7.Own import and export business license
8.ISO,CE,UL,ASTM,DIN,EN,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Luggage Handle Fatigue Tester.pdf
