Lab Testing Equipment Cup Stiffness Tester for Various Volume Cups
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
Calibration certificate
SKYLINE:
Cup Stiffness Tester
Measurement Range:
(0-20)N, Resolution 0.01N
Measurable Paper Cup Diameter:
20-150mm
Paper Cup Height:
15≤L≤120
Force Distance:
9.5±0.5mm
Net Weight:
18 Kg
Highlight:
abrasion testing equipment
,physical testing equipment
Product Description

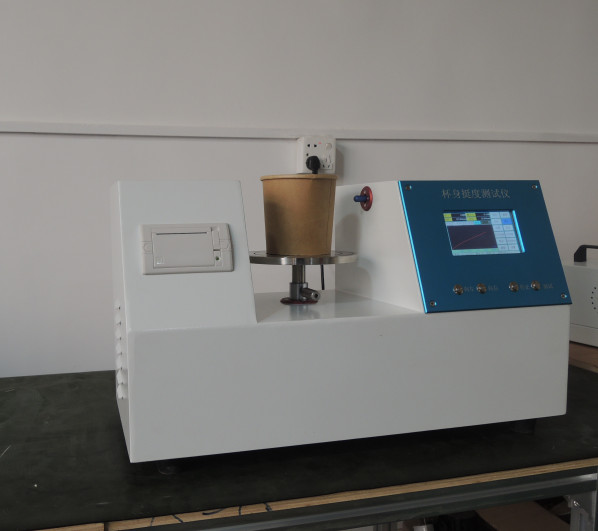

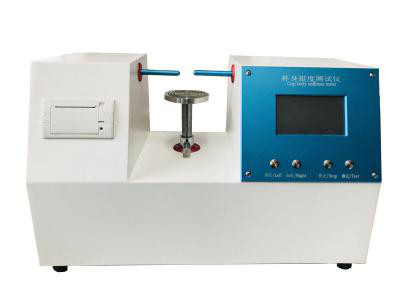

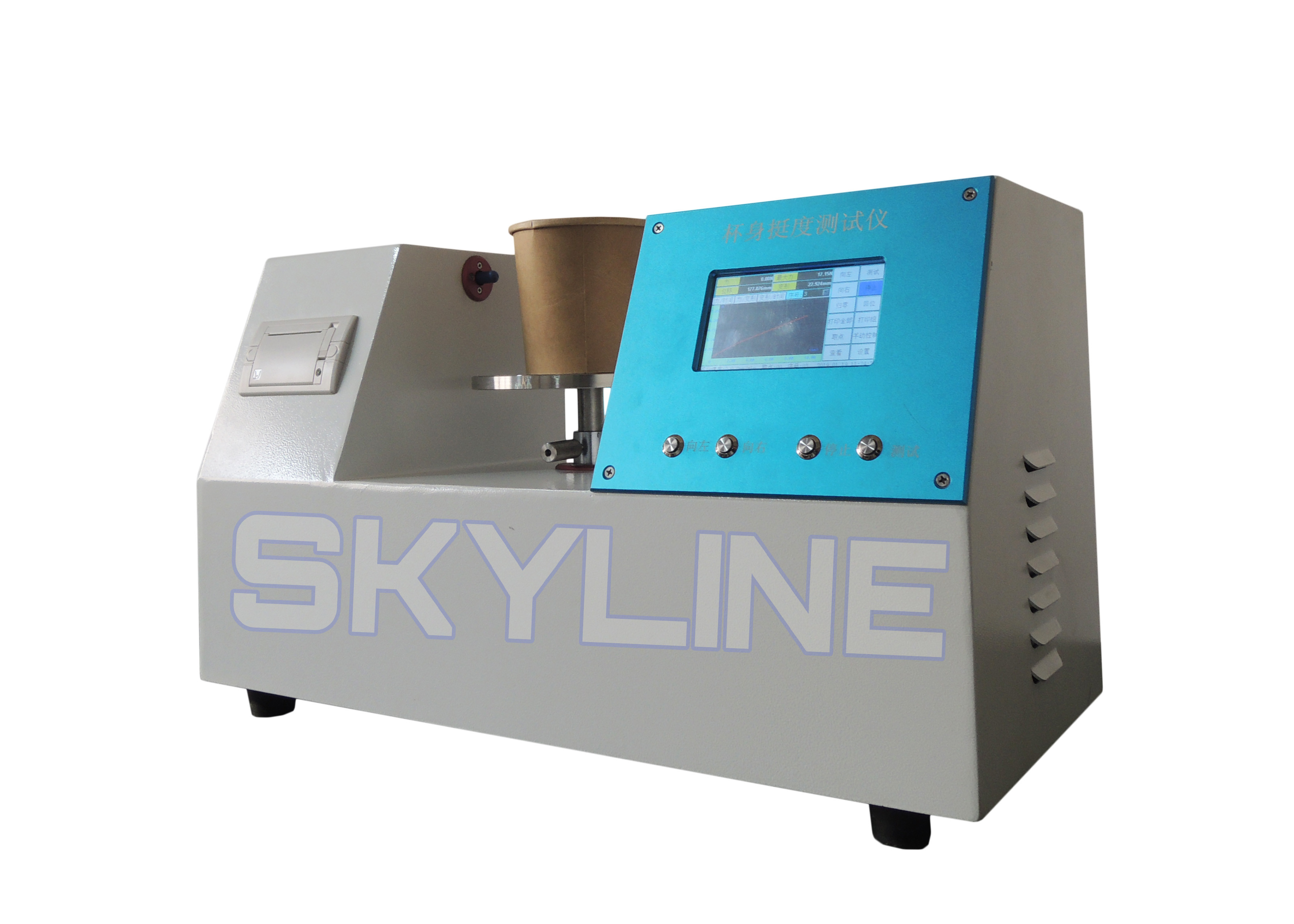

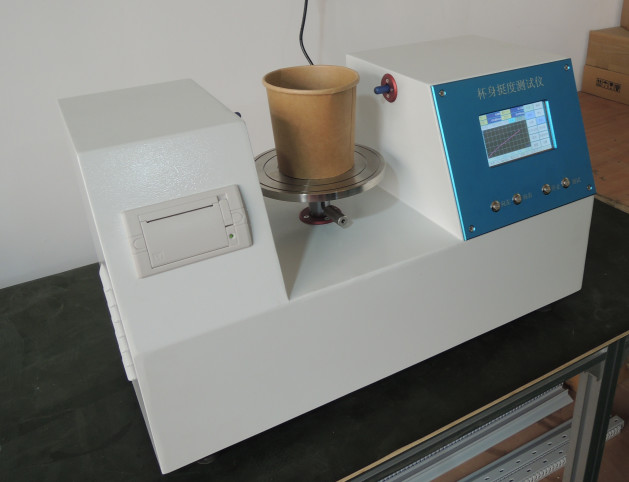

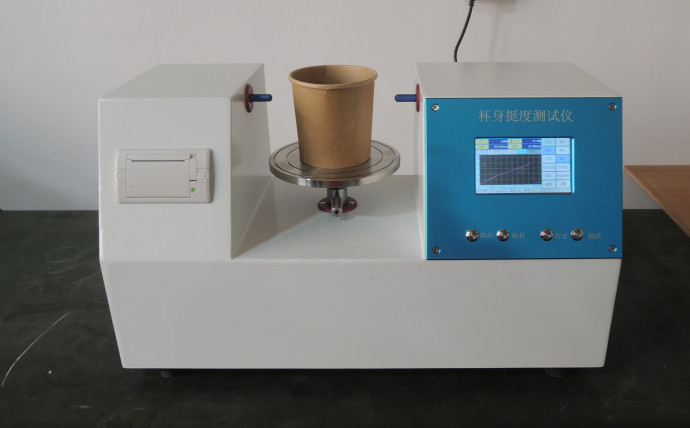

Cup Stiffness Tester
Application
The cup body stiffness measurement for various volume cups is an ideal measuring instrument for the cup body stiffness. It is a necessary paper cup physical property testing instrument for paper cup production plants and related scientific research and quality inspection departments.
Technical parameters
| Measurement range | (0-20)N, resolution 0.01N |
| Display value accuracy indication error | ±1% indication variability ≤1% |
| Measurable paper cup diameter | 20-150mm |
| Paper cup height | 15≤L≤120 |
| Test speed | 50±2.5mm/min (1-200 continuously adjustable) |
| Force distance | 9.5±0.5mm |
| Dimensions | (length × width × height) 380mm × 260mm × 290mm |
| Modular integrated thermal printer; | |
| Net weight | 18 kg |
