3mm Impact Head Bending Test Equipment , CE Welding Bend Test Machine

Name: 3mm Impact Head Bending Test Equipment , CE Welding Bend Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T69
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-T69

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                3mm Impact Head bending test equipment, CE bending test equipment, CE welding bend test machine


SKYLINE:	Impact Bending Test Equipment	Number Of Samples:	1 Unit/time
Support Rod Center Span:	70mm-160mm Adjustable	Impact Height Adjustment:	5mm-100mm Adjustable
Volume (WxDxH):	110x105x198cm	Power Supply:	1∮ AC 220V 50Hz 15A

SKYLINE:	Impact Bending Test Equipment
Number Of Samples:	1 Unit/time
Support Rod Center Span:	70mm-160mm Adjustable
Impact Height Adjustment:	5mm-100mm Adjustable
Volume (WxDxH):	110x105x198cm
Power Supply:	1∮ AC 220V 50Hz 15A

Product Description

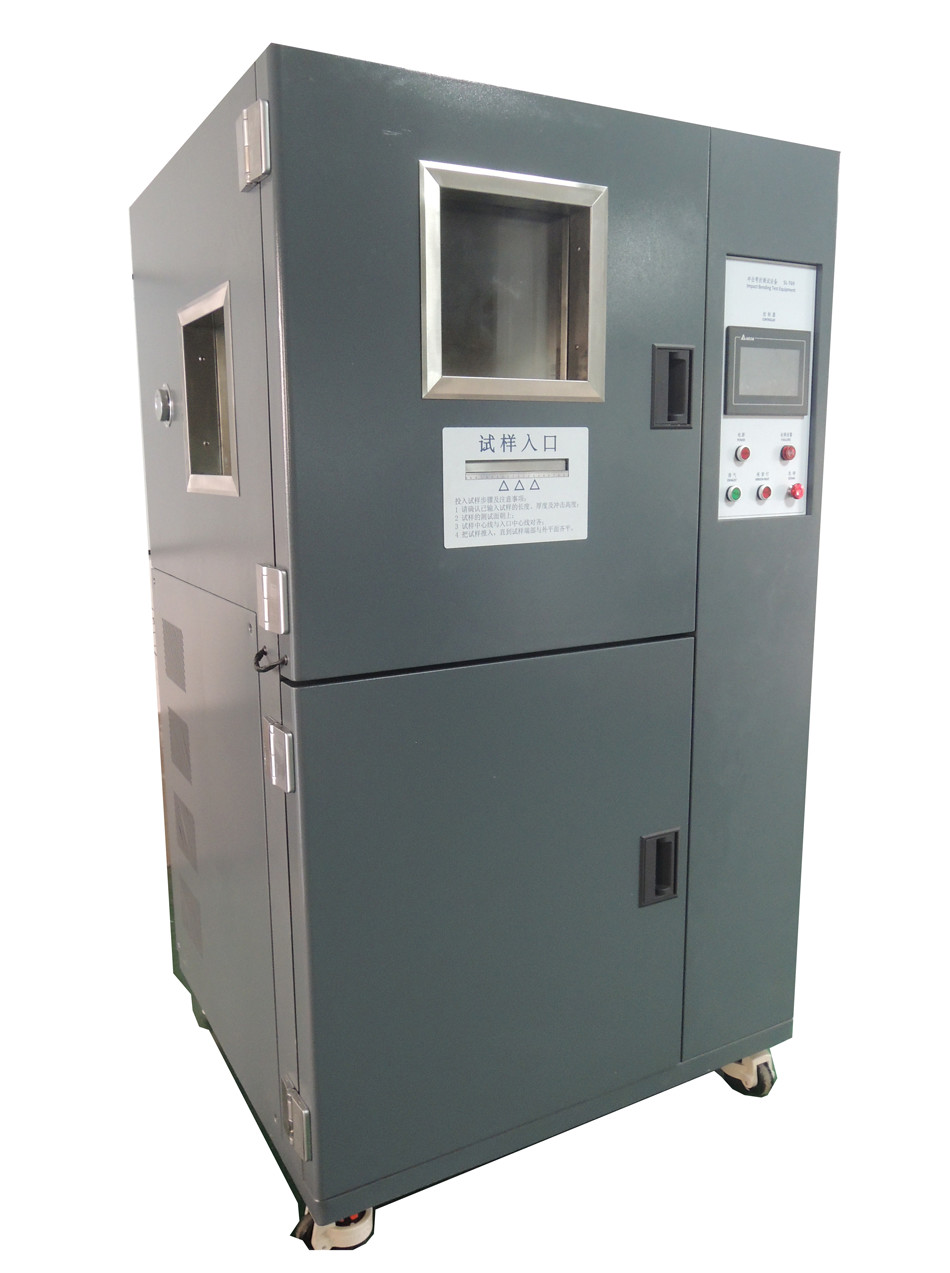

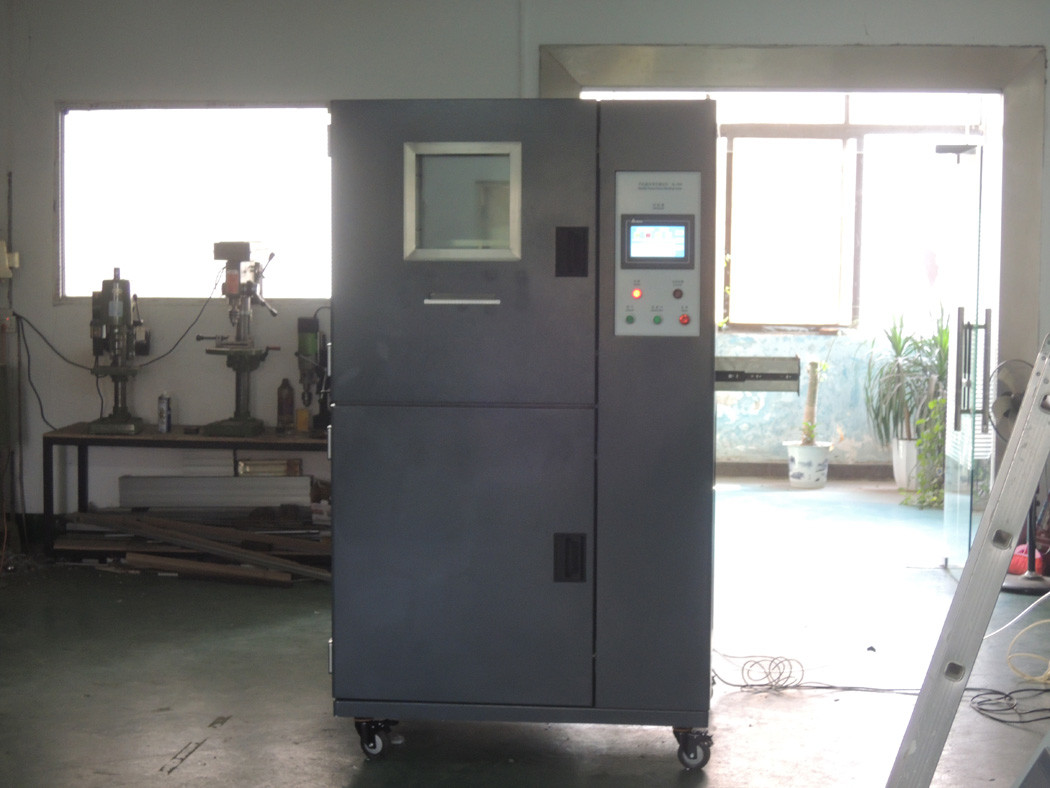

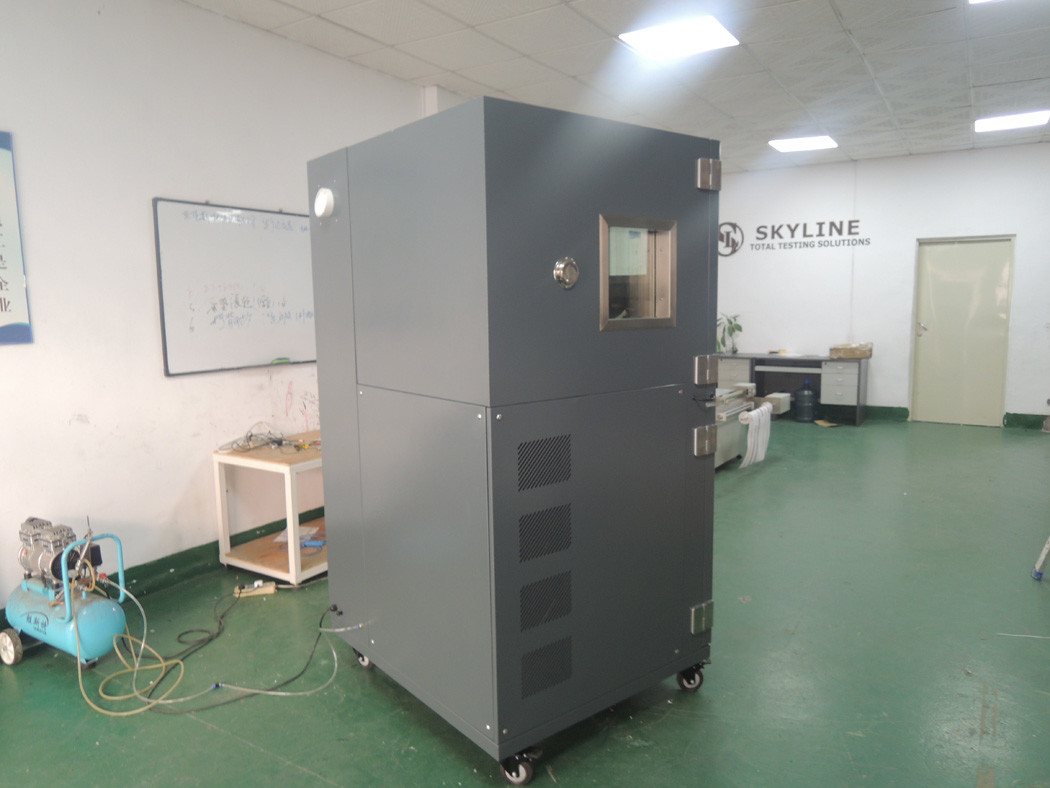

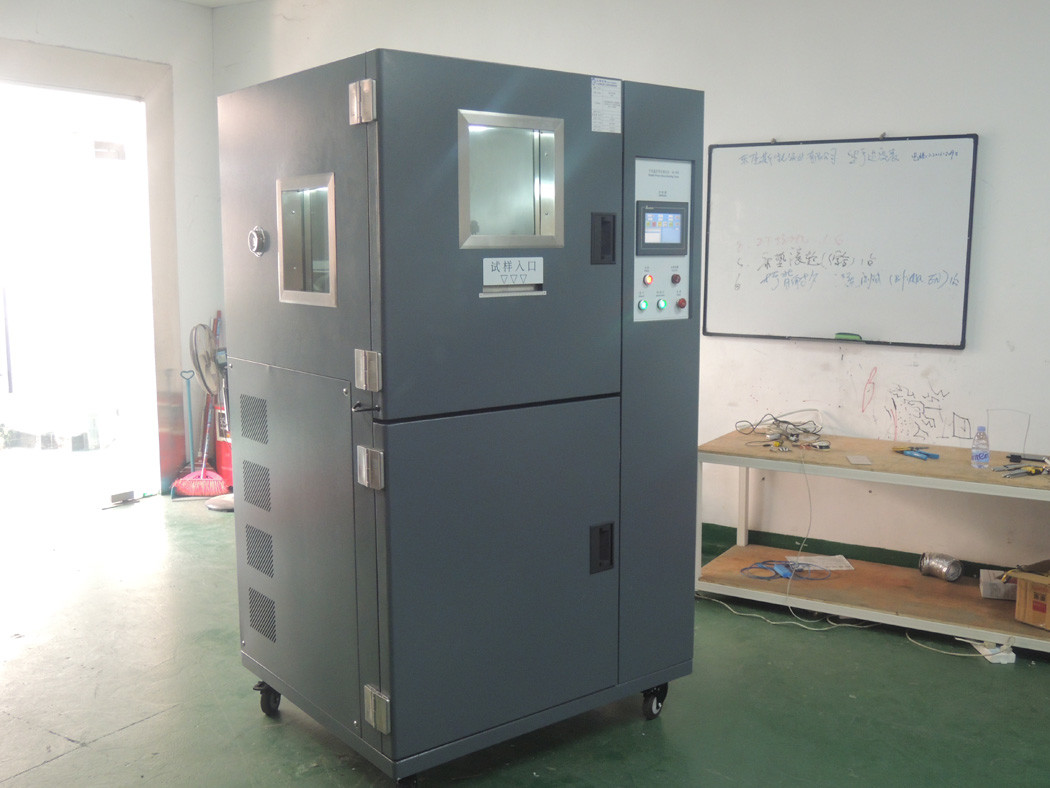

Impact Bending Test Equipment

Application
This test equipment is suitable for testing mobile phones, tablets and mobile phone batteries. In the normal daily use of the simulated sample, test the degree of bending and damage to the sample caused by the impact, and use the test result as the basis for improving the strength performance of the product.

Principle
Place two acrylic round rods at a certain distance horizontally to support the test sample. Place the impact head with a certain R angle on the sample. The weight of the specified weight is connected to the impact head through the iron chain, and the weight is lifted to the specified value. The impact height, the impact force generated by the instant release acts on the sample, and the bending angle and damage of the sample are recorded.

According to the standard:
This tester is made according to customer requirements.

Specifications
Sample: mobile phone, battery
Number of samples: 1 unit/time
Impact force sensor: 200KG, accuracy +/-0.5%
The impact weight is adjustable from 2.5 to 25kg, and the minimum adjustment weight is 2.5kg.
Support rod center span: 70mm-160mm adjustable
Impact height adjustment: 5mm-100mm adjustable
Impact head rounded corners 3mm/4mm/5mm/6mm
Lifting method Automatic lifting, fixed and release method is magnetic
Calibration board size 150mm long*80mm wide*7mm thick
Smoke exhaust manual exhaust, box exhaust aperture 100mm
Volume (WxDxH): 110x105x198cm
Weight (approximate) ≈500Kg
Air source 6kgf/cm^2 stable air source
Power :1500W
Power supply: 1∮ AC 220V 50Hz 15A
