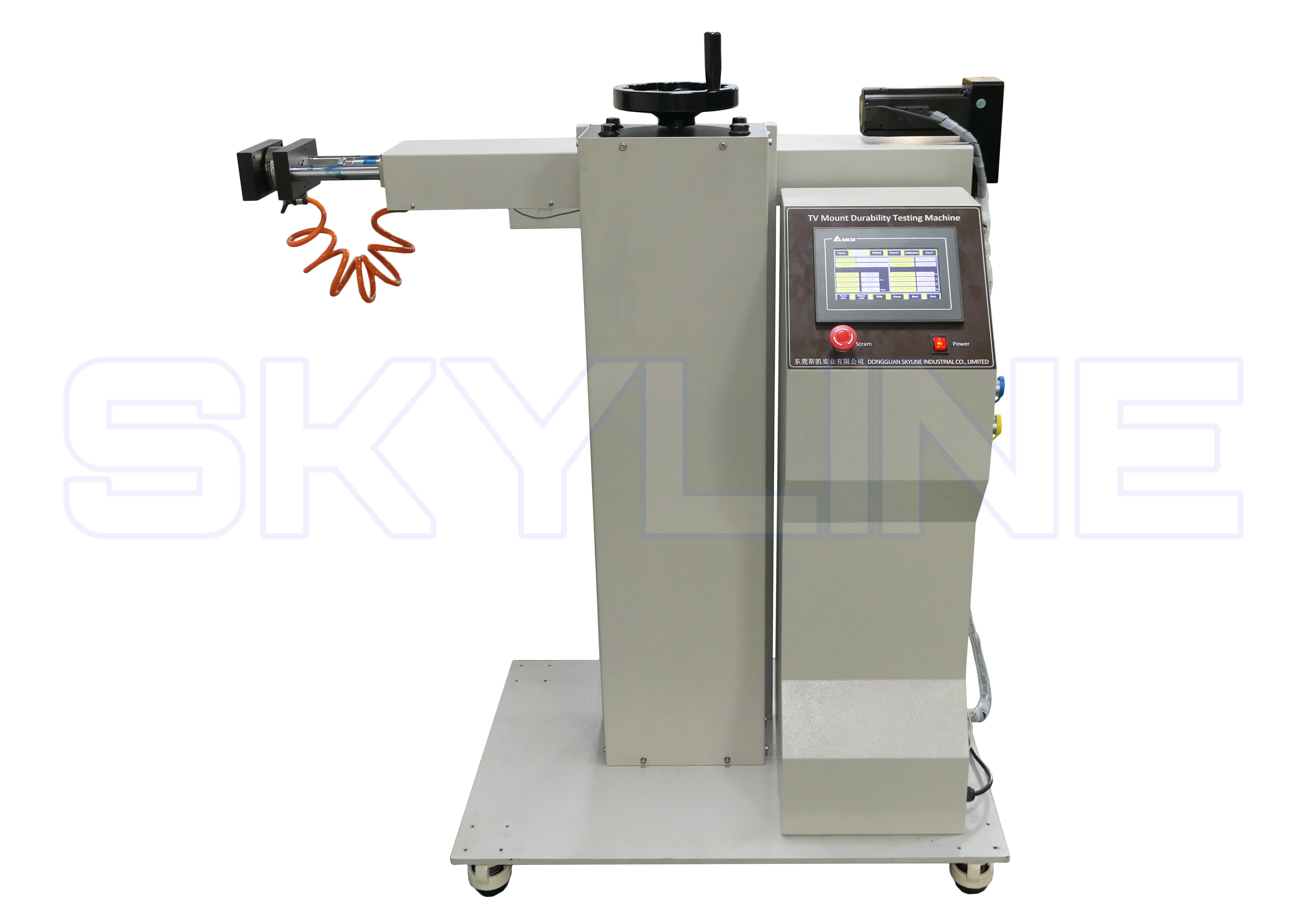

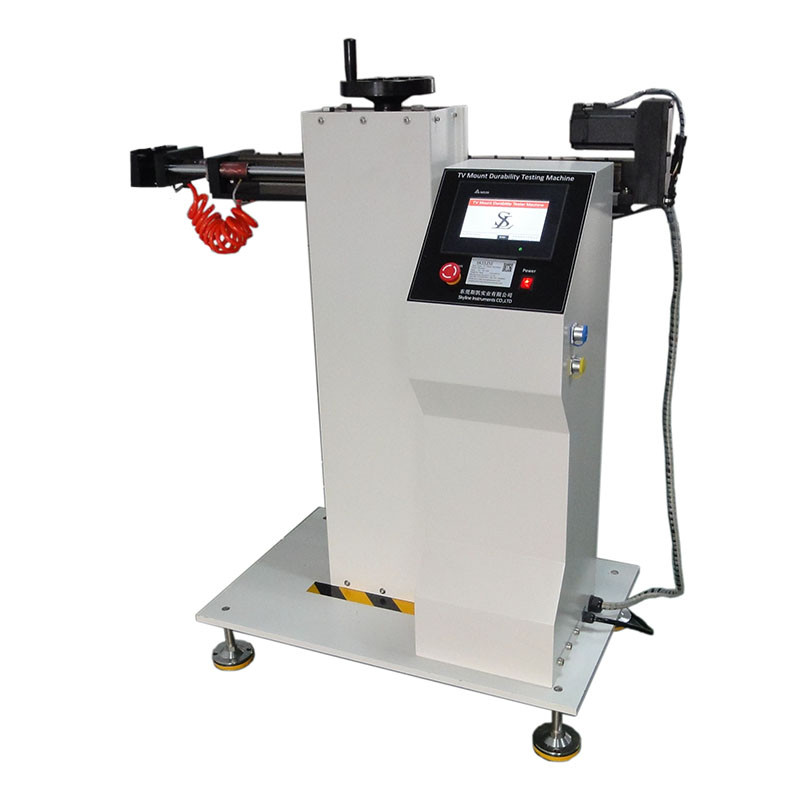

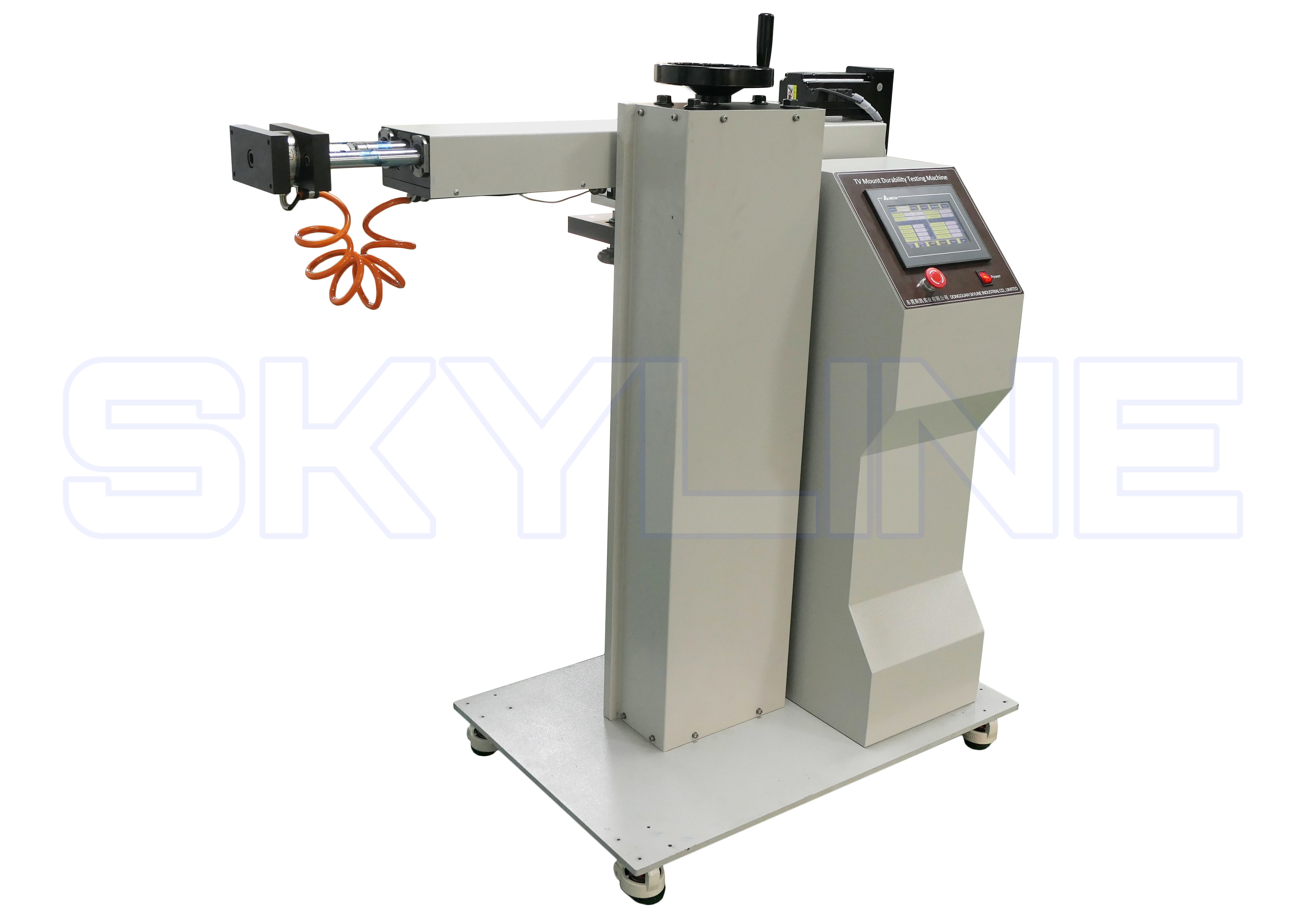

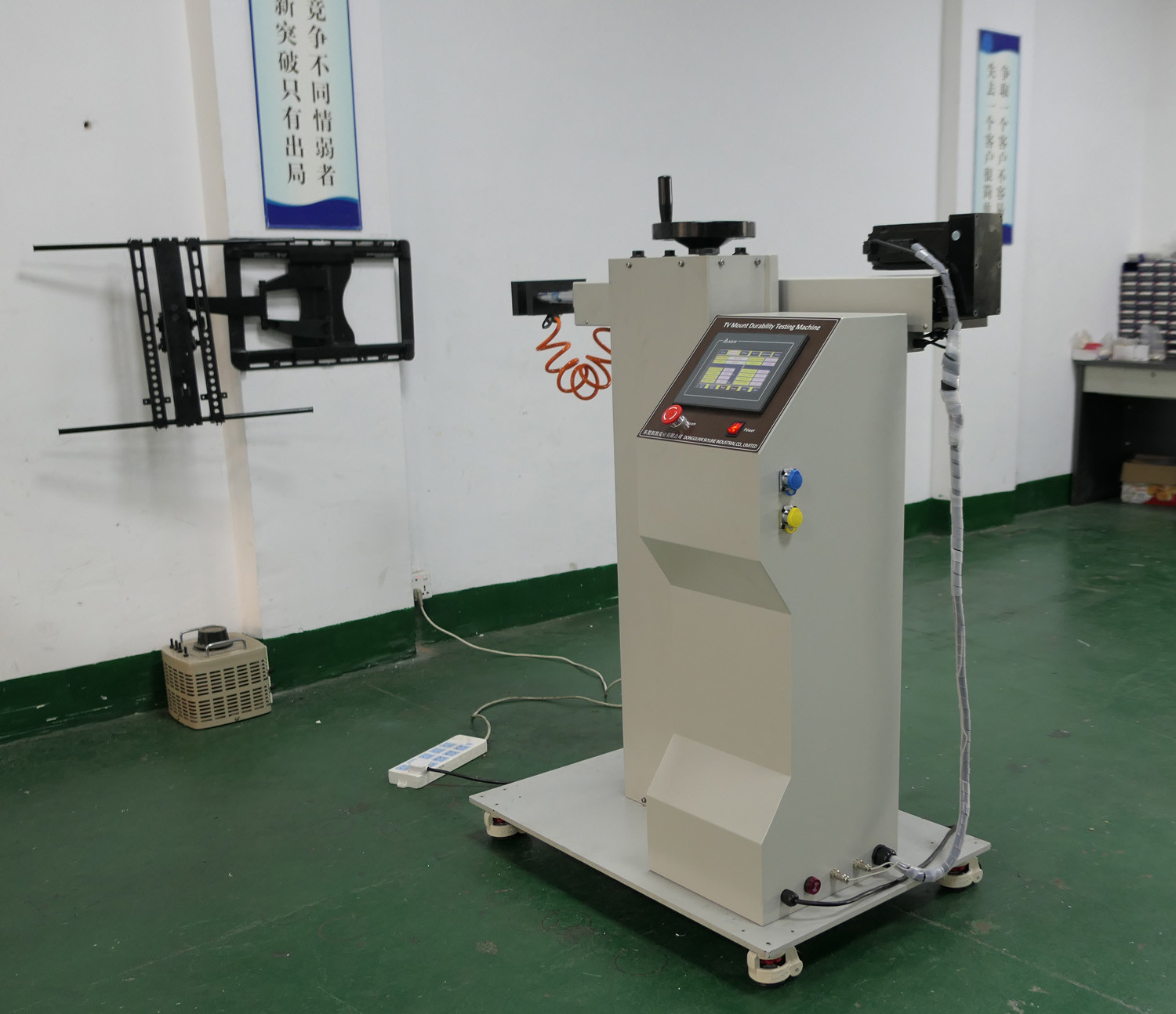

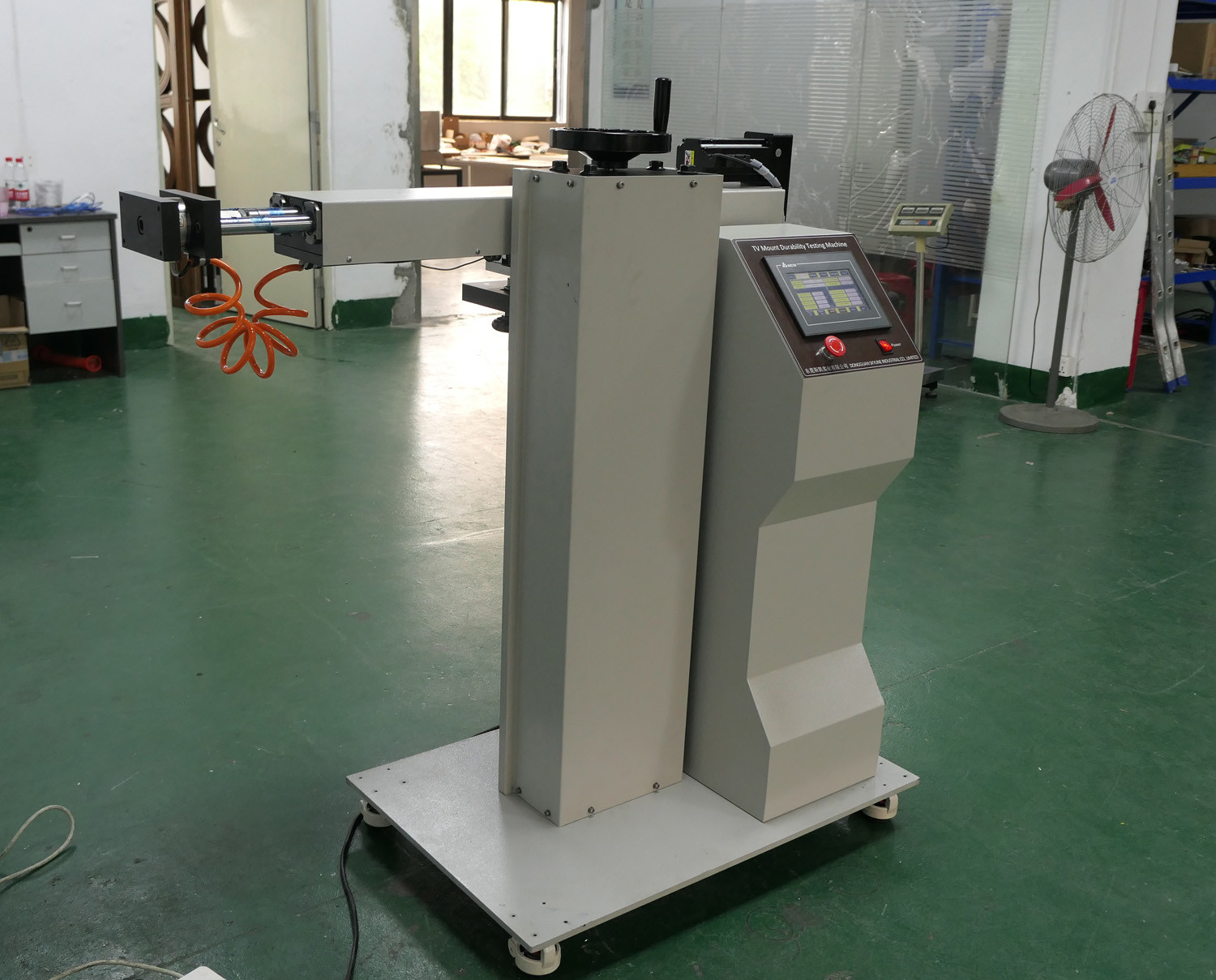

TV Mount Durability Test Machine
Purpose
This test machine is used to evaluate different type TV mount durability test machine
Principle
Simulation the daily use process of the analog TV mount, the TV mount hangs the weight of a certain weight, sets the stroke, pushes and pulls the TV mount back and forth, and checks whether it meets the quality requirements.
Functions
Handle wheel: can adjust the height according to the specimen specification
Electric actuator: make the sample back and forth by pushing and pulling, you can set the initial position of the trip and travel distance back and forth, set speed

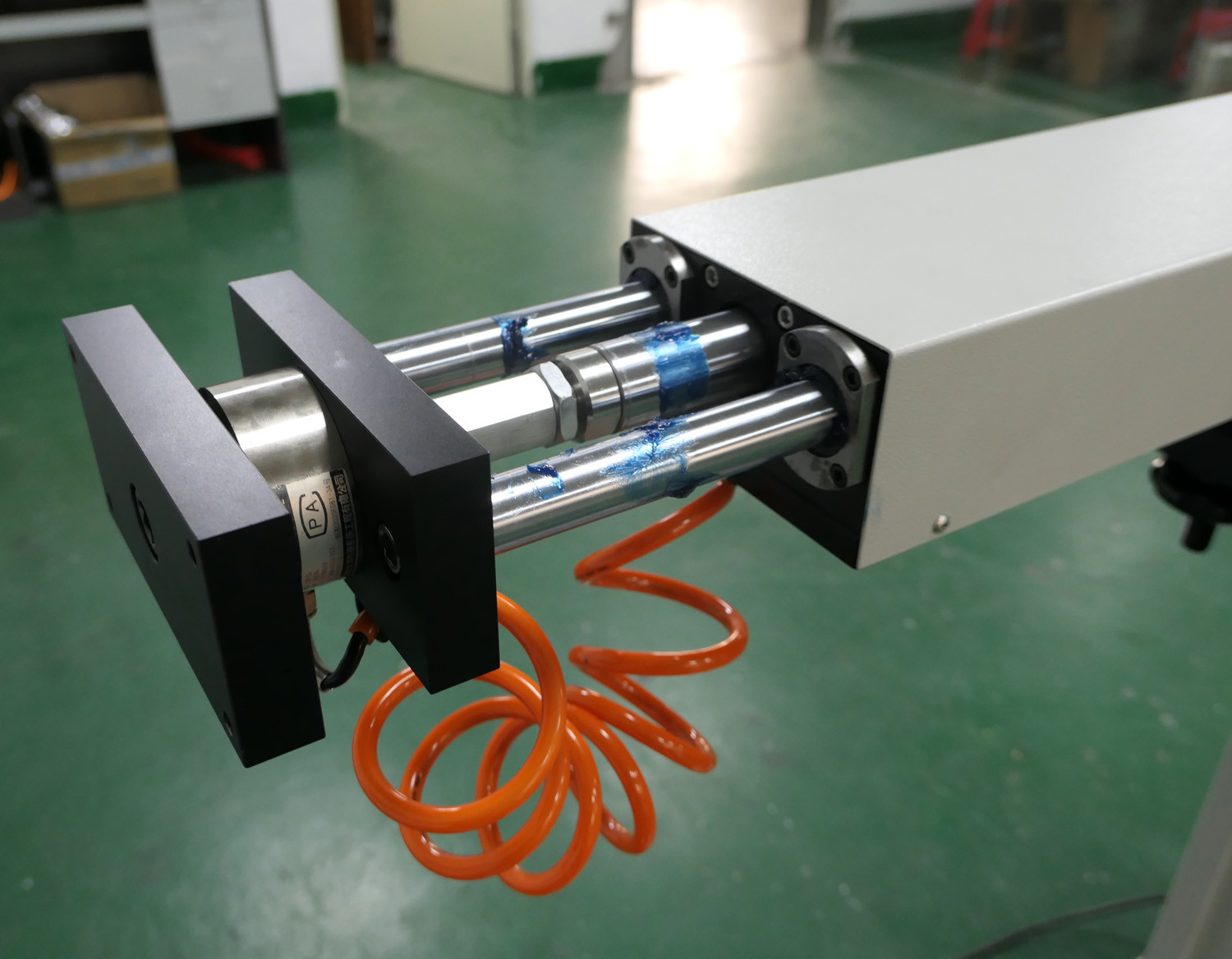

Force sensor: The real-time monitoring of the force value during the sample endurance process is carried out, and the super force value protection is carried out
Controller: set the test parameter, control the action of the machine
Emergency stop switch:In case of emergency, press the emergency stop
Power switch:turn on / turn off power of the machine
Technical parameters
| Capacity |
3000N |
| Force loading direction |
Horizontal |
| Loading method |
Fixed stroke,fixed speed |
| Force accuracy |
Dynamic ±1% |
| Force resolution |
1/1000 |
| Loading stroke |
0~31 in |
| Loading height |
20~40 in |
| Test speed |
Can be set(50~720 in/min) |
| Force control way |
closed-loop control |
| Driver |
Servo linear actuator |
| Control method |
PLC controlled |
| Dimension (WxDxH) |
50x24x53 in |
| Weight |
≈200Kg |
| Power Supply |
1∮ AC 220V 50Hz 5A |
