8L/Min 0-500pa Lab Testing Equipment Mask Gas Exchange Pressure Difference Tester

Place of Origin China
Brand Name SKYLINE
Certification CE
Minimum Order Quantity 1 unit
Packaging Details Plywood case
Delivery Time 30 working days
Payment Terms Western Union, T/T,
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Mask Gas Exchange Pressure Difference Tester Air Flow: 8L/min
Range Of Differential Pressure Sensor: 0～500pa The Breathable Diameter Of The Sample:: Ф25mm
Power Supply: 220V, 50Hz. Size And Weight: 600*300*400mm, 20KG
Highlight:

8L/Min Lab Testing Equipment

,

500pa Lab Testing Equipment

,

Gas Exchange laboratory testing equipment
Product Description

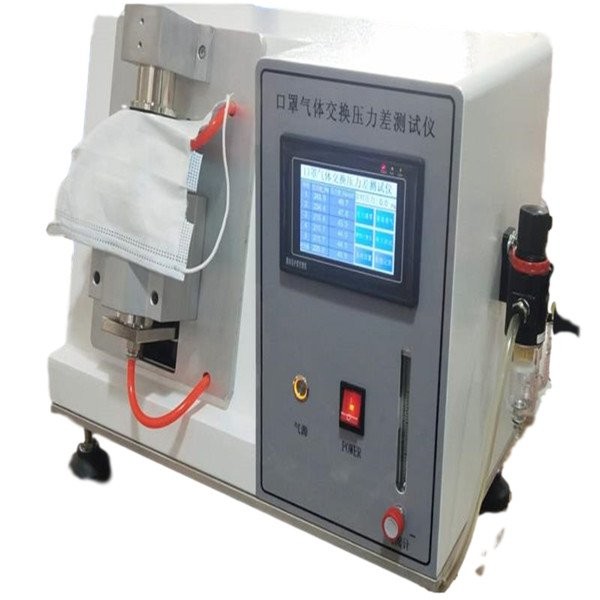

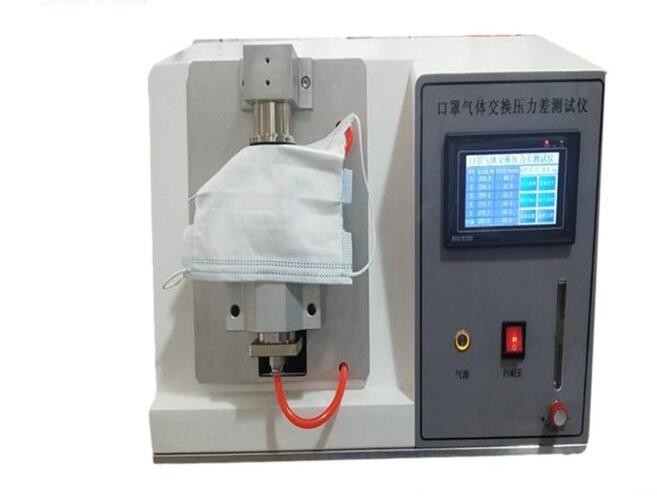

Mask Gas Exchange Pressure Difference Tester


Application
It is suitable for measuring the gas exchange pressure difference of medical surgical masks, and also can be used to measure the gas exchange pressure difference of other textile materials.


Instrument features
1. The suction air source is used as the power source of the instrument, which is not restricted by the space of the test site;
2. Equipped with a differential pressure sensor, which digitally displays the differential pressure on both sides of the sample;
3. The special sample holder ensures that the sample is firmly clamped.


Technical parameters
1. Air source: suction type;
2. Air flow: 8L/min;
3. Sealing method: end face sealing;
4. The breathable diameter of the sample: Ф25mm;
5. Range of differential pressure sensor: 0～500pa;
6. Display mode: digital display pressure difference;
7. Power supply: 220V, 50Hz.
8. Size and weight: 600*300*400mm, 20KG
