100CM2 8CM2 Water Permeability Tester For Medical Protective Clothing SKYLINE

Place of Origin China
Brand Name SKYLINE
Certification CE
Minimum Order Quantity 1 unit
Packaging Details Plywood case
Delivery Time 30 working days
Payment Terms Western Union, T/T,
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Water Permeability Tester For Medical Protective Clothing Accuracy:: 0.2%FS
Sample Chuck Area: 100CM², 100CM², 8CM² Resolution: 1,3,8
Power Supply: AC 220V±10% 50HZ 100W Weight: 50KG
Highlight:

100CM2 water permeability tester

,

8CM2 water permeability tester

,

SKYLINE water permeability tester
Product Description

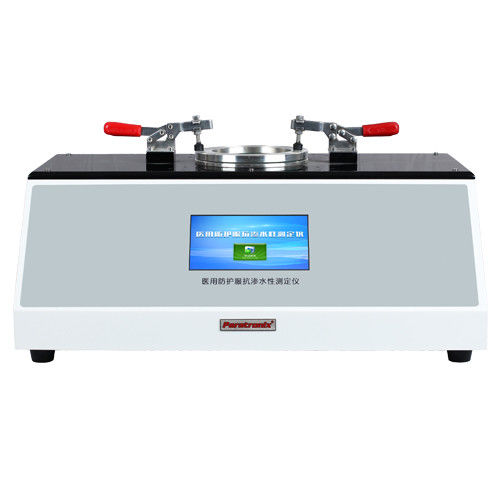

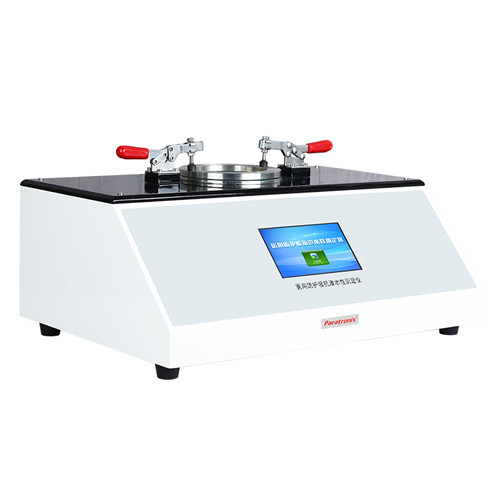

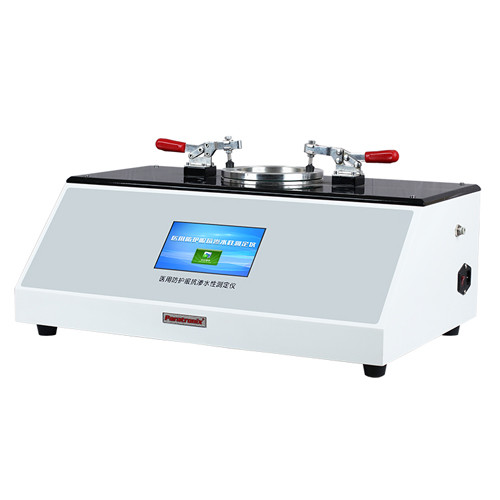

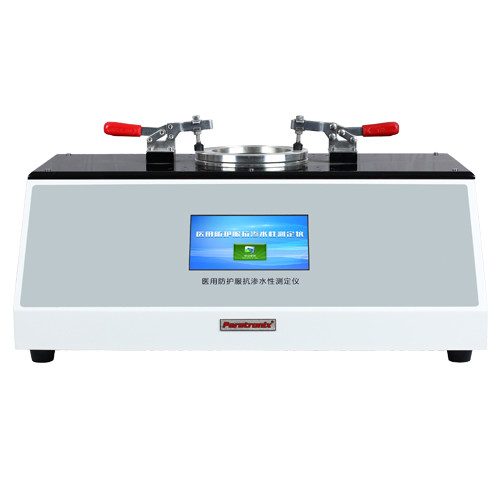

Water Permeability Tester for Medical Protective Clothing



Application

It is used to measure the water permeability of medical protective clothing and compact fabrics, such as canvas, tarpaulin, tarpaulin, tent cloth, rainproof clothing cloth, etc.



Executive standard
GB19082-2009 Technical requirements for disposable medical protective clothing 5.4.1 Water impermeability GB/T 4744-1997 Determination of textile fabric water impermeability Hydrostatic pressure test GB/T 4744-2013 Fabric water permeability tester



Technical parameters
Measuring range: 500PA-50KPA, 500PA-200KA, 5KPA-500KPA
Accuracy: 0.2%FS
Resolution: 1,3,8
Water pressure rising rate: 1KPA-20KPA, 1KPA-30KPA, 1KPA-100KPA
Sample chuck area: 100CM², 100CM², 8CM²
Water pressure rise rate: digital setting
Working mode: pressurization method-constant pressure timing-constant pressure timing-winding relaxation-water seepage method
Display mode: highlight blue screen Chinese display
Power supply: AC 220V±10% 50HZ 100W
Appearance size of the instrument: 550×400×500MM
Whole machine weight: about 50KG
