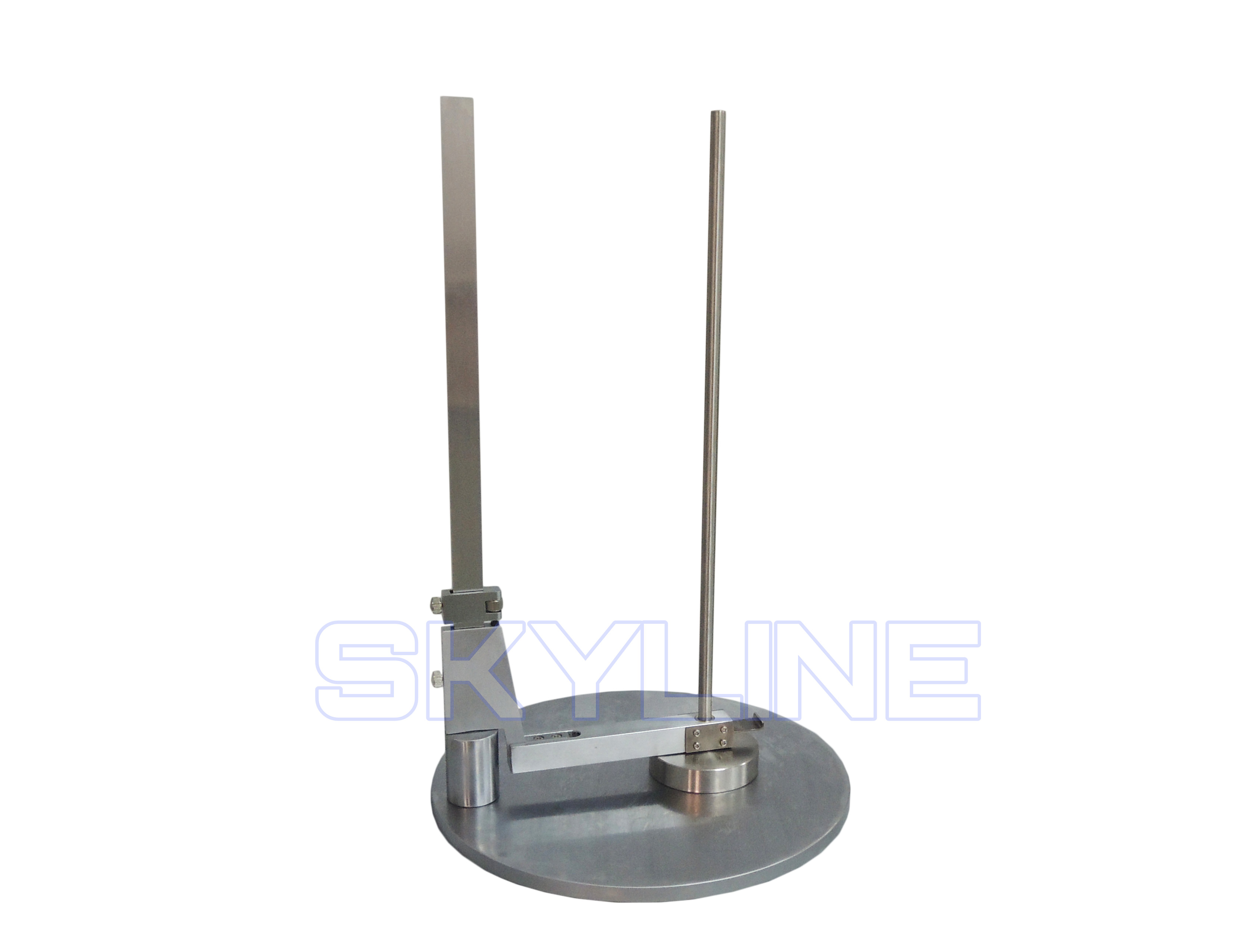

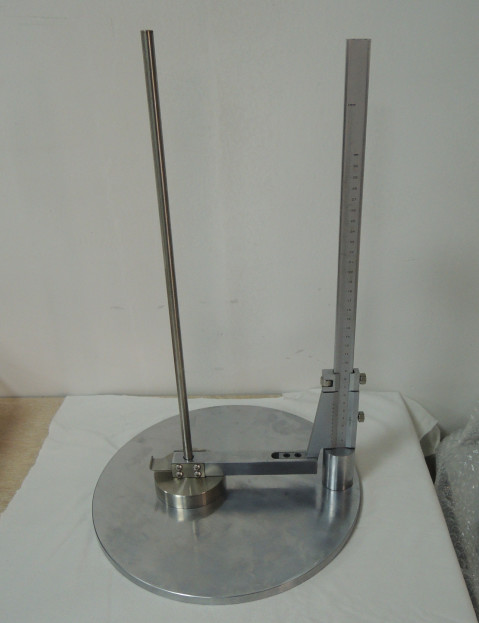

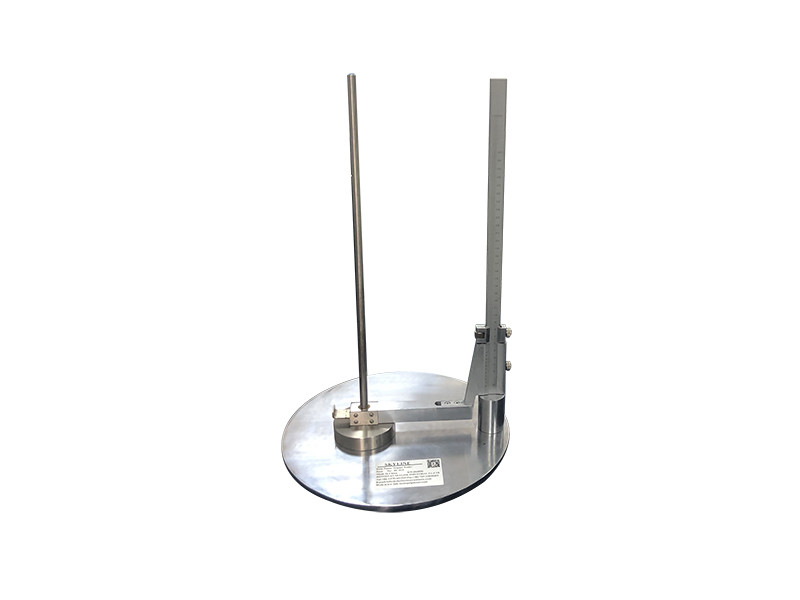

EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine

Place of Origin CHINA
Brand Name SKYLINE
Certification CE
Model Number SL-S11
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Carton box
Delivery Time 5 working days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: EN71 Impact Tester Standards: ISO 8124-1 EN-71

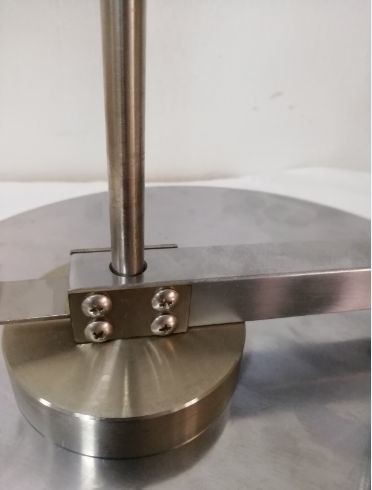

Impact Hammer Weight: 1kg Impact Hammer Diameter: 80.00mm
Adjust Height: 0-200mm Warranty: 18 Months
Highlight:

abrasion testing equipment

,

physical testing equipment
Product Description

Stainless Steel EN71 -1 1kg Impact Tester Toys Testing Equipment



Product Information

To simulate the mechanical damage through an impact action likely to be performed by a child. Assessment of sharp edges, sharp points and small parts may be carried out after impact. With metric imperial unit height dictate rule



Application

Used to test toy parts protection devices (such as transparent material protection cover / helmet / hat / goggles, etc.)



Specifications

 Dimension  300(l) x300(w) x16(h) mm
 Adjust height  0-200mm
 Impact hammer diameter  80.00mm
 Impact hammer weight  1Kg
 Material  steel, surface chrome plating


Testing Standards

EN 71-1998 8.7 EN1400,ISO8124



Method of use and judgment result
1. Place the toy at the weakest position on the surface of a horizontal steel plate;
2. The metal block with a mass of 1±0.02kg and a diameter of 80±2mm is freely dropped from the height of 100±2mm onto the toy;
3. Repeat again.
4. Judgment: Punctuation, sharp edges, small objects or bursts are considered unqualified after the test.

EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine
