Lab 50kg Load Button Press Checker 220V 50Hz With 4 Stations

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-T112
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 35 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Button Press Test Machine Table Load: 50kg
Test Station: 4 Stations Action Stroke: 10mm
Speed Adjustment: 10 ~ 60 Times Power Supply: 220V / 50Hz
Highlight:

Button Press Checker 220V 50Hz

,

50kg Load Button Press Checker

,

Lab Testing Equipment 220V 50Hz
Product Description

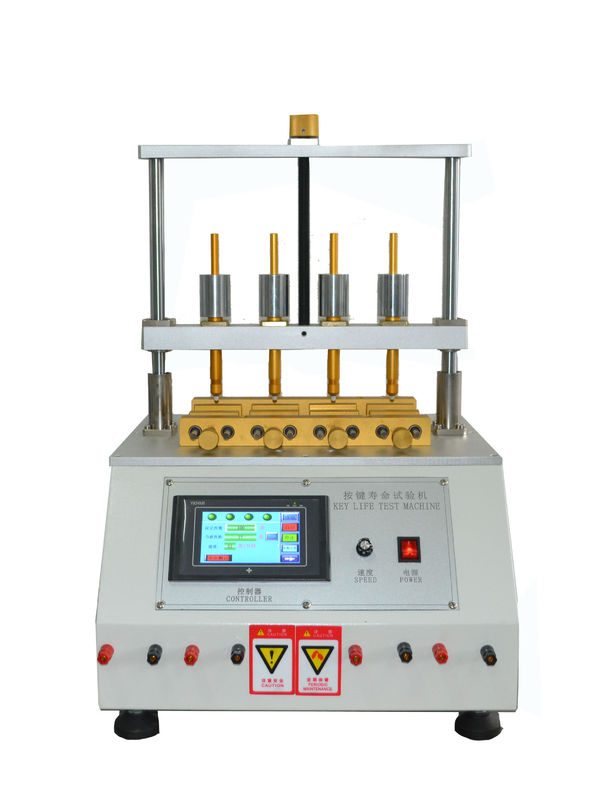

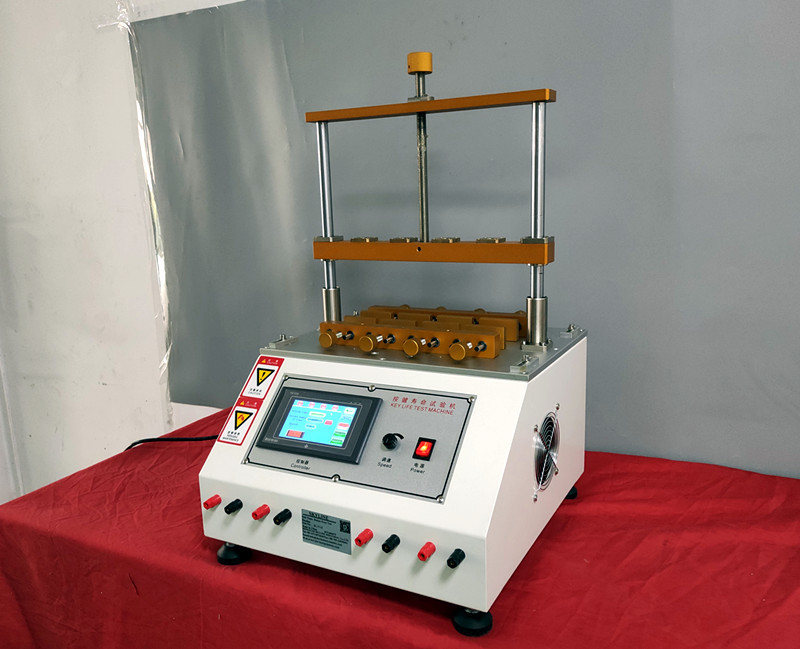

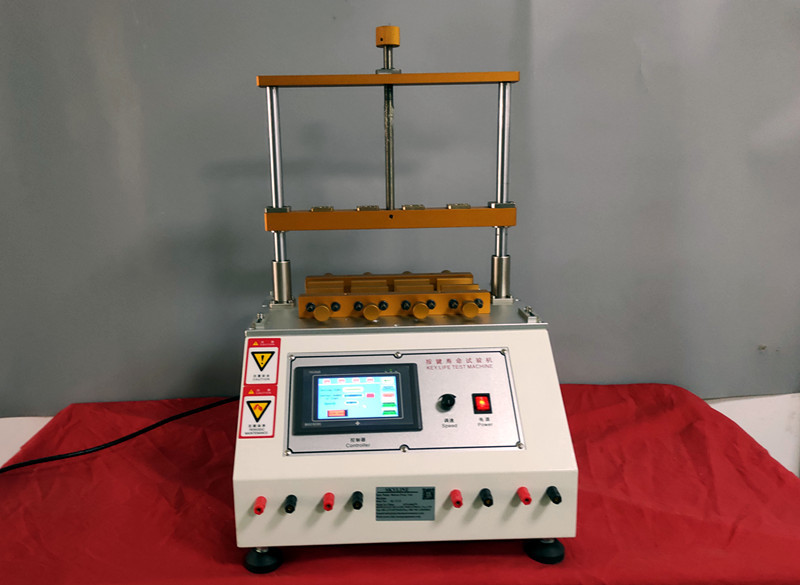

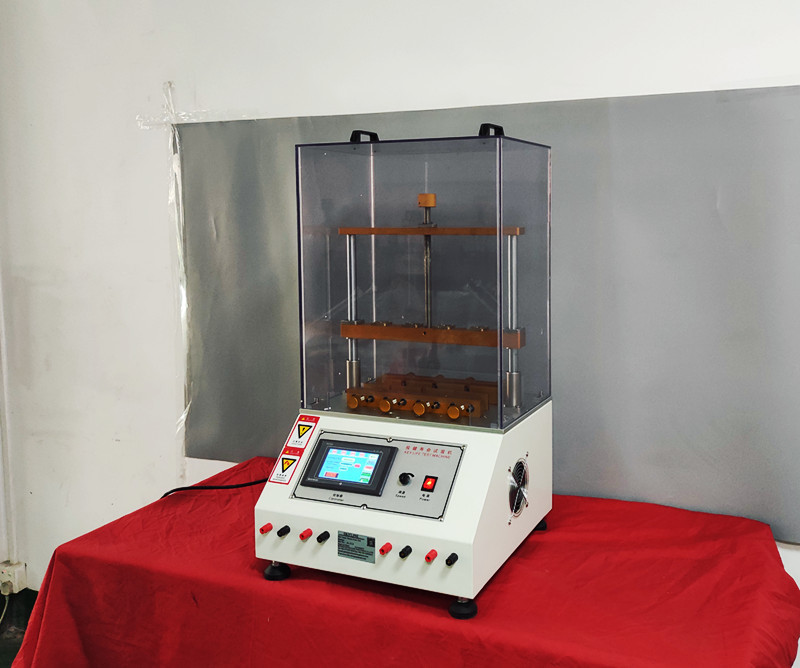

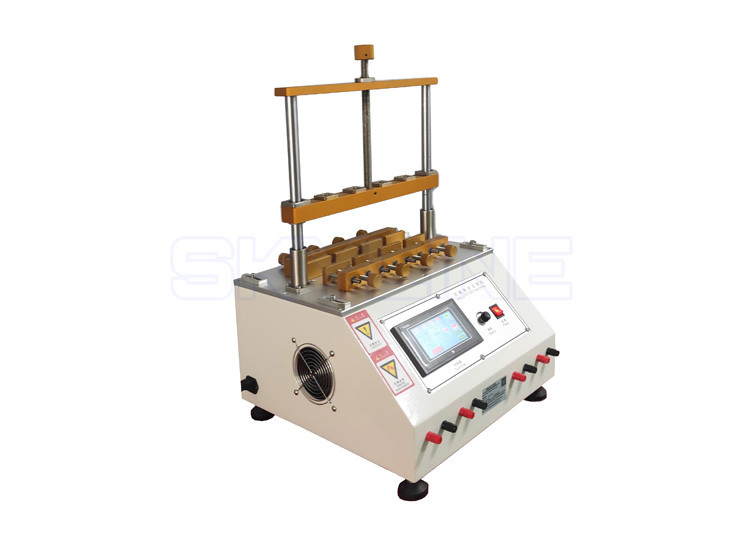

Button Press Test Machine With 4 Stations



Application

This machine can test the endurance life test of NOTEBOOK (mobile phone, PDA) buttons and various buttons and switches. It is especially suitable for the fatigue test of silicone rubber buttons. It has adjustable speed, set the number of times, and after the number of times is reached, the data can be kept. The number of tests can be tested simultaneously. Several products can be tested at the same time (each product can be tested at multiple points). Set different pressures and different levels.



Principle

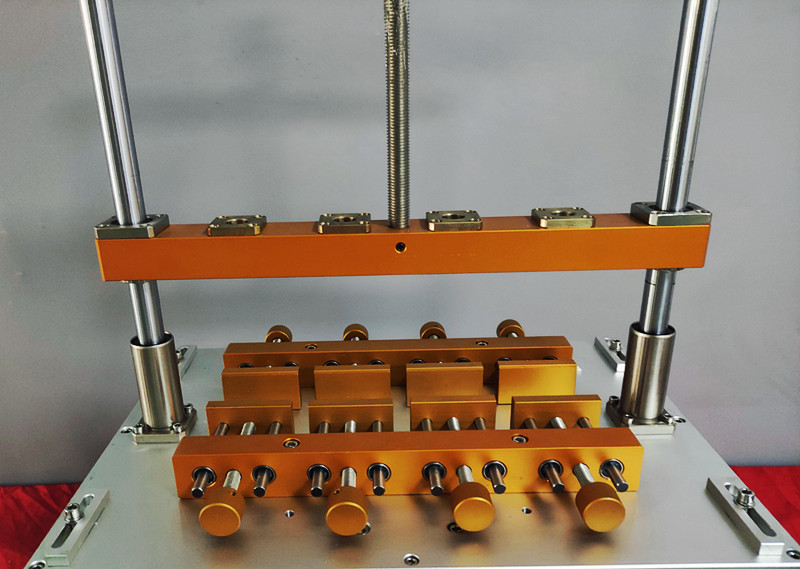

This machine is a key life testing machine. It uses a motor drive eccentric structure to move the worktable up and down, so that the keys or keyboard and the probe can move relative to each other.



Technical parameters

 Table load  50kg
 Test station  4 stations
 Action stroke  10mm
 Test times  0-999999 (shutdown times can be set)
 Superimposed load  10g, 20g, 50g, 100g, 200g
 Speed adjustment  10 ~ 60 times / min adjustable
 Speed display  directly displayed on the touch screen
 Transmission mode  the motor drives the eccentric mechanism to act
 Motion mode  vertical motion
 Lifting function  manually adjust the height of the measuring rod
 Appearance dimension  450 * 350 * 700mm
 Working power supply  220V / 50Hz
 Machine weight  About 50kg



How do you test the endurance life test of buttons are working?

Observe the endurance of the keys by repeatedly clicking them.
