Paperboard Bending Stiffness Tester Touch Screen Version

Paperboard Bending Stiffness Tester (Touch Screen Version)

Paperboard Bending Stiffness Tester

Product Introduction

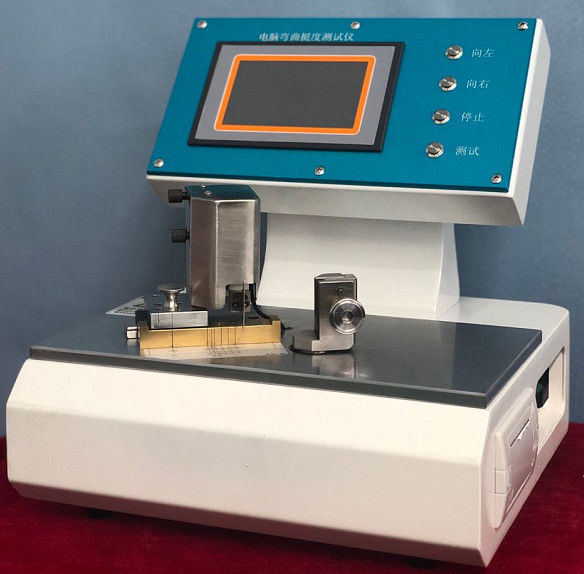

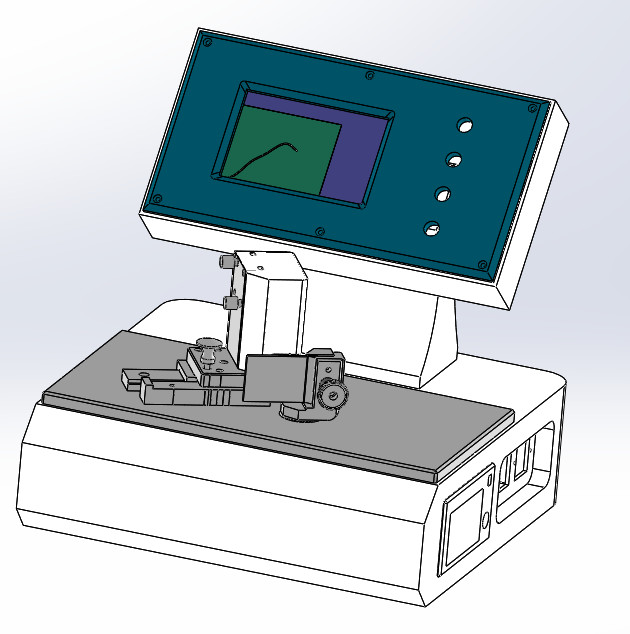

The computer stiffness tester is a multifunctional intelligent computer stiffness tester, which is suitable for measuring the bending stiffness of paper, cardboard and other strength sheet nonmetallic materials with thickness less than 2mm.
The testing angle of the instrument can be arbitrarily set between (1 ~ 90) and the testing time can be arbitrarily set within the specified range (3s ~ 30s). With automatic zero-setting test function, it is the first full-automatic stiffness tester in China that uses color touch screen as man-machine interface. It can display stiffness and time curve in real time, and the touch screen is simple and convenient to operate.
This instrument has the functions of testing, displaying, memorizing, counting and printing various parameters included in the standard, and provides scientific data analysis for the detection of cardboard bending stiffness. The test results are exactly the same as those of Tiber's method and electronic method. The test results are calculated intelligently by computer, and two test units can be selected: mN or MN. M.

Product features
1. After the test, return to the starting position at a high speed, and the return speed can be arbitrarily set between (1 ~ 12)
2. 7.5 and 15 stiffness test (any setting between (1 ~ 90))
3. The test time can be set at any number between (3 ~ 30) s
4. The change of testing angle is controlled by the motor fully automatically, which improves the measuring efficiency and reduces the human influence.
5. It can be tested with six bending lengths: 50mm, 25mm, 20mm, 15mm, 10mm and 5mm (0.5mm)
6. With automatic zero adjustment function, it is unnecessary to manually lean against the sample before testing
7. It has the functions of measurement statistics and printing, and the measurement time can be set
8. The man-machine interface adopts color touch screen, Chinese and English operating systems, and can communicate with host computer software (sold separately).s.

Standards

GB/T 23144  GB/T 22364   ISO 5628   ISO 2493

Technical parameter
