IS 16805 : 2018 Nail Penetration Test Apparatus

Place of Origin China
Brand Name SKYLINE
Certification CE
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 7-10 working days
Payment Terms T/T, Western Union,
Supply Ability 5 pcs / month
Product Details
SKYLINE: IS 16805: 2018 Nail Penetration Test Apparatus Standard: IS 16805: 2018, MT/T 1051 SAE ,QC/T473/744
Clip Distance: 200mm Drive: Hydraulic Drive
Power Supply: 1ф220V , 50HZ
Highlight:

IS 16805 Nail Penetration Test

,

Nail Penetration Test Apparatus
Product Description

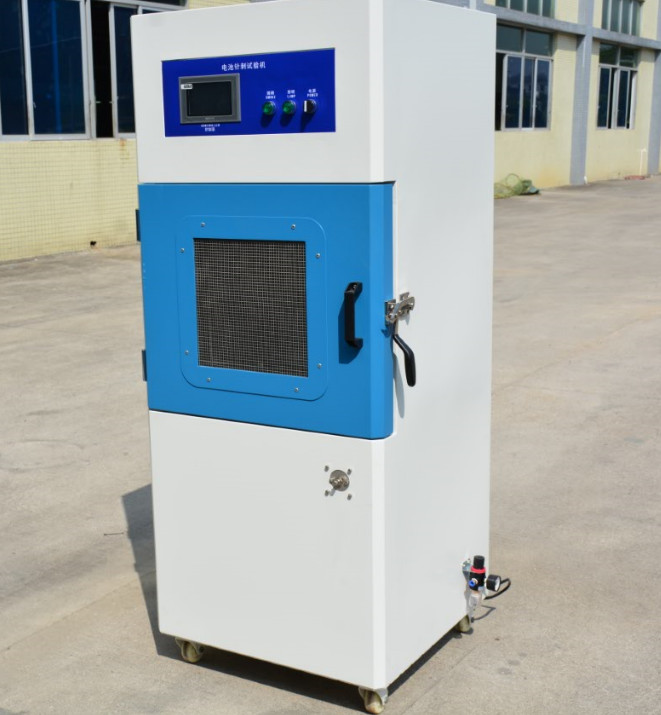

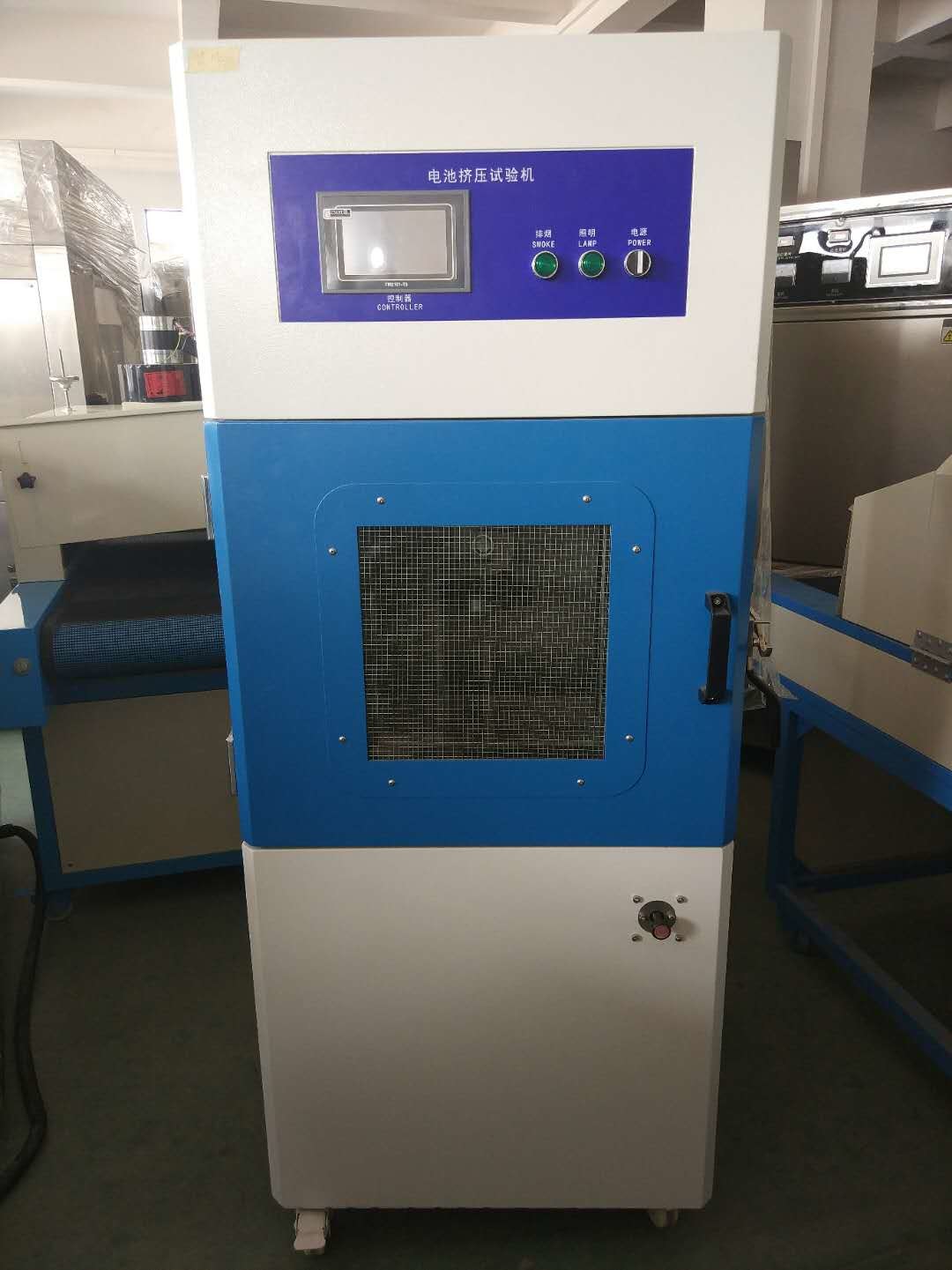

IS 16805: 2018 Nail Penetration Test Apparatus



Nail Penetration Test Apparatus



Description:

The test should be carried out under the ambient temperature coupler with a thermocouple battery (the contact of thermoelectric is fixed on the large surface of the battery) is placed in a fume hood. Use a ф2-ф8mm non-corrosion steel needle to pierce the center of the largest surface of the battery at a speed of 10mm/s-40mm/s, and keep it for random time



Parameters:

High temperature resistant steel needle ф2mm—ф8mm, Length 100mm
Tip distance from bottom The battery plane is 200mm
Clip distance 200mm
Speed 10—40mm/s,from the direction perpendicular to the battery plate (the pin stays in the battery)
penetrating power 150~200kg
Display Pressure sensing LCD display
Range 200mm
Drive Hydraulic drive
Safe Made into box-type equipment device explosion-proof, fire prevention, corrosion resistance, easy to clean
Puncture space 500*500*445(mm)
Inner box material Stainless steel and in the box 1/3 place with teflon sol cloth, high temperature resistance, corrosion resistance, insulation and easy to clean
Weight About 100kg
Power supply 1ф220V , 50HZ



Standard:

IS 16805: 2018, MT/T 1051 SAE ,QC/T473/744



Catalogue -Nail Penetration Test apparatus-SKYLINE...



What is the most important battery test?

Load Bank Testing (Discharge Testing)
This is the most comprehensive battery test and the only true examination that determines the actual capacity of the battery string. Load bank testing audits the batteries under both normal and peak load conditions.
Are lithium NMC batteries safe?

A typical NMC/LCO battery can enter thermal runaway condition as low as 150 Celsius. All Li-ion batteries are safe, but LFP is the safest Li-ion battery chemistry available
