Touch Screen Fracture Strength Testing Machine Semi Automatic

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE, calibration certificate

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: T/T, Western Union, MoneyGram

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Touch Screen Strength Testing Machine, Semi Automatic Fracture Strength Testing Machine


Sensing Method:	Pressure Transducer	Indicating Method:	SVC-E
Oil Pressure Gauge:	0～35㎏/㎝2	Motor:	AC220V　1/4HP
Power Source:	1∮,AC220V,1A	Power And Water Consumption:	About 300W

Sensing Method:	Pressure Transducer
Indicating Method:	SVC-E
Oil Pressure Gauge:	0～35㎏/㎝2
Motor:	AC220V　1/4HP
Power Source:	1∮,AC220V,1A
Power And Water Consumption:	About 300W

Product Description

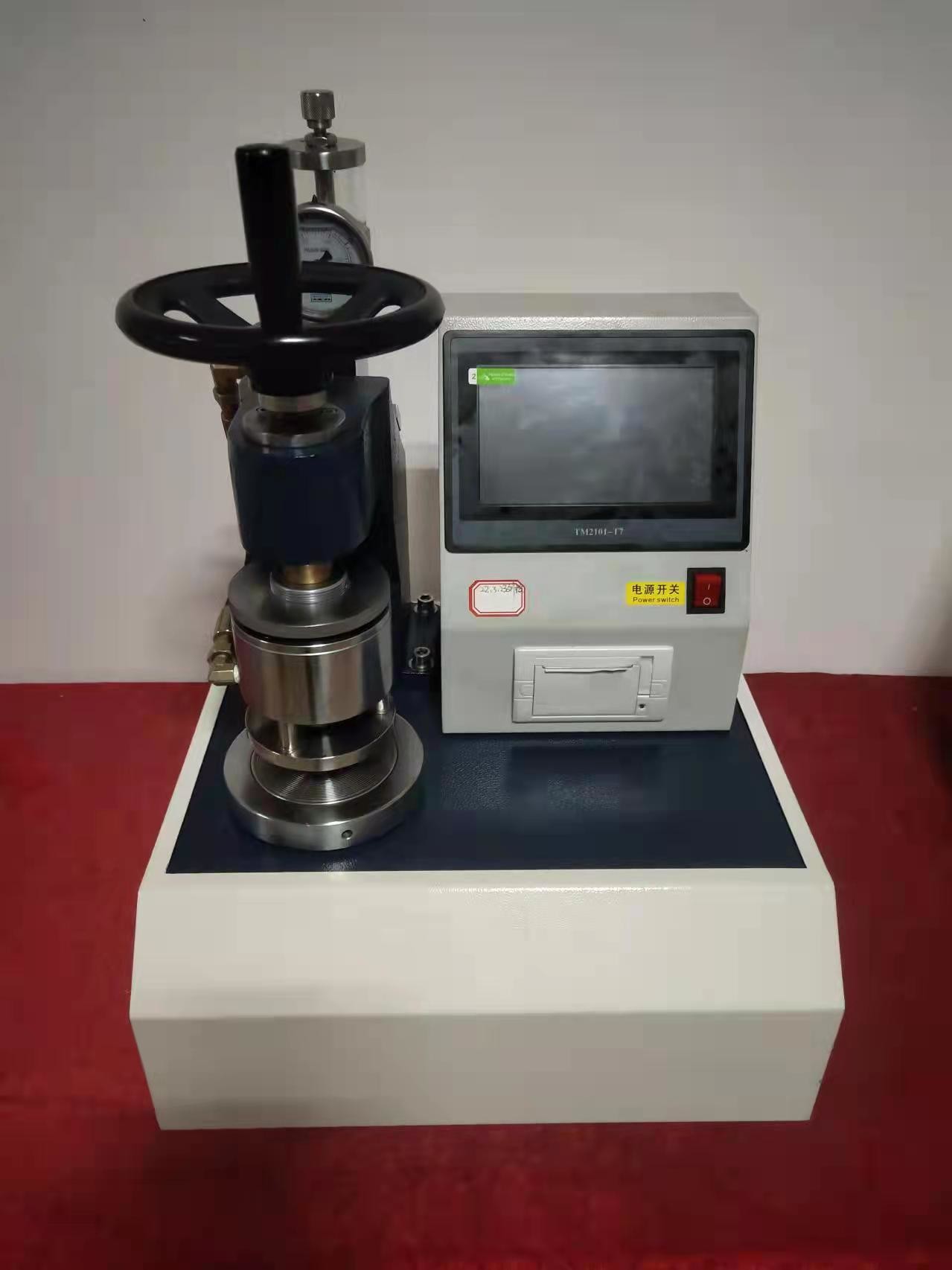

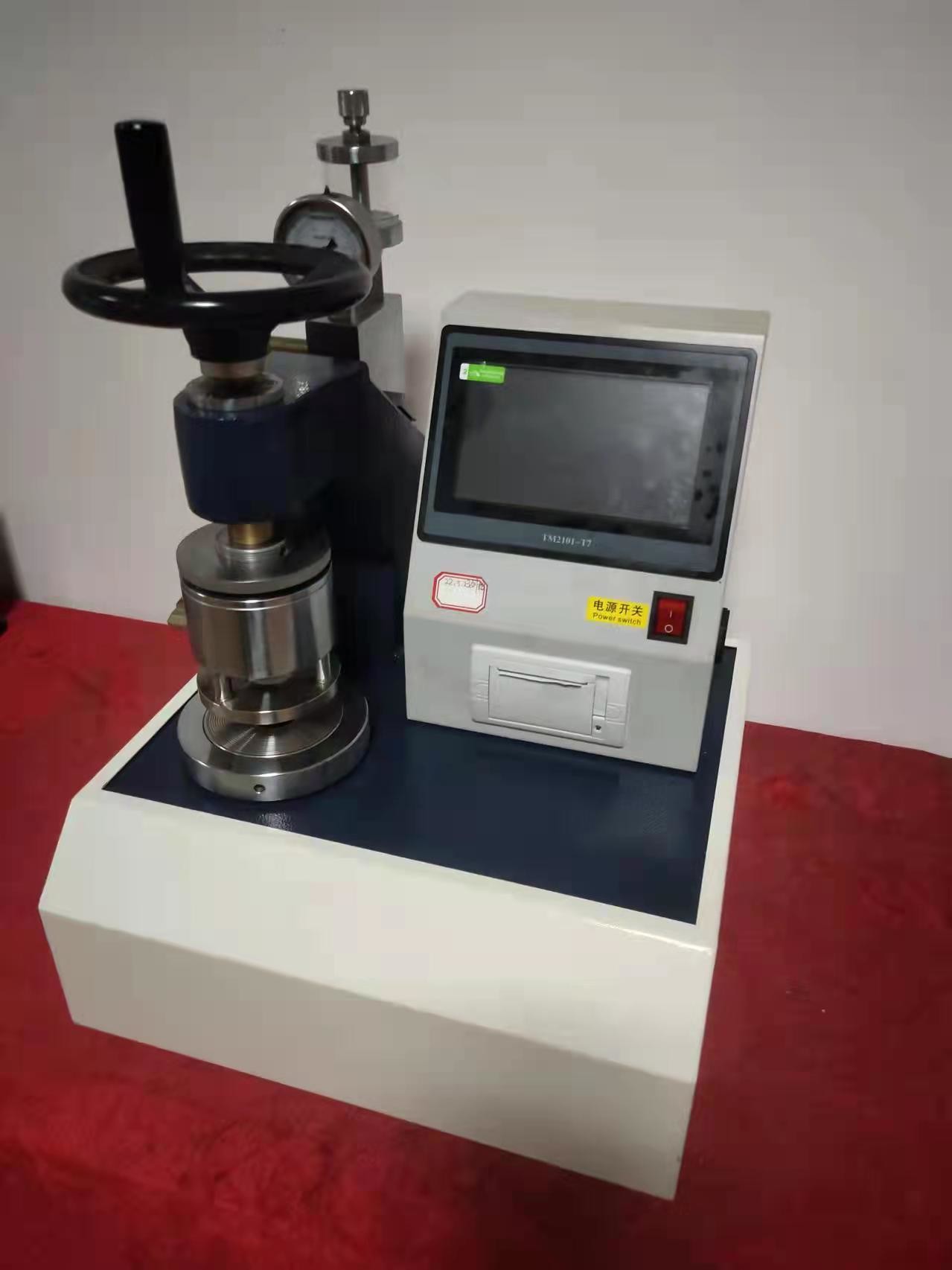

Touch screen semi-automatic fracture strength testing machine

Use:

Fracture Strength Testing Machine is used to testing the fracture strength of corrugating medium,corrugating board,carton and graphic carton.

Product Introduction:

The fracture strength testing machine adopts signal to transmit pressure, and automatically retains the maximum fracture strength value when the test material is broken.

The test piece is placed on the film, clamped with the test piece, and then evenly applied pressure, so that the sample and the film will bulge together , until the sample fracture.
The maximum hydraulic pressure applied is the bursting strength value of the test piece

Standard:

GB/T6545,TAPPI-T403,JIS-P8112,L1018,L1004

Parameters:

Items			Specification
Sensing method			Pressure transducer
Indicating method			SVC-E
Capacity(select)	High voltage		0～80㎏/㎝2(accuracy 0.5kg/cm2)
Oil pressure speed			(170±10)ml/min
Clamp ring diameter		super-ring	High voltage Φ31.5mm
		lower- ring	High voltage Φ31.5mm
Oil pressure gauge			0～35㎏/㎝2
Motor			AC220V　1/4HP
Volume			About 53㎝×23.5㎝×57㎝
Weight			About 65kg
Power source			1∮,AC220V,1A
Power and Water consumption			About 300W

Touch Screen Fracture Strength Testing Machine Semi Automatic 0
