Professional Environmental Test Chamber UV Lamp Tester With Automatic Sprinkler Function

Name: Professional Environmental Test Chamber UV Lamp Tester With Automatic Sprinkler Function
Brand: SKYLINE
SKU: SL-E08
Rating: 4.7 (130 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-E08

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 10 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                uv accelerated weathering tester, environmental testing machine


SKYLINE:	UV Light Accelerated Weathering Tester	Irradiation Tube:	UVA-340 8 Each Side Of A Total Of 4 Sides
Material:	Internal Material Is Stainless Steel Plate, External Material Is Plastic Spray.	Lamp:	8 UVA Or UVB Lamps
Test Chamber Space:	450 × 1170 × 500mm	Dimension:	550 × 1300 × 1480mm

SKYLINE:	UV Light Accelerated Weathering Tester
Irradiation Tube:	UVA-340 8 Each Side Of A Total Of 4 Sides
Material:	Internal Material Is Stainless Steel Plate, External Material Is Plastic Spray.
Lamp:	8 UVA Or UVB Lamps
Test Chamber Space:	450 × 1170 × 500mm
Dimension:	550 × 1300 × 1480mm

Product Description

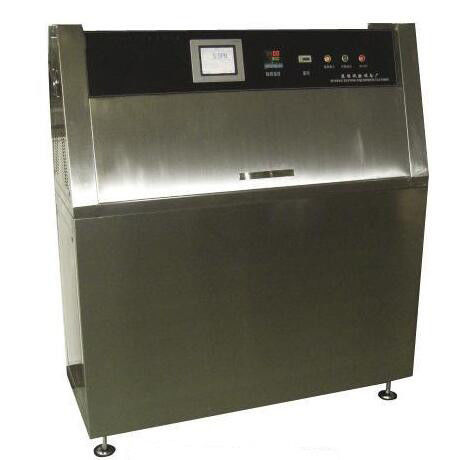

Enviromental Test Chamer UV Accelerated Weathering Tester

Product introduction of environmental test chamber

(UV), which is used to control the damage of the material, such as discoloration, brightness, strength, cracking, peeling, pulverization, oxidation, etc., in combination with temperature, High temperature, high humidity, condensation, dark rain cycle and other factors, while the synergies between ultraviolet light and moisture makes the material a single light resistance or a single ability to reduce or failure of wet resistance, which is widely used for material resistance Climate performance evaluation, equipment has to provide the best sun UV simulation, the use of low maintenance costs, easy to use, the equipment used to control the automatic operation, the test cycle of high degree of automation, light stability, test results, high reproducibility.

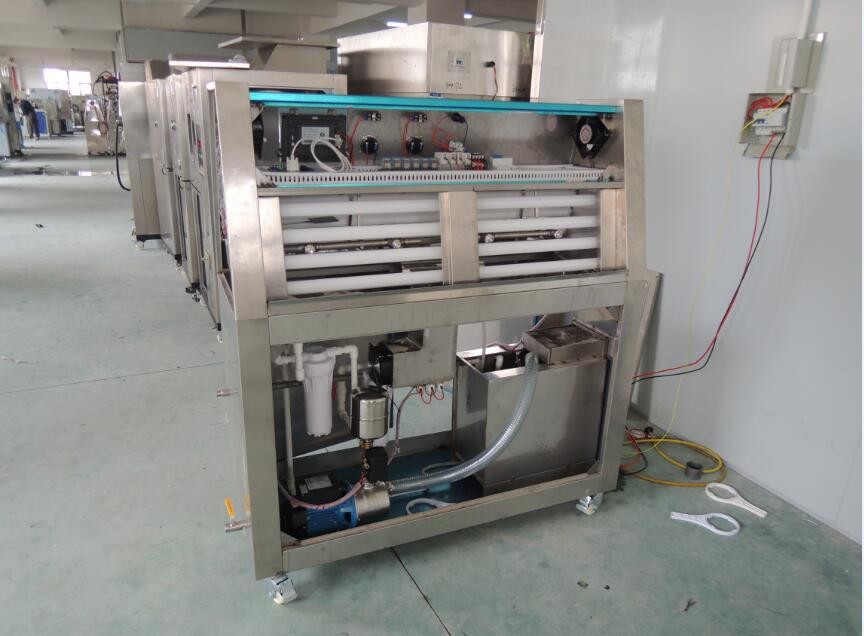

Structural material

Test chamber space	450 × 1170 × 500mm
Dimensions	550 × 1300 × 1480mm
Unit material	304 stainless steel inside and outside
The sample rack	aluminum frame frame as the board
Control device	RKC intelligent controller
Irradiation tube	UVA-340 8 each side of a total of 4 sides

power leakage circuit breaker control circuit overload short-circuit alarm, over-temperature alarm, water protection

Technical parameters

The temperature range	RT +10 ℃ ~ 70 ℃
The humidity range	≥ 90% RH
The temperature uniformity	± 1 ℃
The temperature fluctuation	± 0.5 ℃
The center distance of the lamp	70mm
The distance between the test object and the lamp	50 ± 3mm
Lrradiance	1.0W / m2 adjustable
Light, condensation, spray test cycle	adjustable
Lamp	L = 1200 / 40W, 8 (UVA service life of more than 2000h)
The controller	RKC intelligent controller
Temperature control mode	PID self-integer SSR control
The standard specimen size	75 × 290 × 120mm (special specifications need to be described in the contract)
Sink water depth	25mm automatic control
Effective irradiation area	900 × 210mm
UV wavelength	UVA range of 315-400nm
Test time	0 ~ 999H (adjustable)
Irradiation blackboard temperature	50 ℃ ~ 70 ℃
The standard sample rack	24 pay
The unit has an automatic sprinkler function
