SL - E11 Box Compression Tester With Statistics And Print Function Easy Operation

Place of Origin China
Brand Name SKYLINE
Certification ASTM D6007,ASTM D5116,ASTM D6330
Model Number SL-E11
Minimum Order Quantity 1 unit
Price Negoiated
Packaging Details plywood case
Delivery Time 25 working days
Payment Terms Western Union, T/T,
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Box Compression Tester Capacity: 10KN-50KN
Resolution: 1/300,000 Precision Of Displacement: 0.01mm
Crosshead Speed: 0.05—500mm/min (arbitrary Setting) Power: 220V, 50Hz, Single Phrase
Highlight:

environmental testing equipment

,

environmental testing machine
Product Description

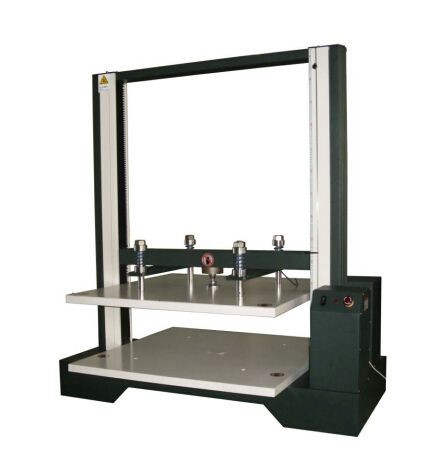

Environmental Test Chamber Box Compression Tester

Use

It is mainly suitable for all kinds of big corrugated cartons and other material packages which anti-pressure is less than 50KN, It is used for testing the whole box anti-pressure, and stacking pressure. So it is ideal testing equipment for paper-making, packaging, quality-inspecting department and so on.

With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: Good parallelism, reliable measure precision and high speed.

The testing machine is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function, Data processing function to gain the statistical result of all parameters directly, automatic reset and fault diagnosis function and easy operation.



Technical Parameter

 Capacity  10KN-50KN
 Strength Precision  ±0.5% of the applied load value, from 0.4% to 100% of the load cell capacity
 Resolution  1/300,000
 Precision of displacement  0.01mm
 Platen Size  800mm*800mm (can be ordered)
 Test Space  800mm (can be ordered)
 Crosshead speed  0.05—500mm/min (arbitrary setting)
 Weight  800 kg
 Power  220V, 50Hz, single phrase
