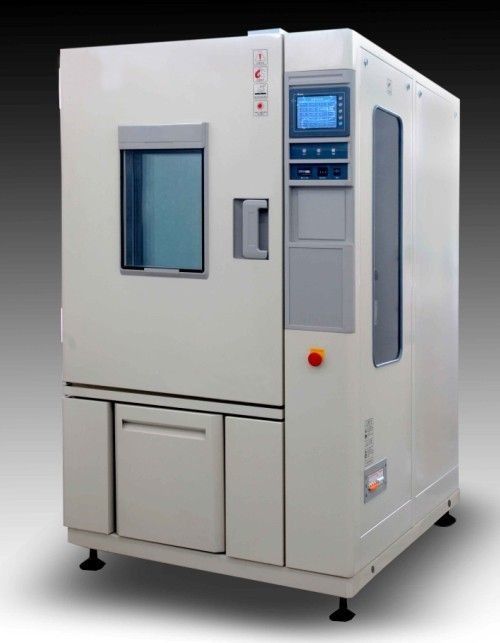

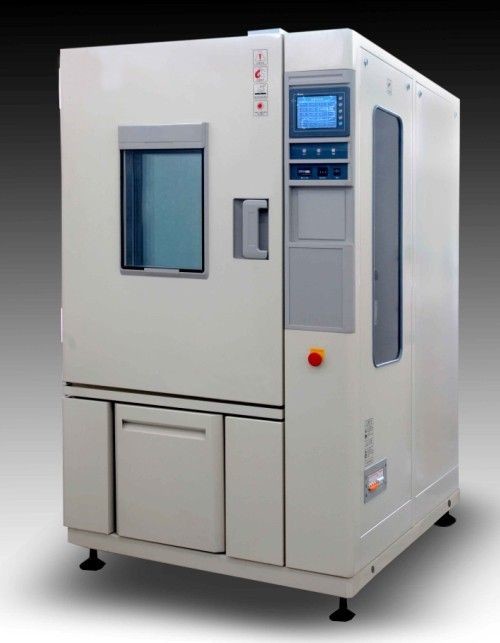

Temperature and Humidity Environmental Test Chamber LCD Colour Touch Screen
Product Details
| SKYLINE: | Temperature And Humidity Chamber | Temperature Range: | -40 ℃ ~ 150 ℃ |
|---|---|---|---|
| Temperature Control Stability: | ± 0.2 ℃ | Stability: | ± 2.5% RH |
| Highlight: | environmental testing equipment,environmental testing machine |
||
Product Description
Temperature and Humidity Chamber
Use of environmental test chamber
It is used mainly in the testing of electronics, components, pharmaceuticals, boards, quality control and R&D.
1 Performance: (for no-load, the air-cooled at room temperature 25 ℃)
1.1 Temperature range: -40 ℃ ~ 150 ℃
1.2 Temperature Control Stability: ± 0.2 ℃
1.3 Temperature distribution is: ± 1.0 ℃ (above 80 ℃ and below -40 ℃ the temperature distribution is ± 1.5 ℃)
1.4 Temperature rise time: room temperature rise to 150 ℃ need 35 minutes
1.5 Cooling time
Temp range Time needed
20~ 0℃ About 30 minutes
20~-20℃ About 40 minutes
20~-40℃ Around 50 minutes
1.6 Humidity: 10% ~ 98% RH. Note: 10% at 60 degrees when the temperature and humidity control can be
1.7 Stability: ± 2.5% RH.
1.8 Humidity distributions are degrees: ± 3%
1.9 Temperature and humidity control: (ordinary normal range)
Key Features
LCD Colour Touch Screen
Both Temperature and Humidity are Programmable
With RS232 output to computer
With Viewing Window
With thermostats (prevent overheat)
Inner material: Stainless steel SUS#304(1.20mm thick) stainless steel welding all aroud.
Outside material: special steel powder coating, the bottom can be fixed, adjusted the level of the PU with four casters.
Internal Dimension External Dimension
SL-E1 50*60*40 100*160*100
SL-E2 65*75*50 102*175*124
SL-E3 80*90*70 122*190*144
SL-E4 100*100*100 142*200*180
