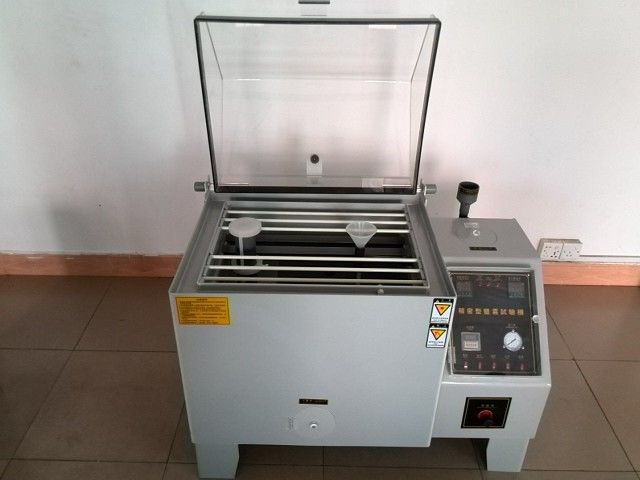

Size Customization Environmental Test Chamber PVC Salt Spray Test Equipment

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-E02
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, T/T,
Supply Ability 10 pcs/ month
Product Details
SKYLINE: Salt Spray Test Chamber Volume: 270L
Material: PVC Sheet, Thickness 5 Mm Standard: CNS3627, 3885, 4159, 7669, 8886, JIS Do201, H8502, H8610, K5400, Z2371, ISO3768, 3769, 3770, 9227, ASTM B117, B268
Saturated Air Drums: 47℃±1℃ Material For Saturated Air Barrel: SUS #304 Stainless Steel Barrel High Pressure Barrel
Highlight:

environmental testing equipment

,

uv accelerated weathering tester
Product Description

Size Customization PVC Salt Spray Test Chamber Environmental Test Chamber



Use of environmental test chamber

The Salt Spray Chamber are specialized to test the performance of the products for its surface of various materials after treatment of corrosive protection by means of painting, coating, galvanizing, anodizing and of lubricant.


Material

1) Laboratory using PVC sheet, thickness 5 mm, the temperature reaches 80 degree Celsius;
2) Laboratory closure with high impact acrylic sheet, 6 mm thick;
3) Supplementary bottles of reagents attached to the water level perspective with hidden windows, clean easy, not easy to break;
4) Saturated air barrel using SUS #304 stainless steel barrel high pressure barrel insulation is best;

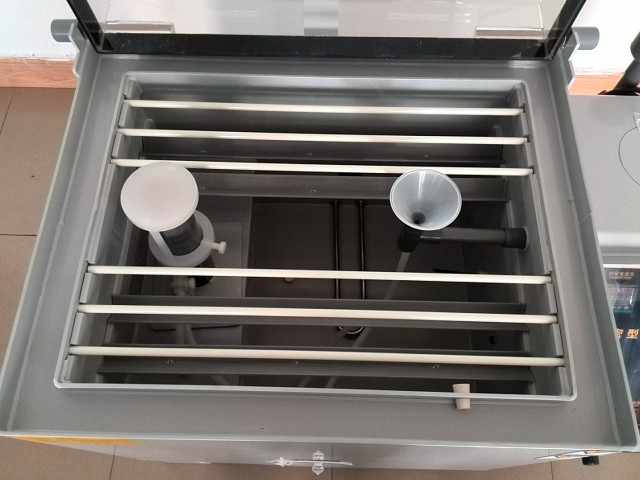

5) Laboratory basketball adopt flat indexing frame, adjustable angle, surrounded by mist side down exactly the same place the large number of test pieces
Salt spray test NSS,ACSS
laboratory 35℃±1℃
Saturated air drums 47℃±1℃
Corrosion test NSS.ACSS
laboratory 50℃±1℃
Saturated air drums 63℃±1℃
Comply to international standards: CNS3627, 3885, 4159, 7669, 8886, JIS Do201, H8502, H8610, K5400, Z2371, ISO3768, 3769, 3770, 9227, ASTM B117, B268


Specification


 Range		  Inside chamber  Room temp.~50℃,±0.5℃
 Air  Room temp.~63℃,±0.5℃
 Salt water  Room temp.~50℃,±0.5℃
 Saturated air pressure(kg/hr)  0.8~2.0
 Spray volume(m/80cm/hr)  0.5~3.0
 PH  Salt  6.5~7.2
 Copper acetate  3.0~3.2
 Exter./inner.Material  P.V.C & P.P
 System  Salt spray veicle  Air+acid(base)liquid
 Heating  SUS#304 & #316 stainless steel heater+taflon
 Controller  Hydrometer,salinomerer,fog collector,glassbar
 Other components  Digital electronic control+S.S.R
 Safety devices  Overheating prevention circult-breaker,
dehydration and overheating prevention mechanism,breakdown indicator light
 Power supply  AC 1pahse 220v±10% 50/60Hz



 Size Customization Environmental Test Chamber PVC Salt Spray Test Equipment
