Highlight:
Tensile Lab Testing Equipment
, 220V 50HZ Tensile Testing Machine
, 1.5KW Lab Testing Equipment

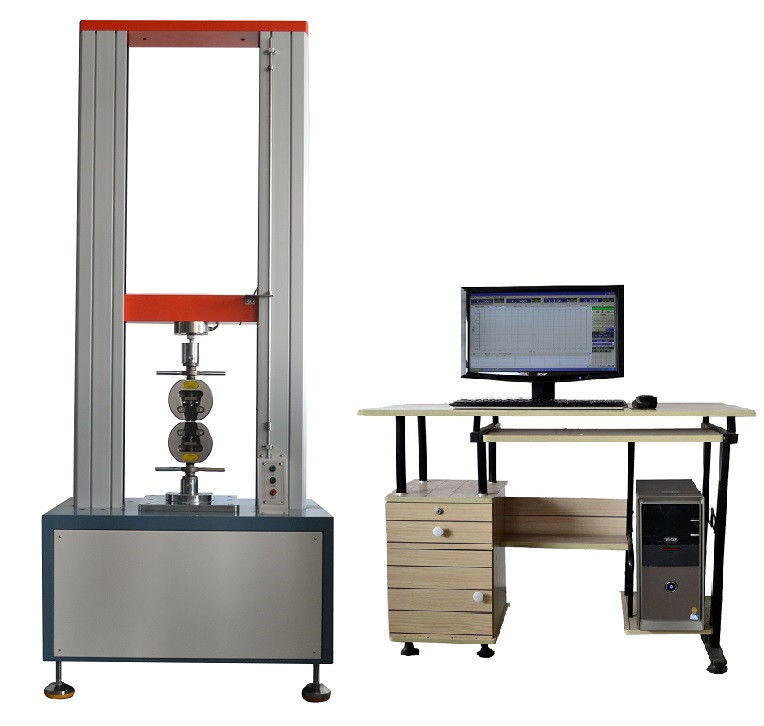

Lab Testing Equipment Universal Material Tensile Testing Machine -- 5Ton
Main functions of lab testing equipment:
It is mainly applicable to the testing of metal and non-metallic materials, such as rubber, plastic, wire and cable, optical fiber and cable, safety belt, safety belt, leather belt composite material, plastic profile, waterproof coiled material, steel pipe, copper material, profile, spring steel, bearing steel, stainless steel (and other high hardness steel), casting, steel plate, steel strip, non-ferrous metal wire stretching, compression, bending, shearing, stripping, tearing Two point extension (additional extensometer is required) and other tests
This machine adopts mechatronics design and is mainly composed of force sensor, transmitter, microprocessor, load drive mechanism, computer and color inkjet printer. It has wide and accurate loading speed and force measuring range, and has high accuracy and sensitivity for the measurement and control of load and displacement. It can also carry out automatic control tests of constant speed loading and constant speed displacement. Floor type models, modeling and painting have fully considered the relevant principles of modern industrial design and ergonomics.
Main features:
The imported photoelectric encoder is used for displacement measurement. The controller adopts embedded monolithic microcomputer structure, with built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It can automatically calculate the stress, elongation (extensometer is required), tensile strength and elastic modulus, and automatically count the results; Automatically record the force value or elongation at the maximum point, breaking point and specified point; The computer is used to dynamically display the test process and test curve, and to process the data. After the test, the curve can be magnified through the graphic processing module for data re analysis and editing, and the report can be printed. The product performance has reached the international advanced level.
Technical parameters:
| Effective force measuring range |
0.4%~100% (Grade 0.5) |
| Force measurement accuracy |
± 0.5% of the indicated value |
| Resolution of the testing machine |
Maximum load of 1/200000, is not divided into internal and external levels, and the overall resolution is unchanged |
| Basic configuration of load sensor |
One tension and compression sensor (maximum load) |
| Extended configuration |
Multiple sensors can be added |
| Effective test width |
400mm (can be widened according to customer requirements) |
| Effective stretching space |
800mm(can be increased according to customer requirements) |
|
Test speed range
|
0.01~500mm/min |
| Displacement measurement accuracy |
± 0.5% of the indicated value |
| Deformation measurement accuracy |
± 0.5% of the indicated value (large deformation or small deformation can be selected according to customer requirements) |
| Test bench safety device |
Electronic limit protection |
| Test bench lifting device |
fast/slow speed automatic control, inching |
| Test bench return function |
manual or automatic selection, automatic or manual return to the initial test position at the highest speed after the test |
| Overload protection |
the machine is automatically protected when the maximum load exceeds 10% |
| Fixture configuration |
One set of stretching fixture |
| Power system |
servo motor & high-precision ball screw |
