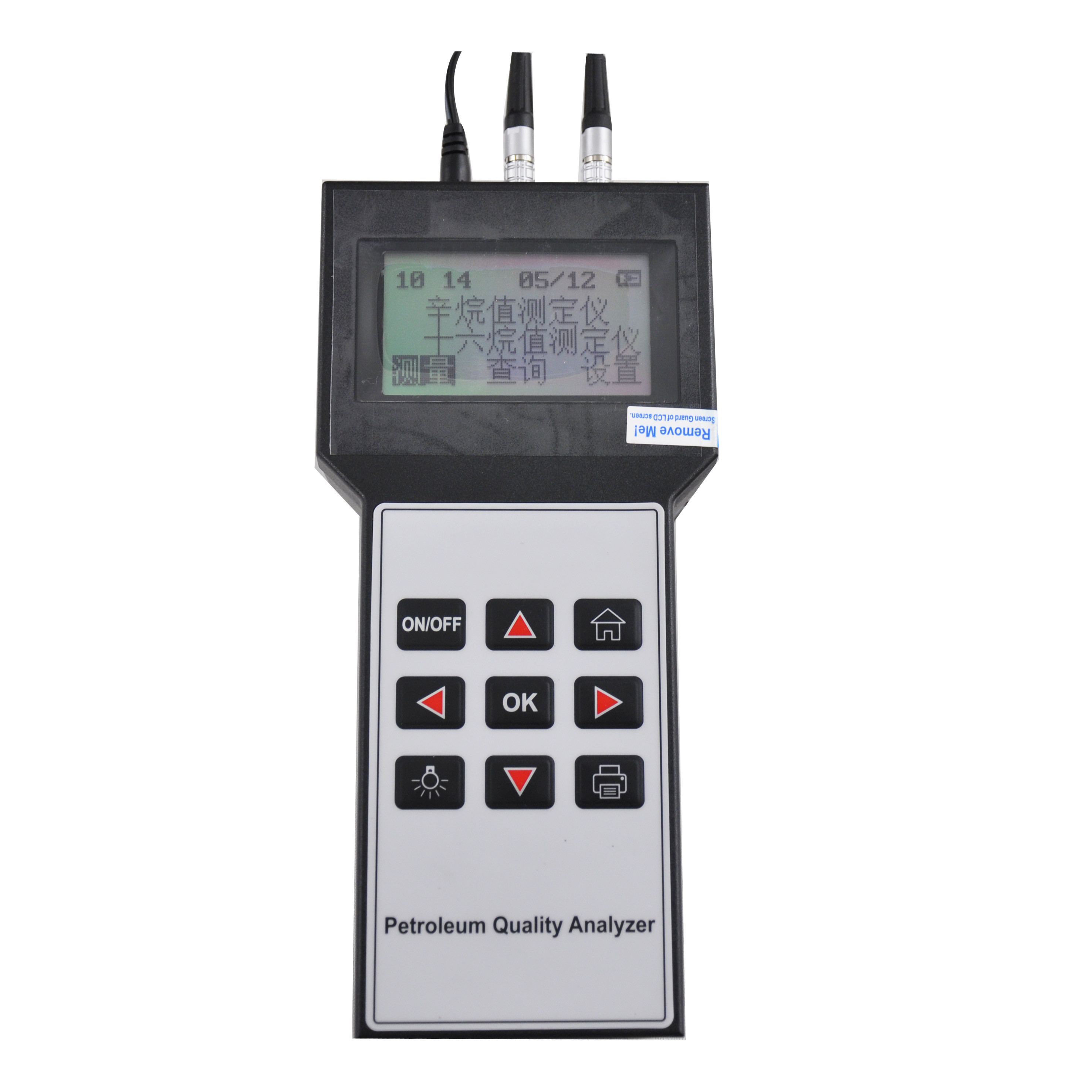

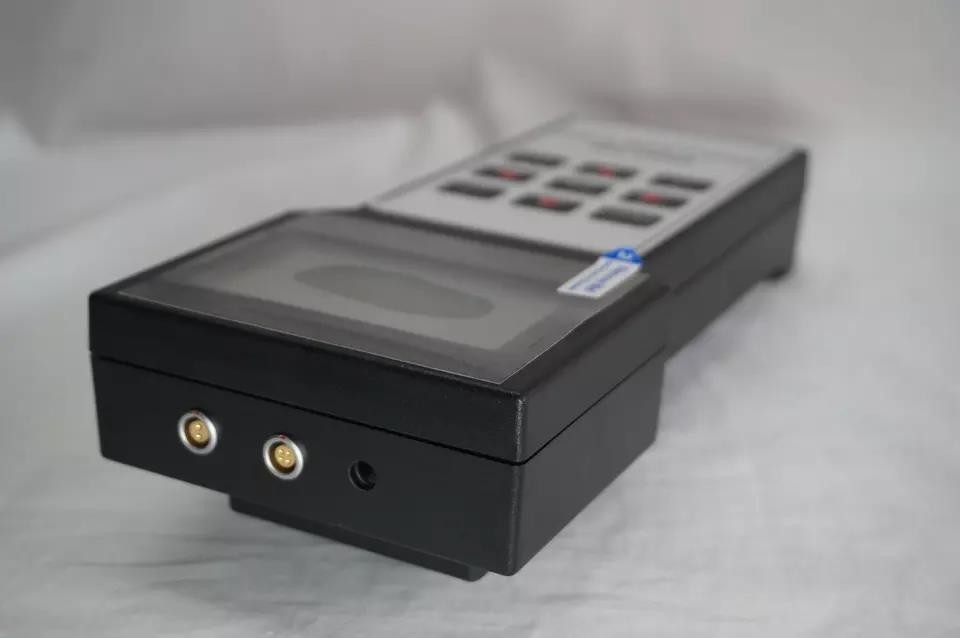

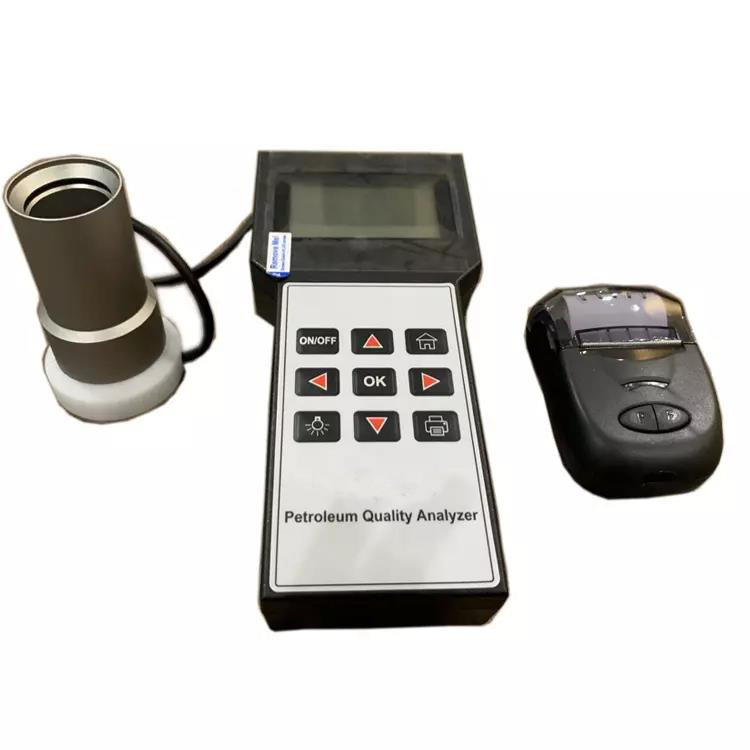

Description Of Octane&Cetane Number Tester
Octane cetane number tester is often used for on-site analysis of octane number of motor gasoline, corresponding to motor method and research method (RON and MON), and can also be applied to cetane number analysis of diesel.
Standard:
Octane number measurement conforms to: ASTM D2699, GB/T18339, ASTM D2700
Diesel cetane number measurement in accordance with: ASTM D4737, ASTM D613, EN ISO 5165
Features
1. Adopt the analysis principle of insulation permeability of gasoline octane number and cetane number of diesel oil and electric charge characteristics of electromagnetic induction.
2. The instrument is very sensitive and can measure small changes in dielectric parameters and has the function of atmospheric pressure correction.
3. More comprehensive and accurate measurement of various data of petroleum products.
4. It can measure various gasoline containing additives.
5. Measure the cetane number of diesel, diesel type and condensation temperature.
6. Simultaneously display RON, MON and anti-knock index (AKI). AKI=(RON+MON)/2.
7. The powerful processing chip can process the data quickly and accurately, and is compatible with the WINDOWS system.
8. With temperature correction, the use cost is low.
9. Simple and easy to operate, small in size, easy to carry, anti-vibration, anti-solvent, and sealed.
10. Four-row LCD display with backlight, suitable for low temperature environment, power supply indication, external low-voltage power supply.
Specification
| Octane number measurement range (ON) is measured in ON |
40-120 |
| Allowable measurement error for octane meter: per unit (max) |
0.5 |
| Floatable range of octane meter measurement results, per unit (max) |
±0.2 |
| Permissible measurement error of cetane number meter, CN unit (max) |
±1 |
| Floatable range of cetane number meter measurement results: CN unit (max): |
±0.5 |
| Measurement time (seconds) |
1-5 |
| Threshold V for low battery voltage |
5.4 |
| Normal working hours (unit: hours) |
1000 |
| Dimensions |
100mmх210mmх40mm;Sensor 60mmх100mm |
| Weight |
0.7Kg |
