Automatic acid value tester for oil products

Place of Origin Dongguan,Guangdong
Brand Name SKYLINE
Model Number SL-OA13
Minimum Order Quantity 1
Price Negotiation
Packaging Details Export packing
Delivery Time 10days
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 200sets/month
Product Details
Measurement Range: 0.0001 ～ 0.9999mgKOH/g Accuracy Acid Value: 0.001 ～ 0.1mgKOH/g ± 0.01mgKOH/g
Acid Value: Between 0.1~0.4mgKOH/g, 5% Of The Indicated Value Repeatability: 0.02mgKOH/g
Resolution: 0.0001mgKOH/g Measurement Method: Neutralization Method
Power Supply Voltage AC: 220V ± 10% 50Hz ± 10% Ambient Temperature: 5 ℃～ 40 ℃
Relative Humidity: ≤ 85% Overall Dimension: 480mm × 340mm × 200mm
Weight: 12.5kg
Highlight:

oil analysis lab equipment

,

oil analysis equipment
Product Description

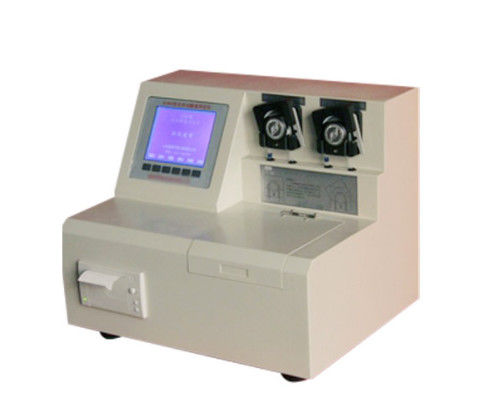

Full-automatic Acid Value Tester

Automatic acid value tester for oil products

Product description:

The full-automatic acid value tester is developed according to GB/T264 and is mainly used to measure the acid value of transformer oil, turbine oil and other petroleum products. It can be widely used in power, petroleum, chemical, commodity inspection and scientific research departments.



Technical features:

Double CPU microcomputer control

The detection system adopts imported laser devices, with low power and long service life

Automatic titration to judge the end point

Automatic extraction, neutralization, cup rotation, detection, printing, etc

LCD display, no identification button



Technical parameters:



Measurement range 0.0001 ～ 0.9999mgKOH/g
Accuracy Acid value 0.001 ～ 0.1mgKOH/g ± 0.01mgKOH/g
Acid value between 0.1~0.4mgKOH/g, 5% of the indicated value
Repeatability 0.02mgKOH/g
Resolution 0.0001mgKOH/g
Measurement method Neutralization method
Display mode LCD (240 × 128)
Power supply voltage AC 220V ± 10% 50Hz ± 10%
Ambient temperature 5 ℃～ 40 ℃
Relative humidity ≤ 85%
Overall dimension 480mm × 340mm × 200mm
Print Thermal Print
Power 60W
Weight 12.5kg
