Electric automatic interfacial tension meter tensiometer surface tension analyzer Surface Tension Tester

Name: Electric automatic interfacial tension meter tensiometer surface tension analyzer Surface Tension Tester
Brand: SKYLINE
SKU: SL-OA39
Rating: 4.6 (185 reviews)

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE , Calibration Certificate

Model Number: SL-OA39

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: negotiated

Packaging Details: plywood case

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                oil analysis lab equipment, oil analysis equipment


Full scale:	Insulating Oil 5～100mN/m; Other Petroleum Products 5～200mN/m	Accuracy:	0.5%F.S
Resolution:	0.1mN/m	Sensitivity:	0.1mN/m
Power supply voltage:	AC 220V±10%50Hz±10%	High power consumption:	40W
Display method:	LCD Display	Printer thermal type:	Printer Thermal Type
Ambient temperature:	5℃～40℃ (typical Value 25℃)	Ambient humidity:	≤85%
Movement speed:	0.3～0.4mm/S	Dimensions:	190mm×260mm×370mm
Instrument weight:	8.9kg

Full scale:	Insulating Oil 5～100mN/m; Other Petroleum Products 5～200mN/m
Accuracy:	0.5%F.S
Resolution:	0.1mN/m
Sensitivity:	0.1mN/m
Power supply voltage:	AC 220V±10%50Hz±10%
High power consumption:	40W
Display method:	LCD Display
Printer thermal type:	Printer Thermal Type
Ambient temperature:	5℃～40℃ (typical Value 25℃)
Ambient humidity:	≤85%
Movement speed:	0.3～0.4mm/S
Dimensions:	190mm×260mm×370mm
Instrument weight:	8.9kg

Product Description

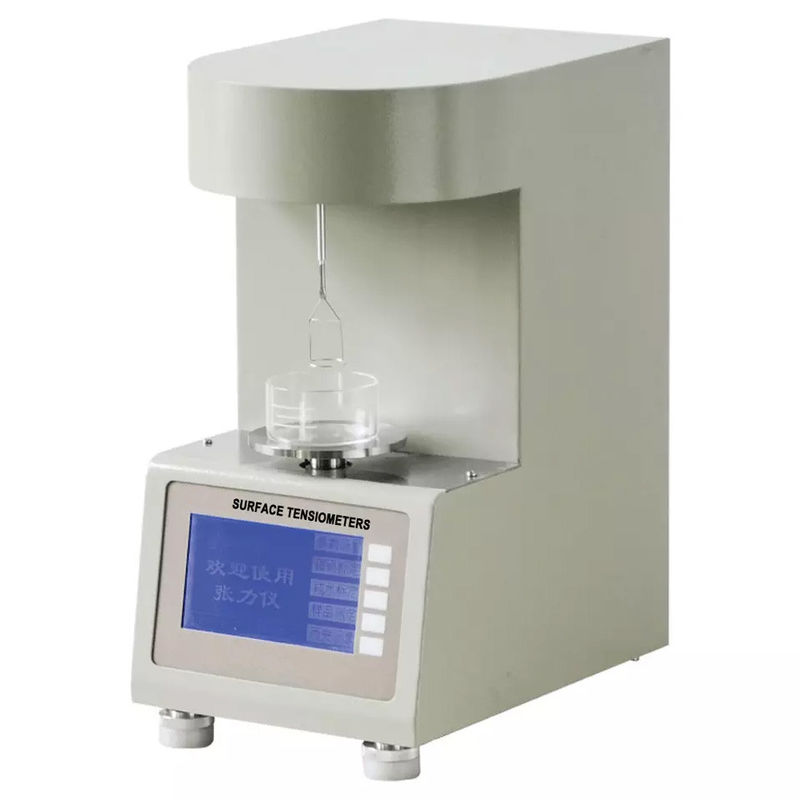

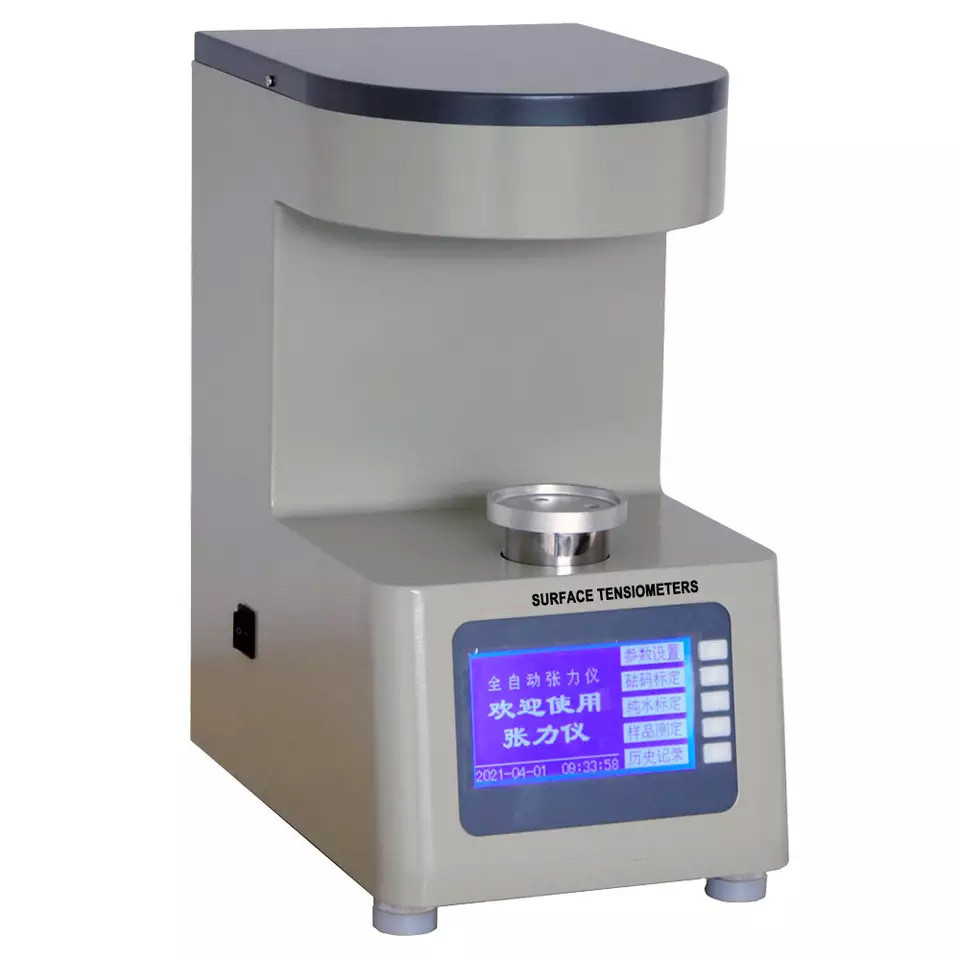

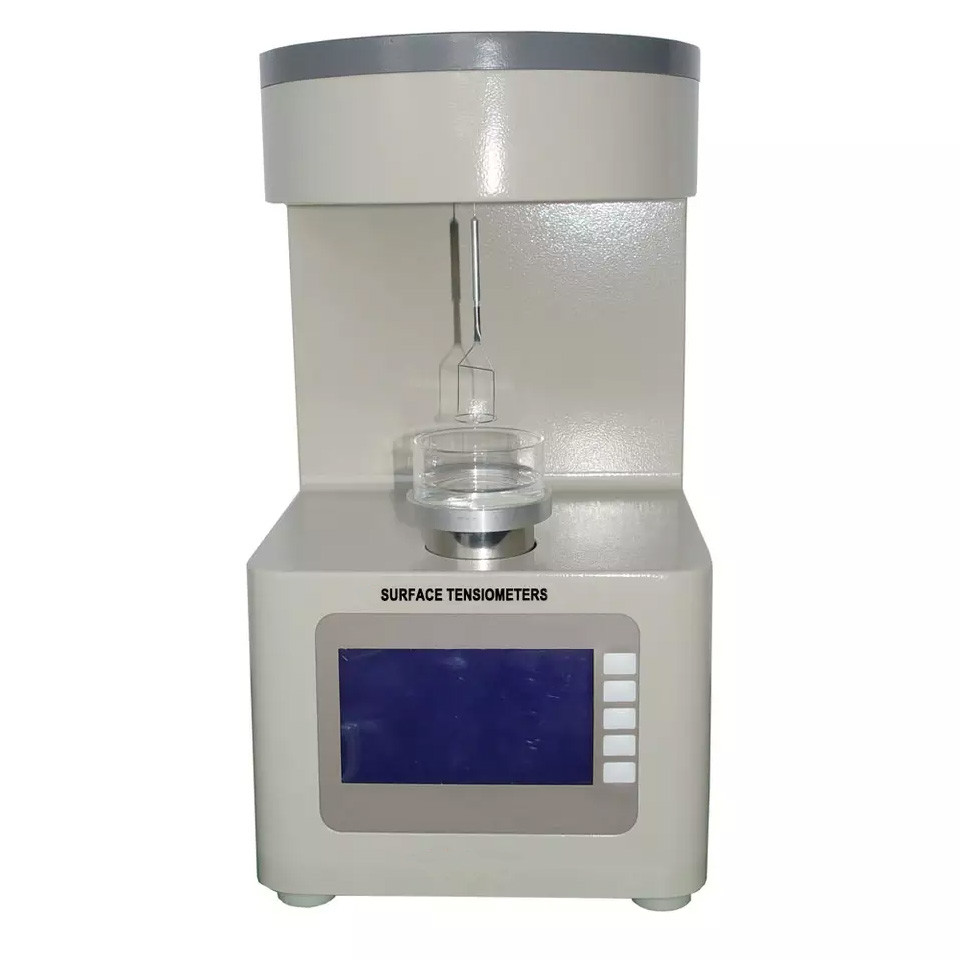

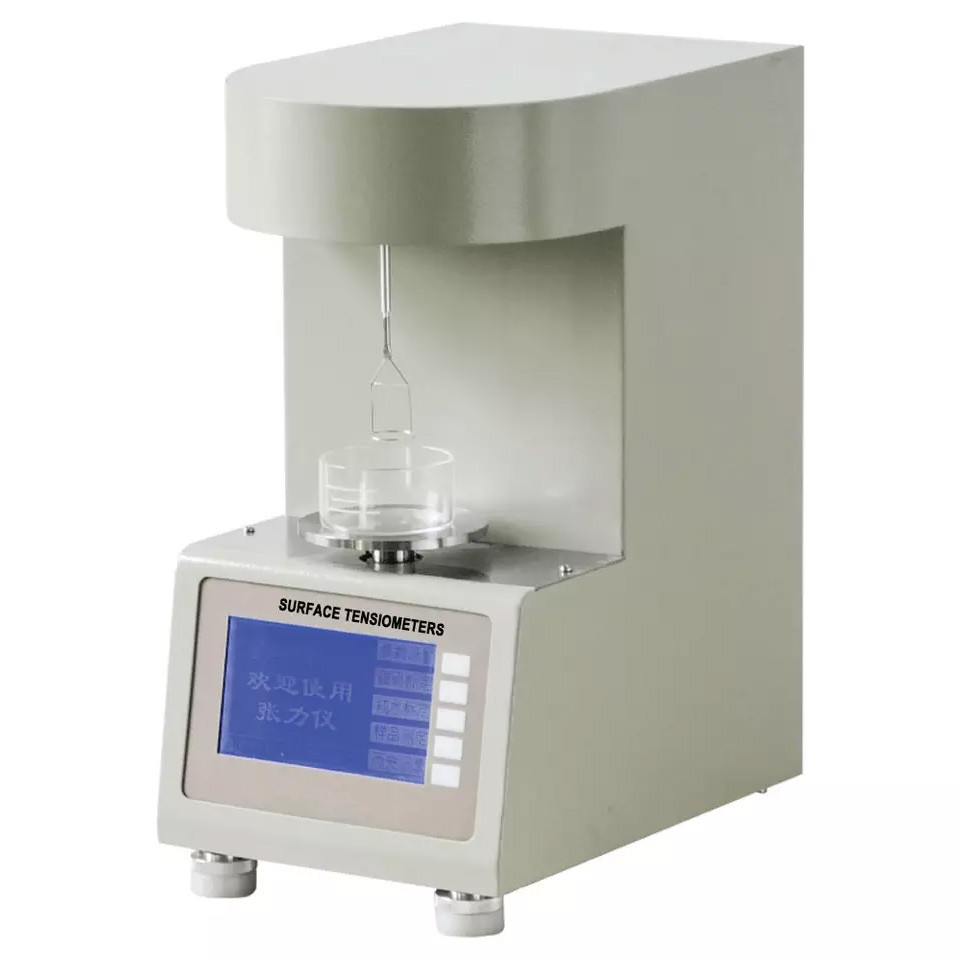

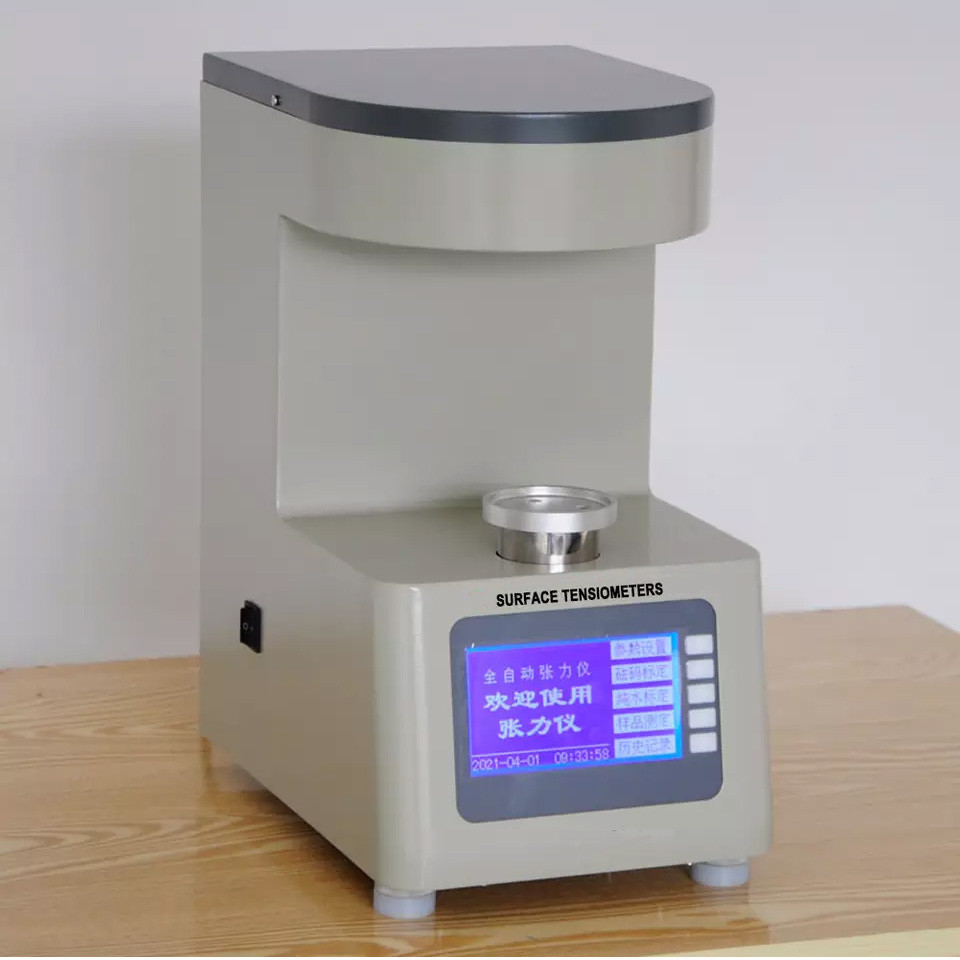

SL-OA39 Automatic Interfacial Tension Meter

Product description:

The automatic interfacial tension tester complies with GB/T6541 and ISO6295. It uses the ring method to measure the surface tension of various liquids and the interfacial tension between mineral oil and water under non-equilibrium conditions, and can reliably indicate the existence of hydrophilic oxides. Condition.

Technical features:

Adopt dual CPU microcomputer control
Use equal interval multi-point calibration to correct the nonlinearity of the electromagnetic force balance sensor to ensure measurement accuracy
Automatically collect the current temperature and automatically calculate the temperature compensation for the test results
After the test is completed, the test results are automatically stored, and 255 more can be stored
Perpetual calendar clock, automatically record the date and time of measurement. The power-off storage time is 10 years
With screen protection function, prolong the life of LCD
There is an RS232 port for communication with the computer

Technical parameters:

Full scale	insulating oil 5～100mN/m; other petroleum products 5～200mN/m
Accuracy	0.5%F.S
Resolution	0.1mN/m
Sensitivity	0.1mN/m
Power supply voltage	AC 220V±10%50Hz±10%
High power consumption	40W
Display method	LCD display
Printer thermal type	36 characters, Chinese character output
Ambient temperature	5℃～40℃ (typical value 25℃)
Ambient humidity	≤85%
Movement speed	0.3～0.4mm/S
Dimensions	190mm×260mm×370mm
Weight	8.9kg
