SL-OA51 Air Release Value Tester

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-OA51
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Temperature control range: Room Temperature To 99.9°C Temperature control accuracy: Water Temperature ±0.3°C Air Temperature ±1°C
Pressure adjustment range: 0～98kPa Ambient temperature: 10℃～40℃
Timing accuracy: ±1s Display mode: Liquid Crystal Display
Environmental humidity: ≤95% Working power supply: AC220V±10%, 50Hz
Power: 1100VA Dimensions: 560mm×350mm×490mm
Weight: 24Kg
Highlight:

oil analysis lab equipment

,

oil analysis equipment
Product Description

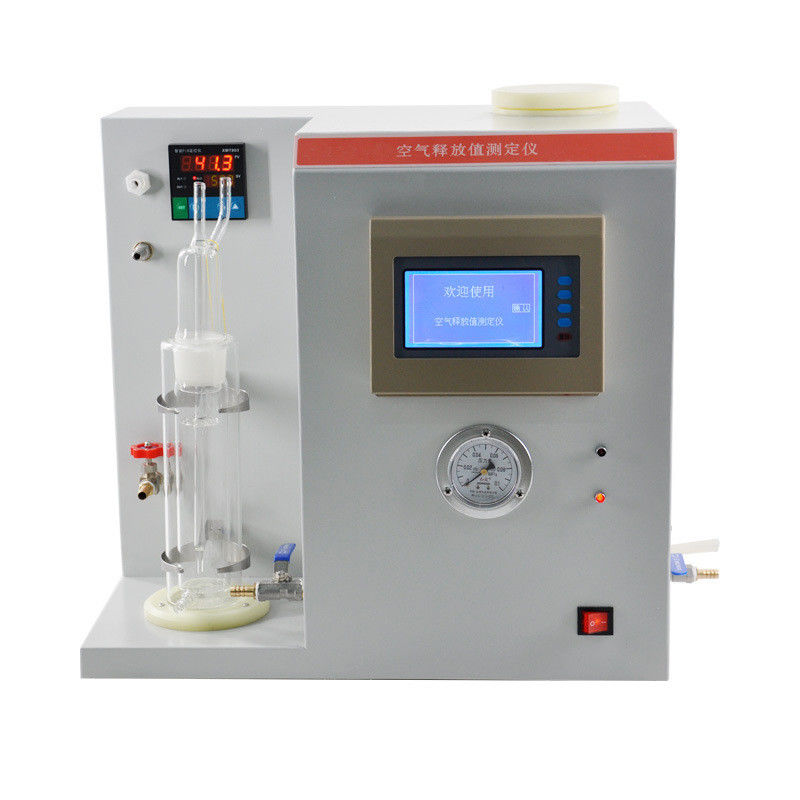

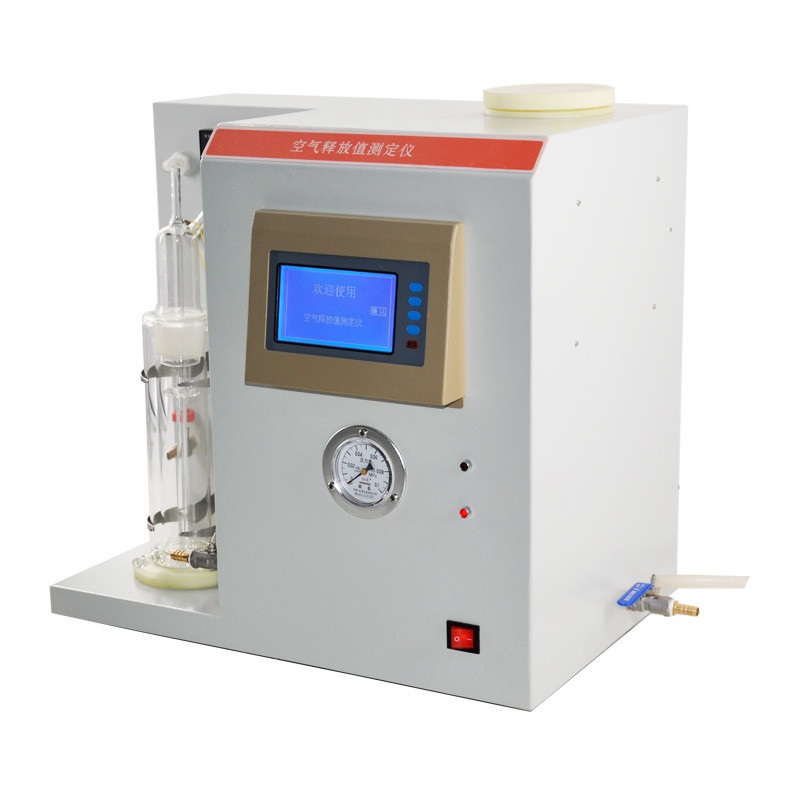

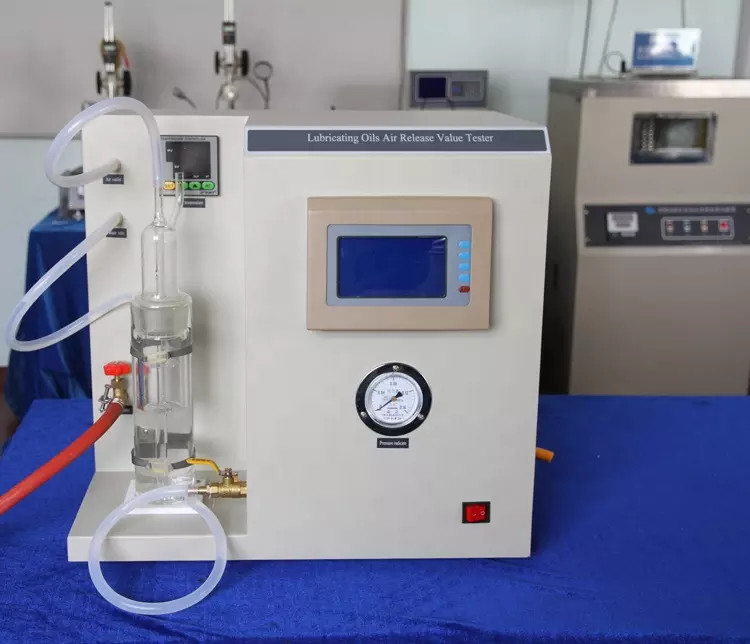

SL-OA51 Air Release Value Tester

SL-OA51 Air Release Value Tester

Product description:

This instrument is in accordance with the industry requirements of the People's Republic of China SH/T 0308 "Determination of Lubricating Oil Air Release Value"
It is designed and manufactured according to the requirements, and is used to determine the ability of lubricating oil to separate mist air - to measure hydraulic oil, steam turbine oil
Air release values of other petroleum products. This instrument should be in accordance with SH/T 0308-92 "Determination of Air Release Value of Lubricating Oil"
It is suitable for chemical industry, electric power, petroleum and other industries to measure petroleum products such as hydraulic oil and steam turbine oil.
The need for the air release value of the product.



Technical features:

The computer is used to control the temperature of two channels at the same time, integrating temperature control, air and constant temperature.
PID temperature control setting, temperature control.
Circulation pump, constant water temperature.
It has stable performance, accurate data and good repeatability.
Adopt micro-processing and fuzzy temperature control technology to control the temperature of air (outlet), sample and density meter (25, 50, 75°C)



Technical parameters:

Temperature control range room temperature to 99.9°C
Temperature control accuracy water temperature ±0.3°C Air temperature ±1°C
Pressure adjustment range 0～98kPa
Ambient temperature 0～45℃
Timing accuracy ±1s
Display mode liquid crystal display
Ambient temperature 10℃～40℃
Environmental humidity ≤95%
Working power supply AC220V±10%, 50Hz
Power 1100VA
Dimensions 560mm×350mm×490mm
Weight 24Kg
