Product Details
Place of Origin: Dongguan,Guangdong
Brand Name: SKYLINE
Certification: calibration certificate
Model Number: SL-OA31
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Packaging
Delivery Time: 5-8working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200sets/month
Temperature Control Room Temperature: |
Room Temperature ~100℃ |
Temperature Control Accuracy Room Temperature: |
~ 50 ℃± 0.2 ℃; 50℃~100℃±0.3℃ |
Oscillation Frequency: |
275 ± 3 Times/minute |
Oscillation Amplitude: |
35mm |
Number Of Samples Per Oscillation: |
8 100ml Syringes, 4 250ml Triangular Bottles |
Set The Oscillation And Static Time: |
Within 0~99 Minutes At Will ± 10 Seconds; Any Set Temperature Within 0~99 ℃ |
Noise: |
<40dB |
Power Supply Voltage AC: |
220V ± 10%, 50Hz ± 10% |
Power: |
800W |
Display Mode: |
LCD |
Ambient Temperature: |
5~40 ℃ |
Relative Humidity: |
≤ 85% |
Overall Dimension: |
500mm × 350mm × 370mm |
Weight: |
30.5kg |
Temperature Control Room Temperature: |
Room Temperature ~100℃ |
Temperature Control Accuracy Room Temperature: |
~ 50 ℃± 0.2 ℃; 50℃~100℃±0.3℃ |
Oscillation Frequency: |
275 ± 3 Times/minute |
Oscillation Amplitude: |
35mm |
Number Of Samples Per Oscillation: |
8 100ml Syringes, 4 250ml Triangular Bottles |
Set The Oscillation And Static Time: |
Within 0~99 Minutes At Will ± 10 Seconds; Any Set Temperature Within 0~99 ℃ |
Noise: |
<40dB |
Power Supply Voltage AC: |
220V ± 10%, 50Hz ± 10% |
Power: |
800W |
Display Mode: |
LCD |
Ambient Temperature: |
5~40 ℃ |
Relative Humidity: |
≤ 85% |
Overall Dimension: |
500mm × 350mm × 370mm |
Weight: |
30.5kg |

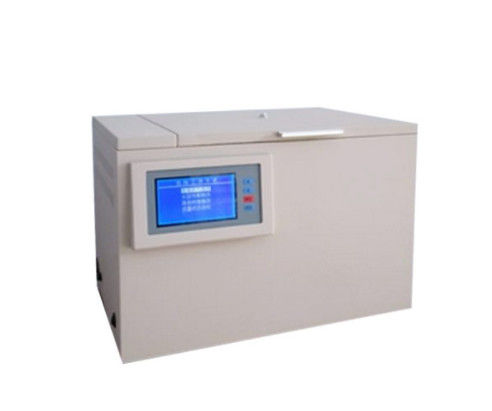

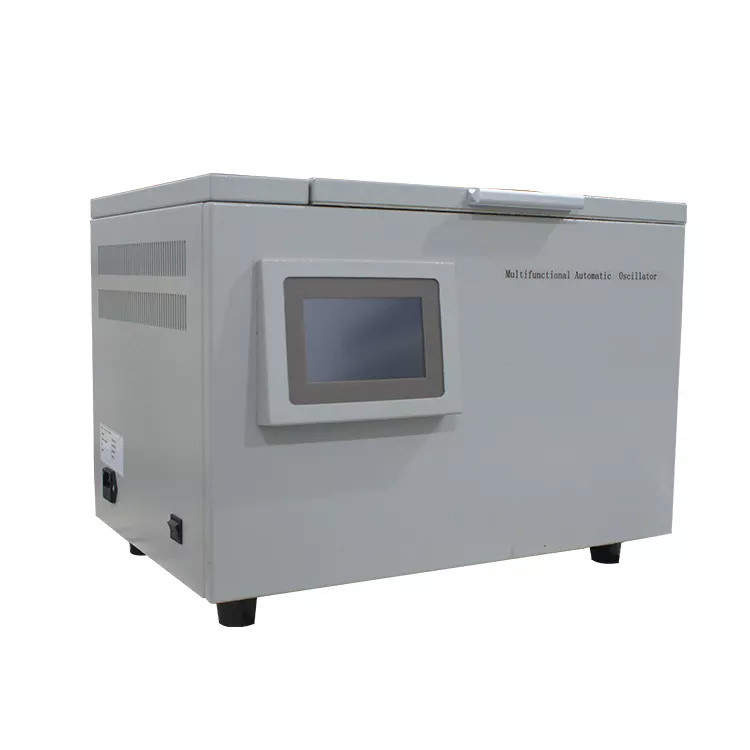

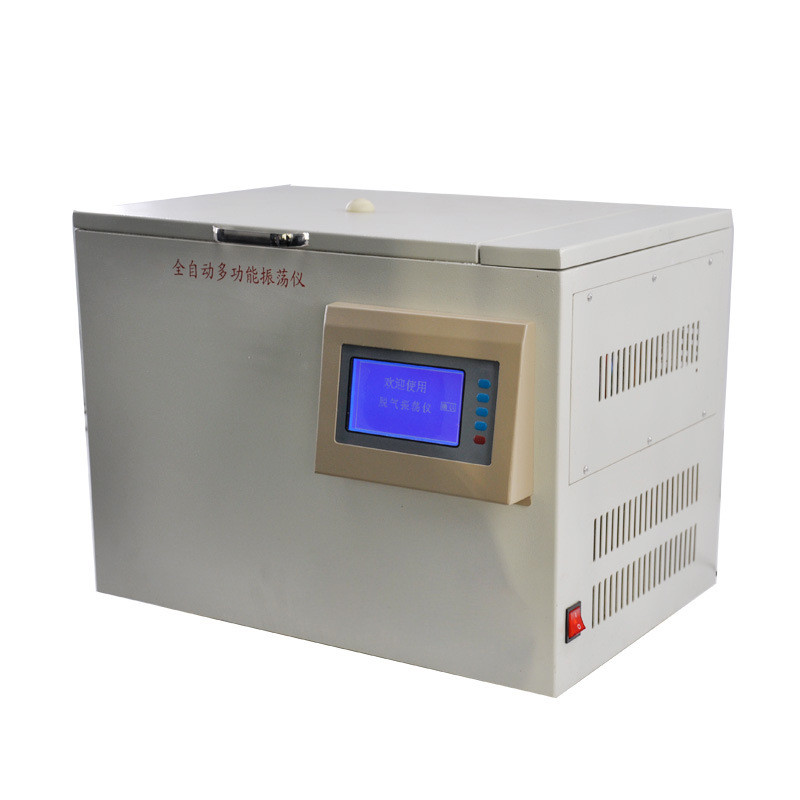

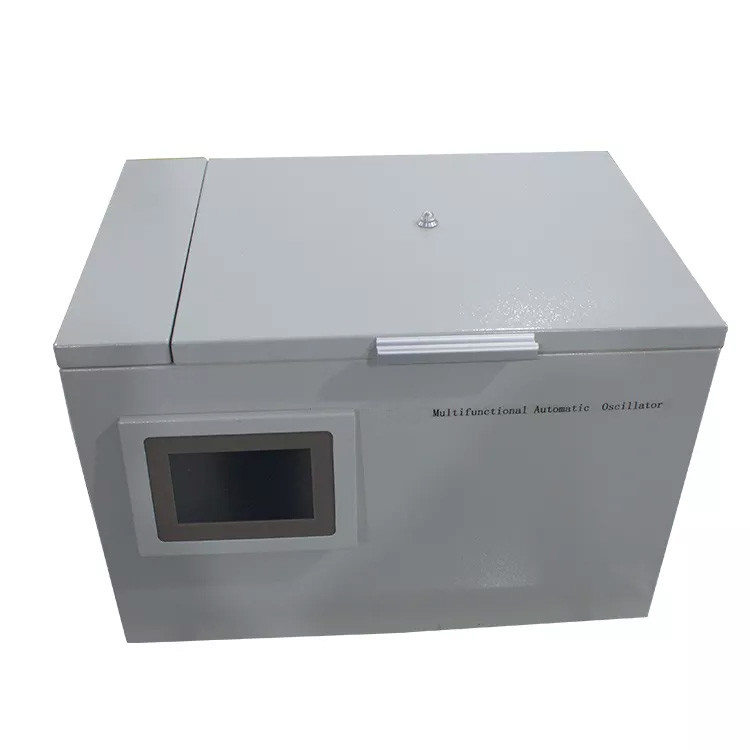

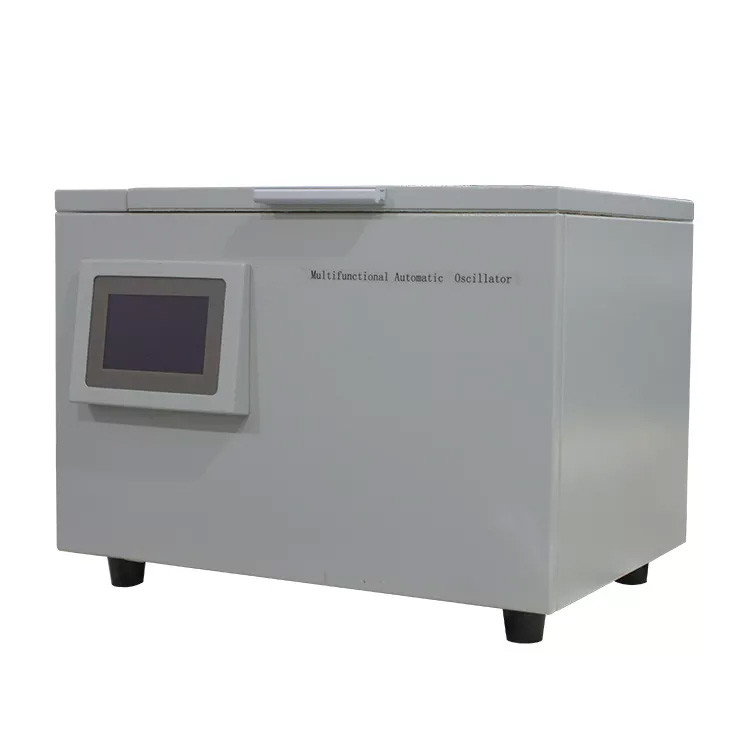

The multi-function oscillator meets the GB/T17623 and DL/T703 standards. It is mainly used for vibration degassing in the gas chromatography detection of insulating oil, constant temperature, timing and oscillation in the determination of water-soluble acid in oil, and also for constant temperature and timing oscillation in the tests of scientific research and production units such as petroleum, chemical industry, medicine and biochemistry.
Double CPU microcomputer control
Automatically stop heating when the temperature exceeds the value
Instrument fault self diagnosis
LCD display, no identification button
Fast constant temperature, good temperature control, reasonable structure, compact size
Temperature control room temperature | ~ 100 ℃ |
Temperature control accuracy Room temperature | ~ 50 ℃± 0.2 ℃; 50℃~100℃±0.3℃ |
Oscillation frequency | 275 ± 3 times/minute |
Oscillation amplitude | 35mm |
Number of samples per oscillation | 8 100ml syringes, 4 250ml triangular bottles |
Set the oscillation and static time | within 0~99 minutes at will ± 10 seconds; Any set temperature within 0~99 ℃ |
Noise | <40dB |
Power supply voltage AC | 220V ± 10%, 50Hz ± 10% |
Power | 800W |
Display mode | LCD |
Ambient temperature | 5~40 ℃ |
Relative humidity | ≤ 85% |
