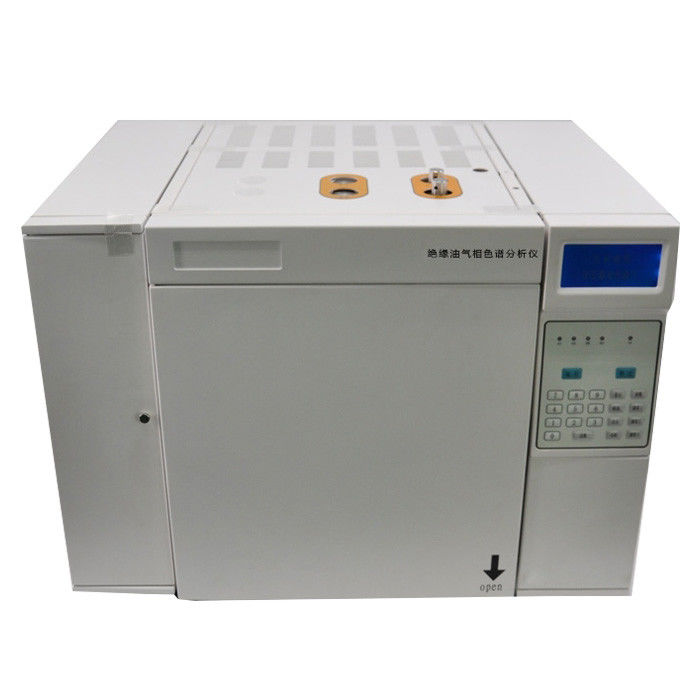

Transformer / Insulating Oil Gas Chromatograph Semi Diffused Structure

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-OA52
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Hydrogen Flame Ionization Detector (FID: Cylindrical Collector Structure Design, Metal Nozzle Detection limit: ≤2×10-12g/s (n-hexadecane/isooctane)
Baseline noise: ≤10μV Baseline drift: ≤100μV/30min
Linearity: ≧105 Adjustable fully automatic ignition, stabilization time: 30 Minutes
Thermal Conductivity Detector (TCD): Semi-diffused Structure, Constant Current Control Mode For Power Supply Sensitivity: ≥5000mV·ml/mg
Temperature range: 5°C~420°C Above Room Temperature Accuracy ±0.1°C Power supply: 220V±22V, 50Hz
Power: ≥2kW Weight: 55KG
Dimensions: 60cm×50cm×50cm
Highlight:

Semi Diffused Structure Gas Chromatograph

,

Insulating Oil Gas Chromatograph
Product Description

Transformer/Insulating Oil Gas Chromatograph

SL-OA52 Insulating Oil Gas Chromatograph

Transformer / Insulating Oil Gas Chromatograph Semi Diffused Structure

Product description:

It is designed and manufactured according to the methods stipulated in GB/T 17623 and DL/T 703 standards, and is suitable for analyzing oil-filled electrical equipment (including transformers, reactors, current transformers, voltage transformers, charging bushings, etc.) Analysis of hydrogen, carbon monoxide, methane, carbon dioxide, ethylene, ethane, acetylene and other gas content in oil.



Technical features:

Realize computer real-time control and data processing:
High-precision, stable and reliable temperature control system:
The heater will stop heating and report the fault location on the display;
Simple and clear man-machine dialogue interface, easy to operate, easy to learn and use
Double stable high-precision air path control system.
The column chamber adopts the method of tracking temperature rise.
The instrument detects low-level hydrocarbons and high-level CO and CO2, which can be detected separately to avoid mutual interference.



Technical parameters:

Hydrogen Flame Ionization Detector (FID) Cylindrical collector structure design, metal nozzle
Detection limit ≤2×10-12g/s (n-hexadecane/isooctane)
Baseline noise ≤2×10-13A
Baseline drift ≤2×10-12A/30min
Linearity ≥106
Adjustable fully automatic ignition, stabilization time 30 minutes
Thermal Conductivity Detector (TCD) Semi-diffused structure, constant current control mode for power supply
Sensitivity ≥5000mV·ml/mg
Baseline noise ≤10μV
Baseline drift ≤100μV/30min
Linearity ≧105
Temperature range 5°C~420°C above room temperature Accuracy ±0.1°C
Power Supply 220V±22V, 50Hz
Power ≥2kW
Weight 55KG
Dimensions 60cm×50cm×50cm
