Bicycle Bike Frame Front Fork Frequent Vibration Durability Tester Multifunctional

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-BT88
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Seat Tube Load: Adult, Stroller 70Kg, Baby Carriage 30Kg Frame Fall Height: 200-300mm
Control Mode: Electric Control Height Marking Scale: Can Be Adjusted According To The Height Of The Test Piece Combination Zero Mark
The Upper And Lower Limit Moving Device: Upper And Lower Limit Protection Switch And Positioning Falling Trigger: Electromagnetic Clutch Device
Dimension: 2000*700*1750 Mm (W*D*H) Weight: About 160KG
Power Supply: AC220V,15A
Highlight:

Frequent Vibration Durability Tester

,

Combination Impact Tester

,

Fork Combination Impact Tester
Product Description

Bicycle Frame Fork Combination Impact Tester Bicycle Testers Bike Frame Front Fork Frequent Vibration Durability Tester

Bicycle Multifunctional Impact Tester SL-BT87

Application Of Bicycle Multifunctional Impact Tester

This machine is used to simulate the impact on the frame and fork when the front wheel leaves the ground, when it is hit or when it is subjected to vibration.


Test principles

All types of frames in accordance with ISO 4210-6.4.2, GB3565 and GB17761.



Test method

1. Select the appropriate axle to fix the lightweight roller with a weight less than or equal to 1Kg to the front fork and the rear fork of the frame to the test bench. 2. Adjust the front and rear position of the steel drill so that the centre of the roller is located directly above it when it is dropped. 3. Fix the standard weights to the various positions of the frame according to the standard.

4. Turn on the drop power switch to energise the drop solenoid and attach the lightweight roller to the solenoid. 5. Adjust the hand wheel above the steel drill so that the centre of the roller moves to the drop position (the height of the drop is indicated by a scale). 6. Press the drop button and the frame assembly does a free fall movement to impact, completing the first test (the test is repeated 2 times).

7. After the test is completed, check whether there are cracks and deformation of the assembly, and judge whether it is qualified according to the standard.



Weight distribution and landing height at the saddle tube, front tube and centre axis

Type of bicycle City Bikes Children's bikes Mountain Bikes Racing
Heavy object 1 Saddle tube M1 KG 50 40 30 30
Heavy object 2 Front tube M2 KG 10 10 10 10
Heavy object 3 Central axis M3 KG 30 20 50 50
Landing height MM 200 200 300 200




Technical Parameters

Seat tube load adult, stroller 70Kg, baby carriage 30Kg
Frame fall height 200-300mm
Control mode electric control
Height marking scale can be adjusted according to the height of the test piece combination zero mark
The upper and lower limit moving device upper and lower limit protection switch and positioning
Falling trigger electromagnetic clutch device
Dimension 2000*700*1750 mm (W*D*H)
Weight about 160KG
Power supply AC220V,15A

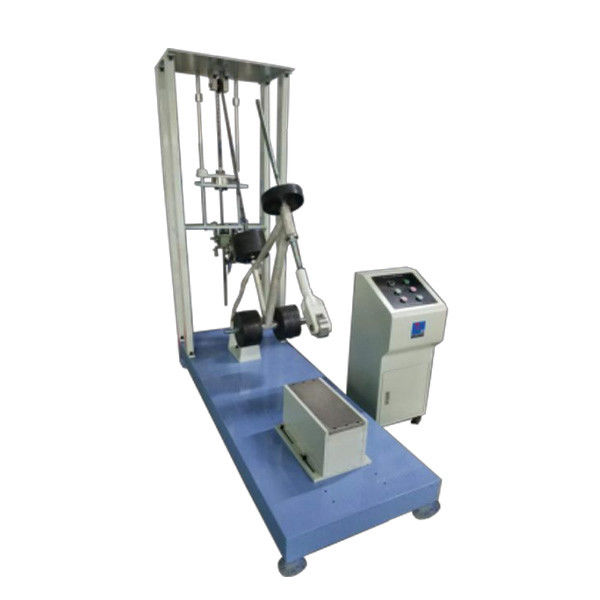

Diagrams and pictures of equipment
