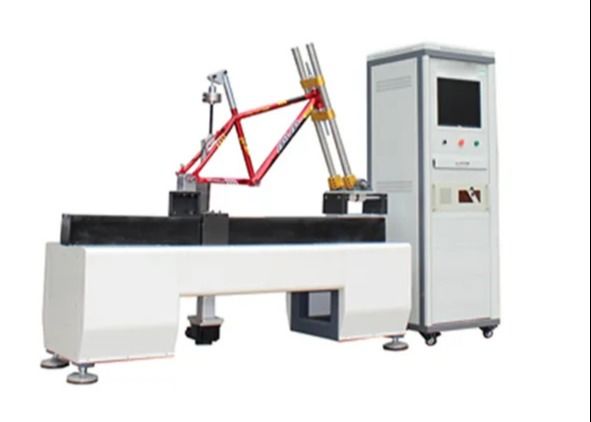

ISO 4210 Bicycle Frame Dynamic Fatigue Tester Vertical
ISO 4210 Bicycle Frame Dynamic Fatigue Tester Vertical
ISO 4210 Bicycle Frame Dynamic Fatigue Tester Vertical

ISO 4210 Bicycle Frame Dynamic Fatigue Tester Vertical

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE , Calibration Certificate

Model Number: SL-BT91

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: negotiated

Packaging Details: plywood case

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

ISO 4210 Dynamic Fatigue Tester

,

Vertical Dynamic Fatigue Tester

,

ISO 4210 Dynamic Fatigue Testing Machine

Maximum Frequency Of The Machine:
Computer Automatic Control, With Displacement, Force, Time And Other Control Methods
Sensor Capacity:
Disc Type Sensor 5000N*1pcs
Load Element Resolution:
1/10000
Electric Cylinder:
Electric Cylinder Servo Control
Displacement Stroke:
150mm(±75mm)
Number Of Tests:
0-999999 Set Arbitrarily
Control Method:
Force Fully Closed-loop Control
Control Software:
Self-developed Special Software
Display Method:
Computer Control And Monitor
Data Acquisition:
High-speed Acquisition Card
Force Acquisition Frequency:
＞200KHz
Force Waveform:
Sine Wave
Automatic Stop:
Automatic Stop When The Force Does Not Reach The Setting, Automatic Stop When The Test Piece Is Damaged
Report Printing Format:
Self-saving Test Results To Make Reports
Test Fixture:
1set
Weight:
400KG
Power Supply:
AC220V,15A
Dimension:
Test Bench:2400*820*900mm Control Cabinet: 600*600*1830mm (L*W*H)
Maximum Frequency Of The Machine:
Computer Automatic Control, With Displacement, Force, Time And Other Control Methods
Sensor Capacity:
Disc Type Sensor 5000N*1pcs
Load Element Resolution:
1/10000
Electric Cylinder:
Electric Cylinder Servo Control
Displacement Stroke:
150mm(±75mm)
Number Of Tests:
0-999999 Set Arbitrarily
Control Method:
Force Fully Closed-loop Control
Control Software:
Self-developed Special Software
Display Method:
Computer Control And Monitor
Data Acquisition:
High-speed Acquisition Card
Force Acquisition Frequency:
＞200KHz
Force Waveform:
Sine Wave
Automatic Stop:
Automatic Stop When The Force Does Not Reach The Setting, Automatic Stop When The Test Piece Is Damaged
Report Printing Format:
Self-saving Test Results To Make Reports
Test Fixture:
1set
Weight:
400KG
Power Supply:
AC220V,15A
Dimension:
Test Bench:2400*820*900mm Control Cabinet: 600*600*1830mm (L*W*H)
Product Description

ISO 4210 Bicycle Frame Vertical Dynamic Fatigue Tester

Bicycle Frame Vertical Dynamic Fatigue Tester



Application Of Bicycle Frame Vertical Dynamic Fatigue Tester

This machine for bicycle frames to do fatigue testing. It can test bicycle frame pedaling fatigue test EN 15194 electric bicycle, ISO4210-6.4.4 all styles of frame of this test specification.


Test principles

According to the standard: EN 15194 electric bicycle, ISO4210, EN14781 roadster, EN14766 mountain bike, EN14764 city car. designed by CNS, JIS, DIN, NF, ISO, CPSC, CSA, AS, BS nine countries testing standards.



Test method

1 Fix the frame on the test machine according to the standard method, and the position of the fork can be adjusted manually to fit the size of the frame.

2 Fix the car driver and fork on the roller axle, and fix the rear hook on the rear axle, and lock the rear axle fixing block.

3 Attach the frame vertical force loading fixture assembly to the test machine in accordance with the standard method, the height of the loading beam can be adjusted manually to suit the height of the frame.

4.Set the test force value and number of times required for the test on the computer.

5.Adjust the maximum deformation of the frame allowed, the machine will automatically stop the test after exceeding some deformation.

6.Start the test program to start the test, the test reaches the set number of times or test piece damage, automatically stop the test and retain the test results.



Frame horizontal fatigue test cycle and force value

Type of bicycle City Bikes Children's bikes Mountain Bikes Racing

Forward force value

F/N

 450 450 1200 600
Backward force value F/N 450 450 600 600
Test period Cycle 100000 100000 50000 100000

Technical Parameters

Maximum frequency of the machine 5Hz
Sensor capacity Disc type sensor 5000N*1pcs
Load element resolution 1/10000
Electric cylinder Electric cylinder servo control
Displacement stroke 150mm(±75mm)
Number of tests 0-999999 set arbitrarily
Control method force fully closed-loop control
Maximum frequency of the machine computer automatic control, with displacement, force, time and other control methods
Control software Self-developed special software
Display method Computer control and monitor
Data acquisition High-speed acquisition card
Force acquisition frequency ＞200KHz
Force waveform Sine wave
Automatic stop Automatic stop when the force does not reach the setting, automatic stop when the test piece is damaged
Report printing format Self-saving test results to make reports

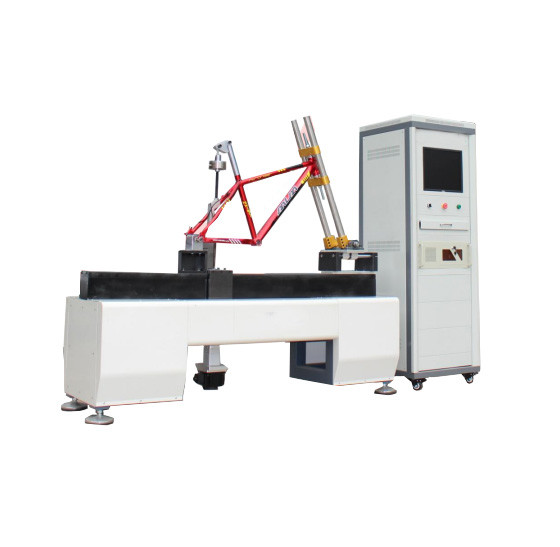

Diagrams and pictures of equipment

ISO 4210 Bicycle Frame Dynamic Fatigue Tester Vertical 0
