EN 14764 / ISO 4210 Bicycle Frame Disc Brake Dynamic Fatigue Tester 200KHz

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-BT93
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Maximum Frequency Of The Machine: Computer Automatic Control, With Displacement, Force, Time And Other Control Methods Sensor Capacity: Disc Type Sensor 5000N*1pcs
Load Element Resolution: 1/10000 Electric Cylinder: Electric Cylinder Servo Control
Displacement Stroke: 150mm(±75mm) Number Of Tests: 0-999999 Set Arbitrarily
Control Method: Force Fully Closed-loop Control Control Software: Self-developed Special Software
Display Method: Computer Control And Monitor Data Acquisition: High-speed Acquisition Card
Force Acquisition Frequency: ＞200KHz Force Waveform: Sine Wave
Automatic Stop: Automatic Stop When The Force Does Not Reach The Setting, Automatic Stop When The Test Piece Is Damaged Report Printing Format: Self-saving Test Results To Make Reports
Test Fixture: 1set Weight: 160KG
Power Supply: AC220V,15A Dimension: Test Bench:1950*450*900mm
Highlight:

EN 14764 Dynamic Fatigue Tester

,

Disc Brake Dynamic Fatigue Tester

,

Dynamic Fatigue Tester ISO 4210
Product Description

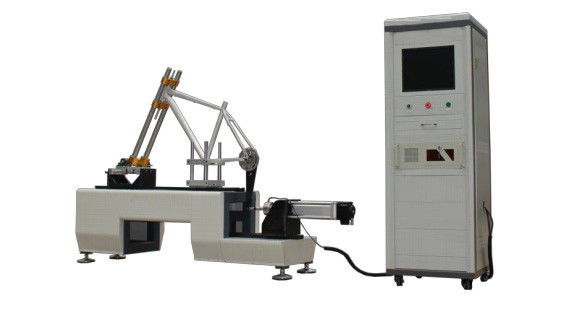

EN 14764/ ISO 4210 Bicycle Frame Disc Brake Dynamic Fatigue Tester

EN 14764​ Bicycle Frame Disc Brake Dynamic Fatigue Tester



Application Of EN 14764 Bicycle Frame Vertical Horizontal Force Fatigue Tester

This tester is designed for bicycle frame vertical direction and disc brake fatigue test standard, the bicycle frame is mounted on this tester fixture and then the fatigue force is applied to it with certain frequency, load and number of tests, and the test is judged by checking the damage of the sample after the test.


Test principles

According to standard EN14764:2005 , ISO4210-2014



Technical Parameters

Maximum frequency of the machine 5Hz
Sensor capacity Disc type sensor 5000N*1pcs
Load element resolution 1/10000
Electric cylinder Electric cylinder servo control
Displacement stroke 150mm(±75mm)
Number of tests 0-999999 set arbitrarily
Control method force fully closed-loop control
Maximum frequency of the machine computer automatic control, with displacement, force, time and other control methods
Control software Self-developed special software
Display method Computer control and monitor
Data acquisition High-speed acquisition card
Force acquisition frequency ＞200KHz
Force waveform Sine wave
Automatic stop Automatic stop when the force does not reach the setting, automatic stop when the test piece is damaged
Report printing format Self-saving test results to make reports
Test fixture 1set
Weight 160KG
Power supply AC220V,15A
Dimension Test bench:1950*450*900mm Control cabinet: 600*600*1030mm (L*W*H)
