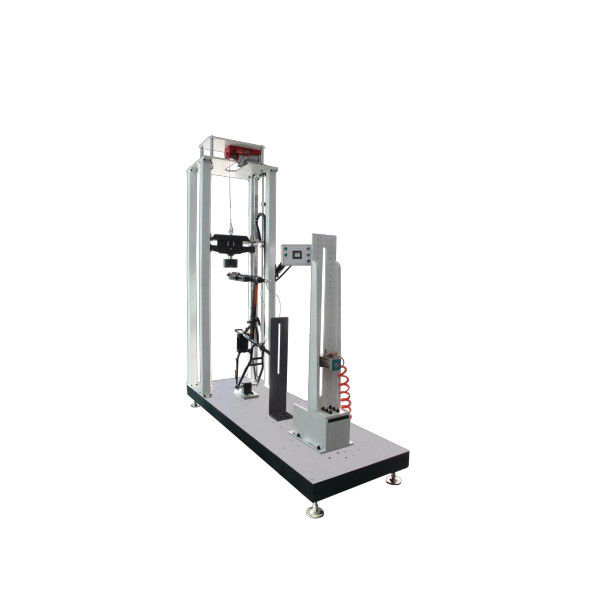

EN Standard Bicycle Front Fork Backward Impact Tester AC220V 15A
EN Standard Bicycle Front Fork Backward Impact Tester AC220V 15A

EN Standard Bicycle Front Fork Backward Impact Tester AC220V 15A

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE , Calibration Certificate

Model Number: SL-BT96

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: negotiated

Packaging Details: plywood case

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

AC220V 15A Impact Tester

,

Bicycle Front Fork Impact Tester

,

EN Standard Impact Tester

Weight:
160KG
Power Supply:
AC220V,15A
Dimension:
W*1000*D600*H2400(mm)
W*1000*D600*H2400(mm):
MAX1500mm
Height Scale:
Adjustable According To The Height Of The Mold And Specimen Combination
Impact Mass:
15kg, 22.5kg
Lifting Guide:
Pick Linear Bearings + SUJ Bearing Shaft Track
Impact Hammer Triggering:
Replacement Of Various Impact Hammers According To Test Specifications
Impact Hammer Modularity:
Lift Limit, Lower Limit Protection Switch And Positioning Setting
Upper And Lower Limit Device:
Lift Limit, Lower Limit Protection Switch And Positioning Setting
Weight:
160KG
Power Supply:
AC220V,15A
Dimension:
W*1000*D600*H2400(mm)
W*1000*D600*H2400(mm):
MAX1500mm
Height Scale:
Adjustable According To The Height Of The Mold And Specimen Combination
Impact Mass:
15kg, 22.5kg
Lifting Guide:
Pick Linear Bearings + SUJ Bearing Shaft Track
Impact Hammer Triggering:
Replacement Of Various Impact Hammers According To Test Specifications
Impact Hammer Modularity:
Lift Limit, Lower Limit Protection Switch And Positioning Setting
Upper And Lower Limit Device:
Lift Limit, Lower Limit Protection Switch And Positioning Setting
Product Description

EN Standard Bicycle Front Fork Backward Impact Tester



Test principles



A roller with a mass less than or equal to 1kg is mounted on the fork. The impact surface hardness of the roller is not less than 60HRC.

A weight with a mass of 22.5kg ± 0.1kg is placed on the roller of the fork leg, which is equivalent to applying a force in the plane of the wheel to the direction of travel of the fork. A deflection measuring device is installed under the roller to record the position of the roller in the plane of the wheel, perpendicular to the direction of the fork riser axis and the vertical position of the fork.

The deflection measuring device is removed and the weight is raised above the lightweight roller. It is then released so that it impacts on the roller in the direction of the front deflection. The weight drop height can be referred to the following table. The weight will bounce, which is normal. When the weight stops on the roller, measure the permanent deformation under the roller.



Note: Refer to ISO 4210-3:2014



Type of bicycle City Bikes Children's bikes Mountain Bikes Racing





Drop height

 All-steel front fork 180 180 360 360
Fork with composite material 320 320 600 640





Technical Parameters

Impact Height MAX1500mm
Height scale Adjustable according to the height of the mold and specimen combination
Impact mass 15kg, 22.5kg
Lifting guide Pick linear bearings + SUJ bearing shaft track
Impact hammer triggering Replacement of various impact hammers according to test specifications
Impact hammer modularity Lift limit, lower limit protection switch and positioning setting
Upper and lower limit device Lift limit, lower limit protection switch and positioning setting
Dimension W*1000*D600*H2400(mm)
Weight 160kg
Power supply AC220V 15A
