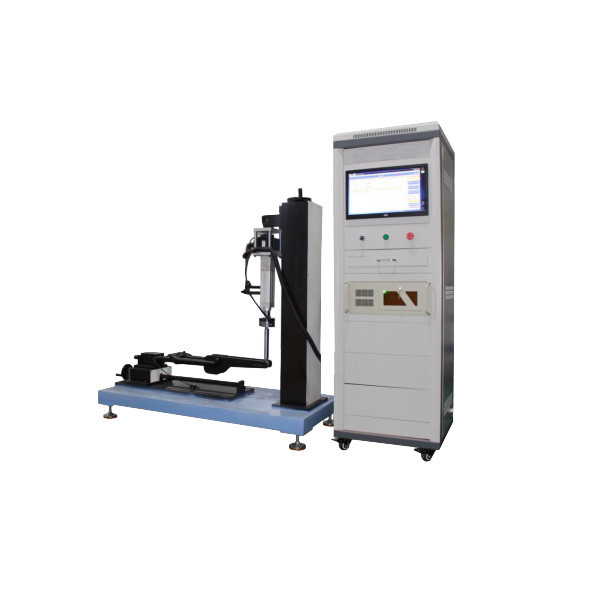

Bike Frame Front Fork Positive Disc Brake Fatigue Tester 220v

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-BT98
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Brand: Skyline Color: Customized
Frequency Range: 1-6Hz Name: Bike Frame Front Fork Positive Disc Brake Fatigue Tester
Keyword: Disc Brake Fatigue Tester Power Supply: 220v
Highlight:

Brake Fatigue Tester 220v

,

Disc Brake Fatigue Tester

,

220v Brake Fatigue Tester
Product Description

Bike Frame front fork positive disc brake fatigue Tester



Test principles

Fork I brake fatigue test for hub brake/disc brake

The fork is clamped in a fixture representing the front tube with a conventional fork assembly, and the axis of the fork riser is kept vertical. A shaft is mounted on the fork and a pivot connected, straight load bearing device is mounted on the shaft as shown in the figure. A force arm of length L is formed (see Table 10) with suitable mounting points for the braking device.



In the wheel plane, the end of the force arm is applied backwards for 60ON repetitive, horizontally oriented dynamic force test cycles. The maximum test frequency is described in ISO 4210 - 3: 2014, 4.5.

Bike Frame Front Fork Positive Disc Brake Fatigue Tester 220v





Minimum test cycle period

Type of bicycle City Bikes Children's bikes Mountain Bikes Racing

Test Cycles

C

 12000 12000 12000 20000
