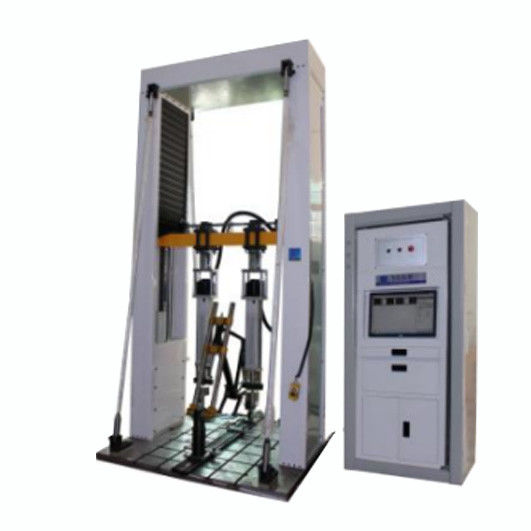

1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE , Calibration Certificate

Model Number: SL-BT100

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: negotiated

Packaging Details: plywood case

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Bicycle Module Dynamic Fatigue Tester, AC220V 15A Dynamic Fatigue Tester, 5Hz Dynamic Fatigue Tester


Capacity:	5000kgf*2sets	Resolution:	5‰
Electric Cylinder:	Electric Cylinder Servo Control	Displacement Stroke:	150mm
Frequency Range:	1-5Hz	Control Software:	Self-developed Special Software
Force Waveform:	Sine Wave	Weight:	420KG
Power Supply:	AC220V,15A	Dimension:	Test Bench:129017001930mm

Capacity:	5000kgf*2sets
Resolution:	5‰
Electric Cylinder:	Electric Cylinder Servo Control
Displacement Stroke:	150mm
Frequency Range:	1-5Hz
Control Software:	Self-developed Special Software
Force Waveform:	Sine Wave
Weight:	420KG
Power Supply:	AC220V,15A
Dimension:	Test Bench:129017001930mm

Product Description

Test principles Bicycle Module Dynamic Fatigue Tester

This instrument is manufactured in accordance with ISO 9001 international quality certification standards. The force calibration is in accordance with ISO 7500/1, EN 1002-2, BS 1610, DIN 5122, ASTM E4, JIS B7721/ B7733, CNS 9471/9470, JJG 475-88, ISO 4210 and other national standards. It is suitable for bicycle parts and materials, and the fatigue test of finished bicycle, with complete functions and wide application, and the test is in line with the bicycle test standards of various countries.

Technical parameters

Capacity	5000kgf*2sets
Stroke	150mm
Frequency range	1-5Hz
Force waveform	Sine wave
Weight	160KG
Power supply	AC220V,15A
Dimension	Test bench:129017001930mm Control cabinet: 6006001830mm (LWH)
Pitch of joint board	Min.height 50mm; Min.stroke 175mm.
Maximum spacing	650mm
Maximum height	1170mm
Minimum height	50mm
Computer hard disk	120G solid state host with dual network ports
IPC Configuration	Advantech IPC-310, motherboard ECO-1816

Tools Selection	Transmission crank fatigue test	Frame pedal force endurance test	Handlebar fatigue test

	Front fork fatigue test	Front fork disc brake torque test	Saddle fatigue test

Fixtures:

1 set of head tube uneven force test, 1 set of frame pedal force (pedaling force) test, 1 set of handlebar fatigue test, 1 set of fork fatigue test, 1 set of fork disc brake torque test, 1 set of saddle seat tube fatigue test.

Machine specifications: test range 1120mm, minimum width spacing 175mm, test range 475mm, front and rear test range 1000mm.

1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A 6
