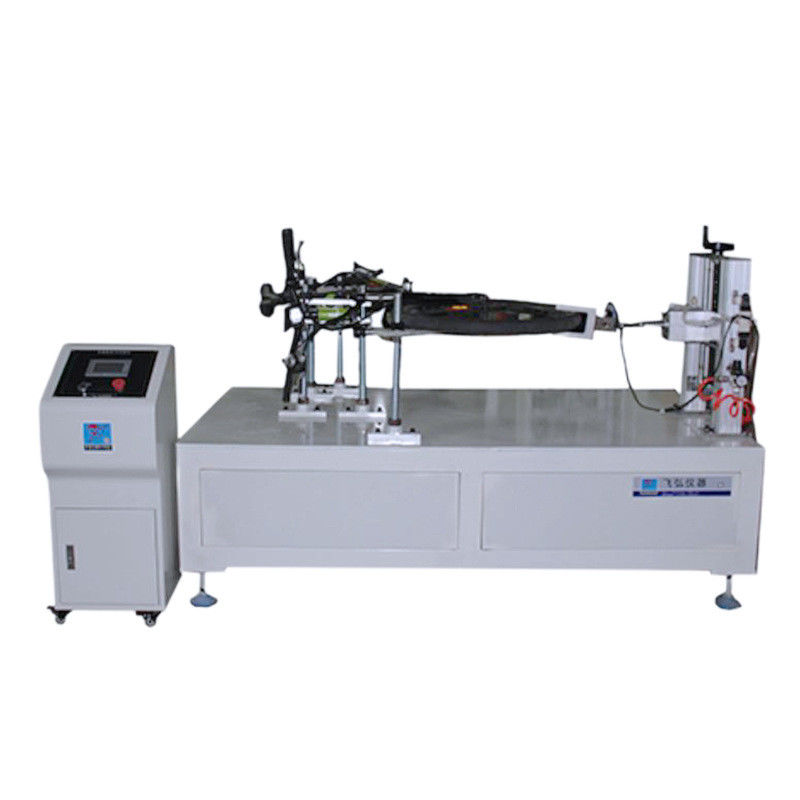

ISO 4210 Bicycle / Bike Wheel Holding Force Disengagement Tester PLC

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-BT103
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Load Element Capacity: 500kgf Timer: 0 ~60 S Adjustable
Accuracy: ±0.1s Loading Mode: Electric Loading
Control System: PLC Touch Human-machine Interface Control Dimension: 2000 X 850 X 2000mm(W*D*H)
Weight: 160kg Power Supply: AC220V, 15A
Highlight:

Bicycle Wheel Holding Force Tester

,

Bike Wheel Holding Force Tester

,

AC220V 15A Force Tester
Product Description

ISO 4210 Bicycle/Bike Wheel Holding Force Disengagement Tester

Test principles

According to EN14764:2005 , ISO4210-2014



Application Of  Bicycle/Bike Wheel Holding Force Disengagement Tester

Fasten the wheel to the frame and fork with nuts, test the front wheel clamping force by applying a force of 500N symmetrically on both sides of the front axle in the direction of front wheel disassembly, and hold for 30s to check the relative displacement between the front axle and the fork. To test the rear wheel clamping force, apply a force of 1000N symmetrically on both sides of the rear axle in the direction of the rear wheel disassembly and hold for 30s to check the relative displacement between the rear axle and the frame.



Technical parameters

Load element capacity 500kgf
Timer 0 ~60 s adjustable
Accuracy ±0.1s
Loading mode electric loading
Control system PLC touch human-machine interface control
Dimension 2000 x 850 x 2000mm(W*D*H)
Weight 160kg
Power supply AC220V, 15A
