Bicycle Crank Sprocket Combination Parts Fatigue Tester EN 14764

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-BT106
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Capacity: 5000kgf*1set Resolution: 5‰
Electric Cylinder: Electric Cylinder Servo Control Displacement Stroke: 150mm
Frequency Range: 1-5Hz Control Software: Self-developed Special Software
Force Waveform: Sine Wave Weight: 160KG
Power Supply: AC220V,15A Dimension: Test Bench:1950*450*900mm
Highlight:

Bicycle Sprocket Crank Fatigue Tester

,

Sprocket Combination Parts Fatigue Tester

,

EN 14764 Fatigue Tester
Product Description

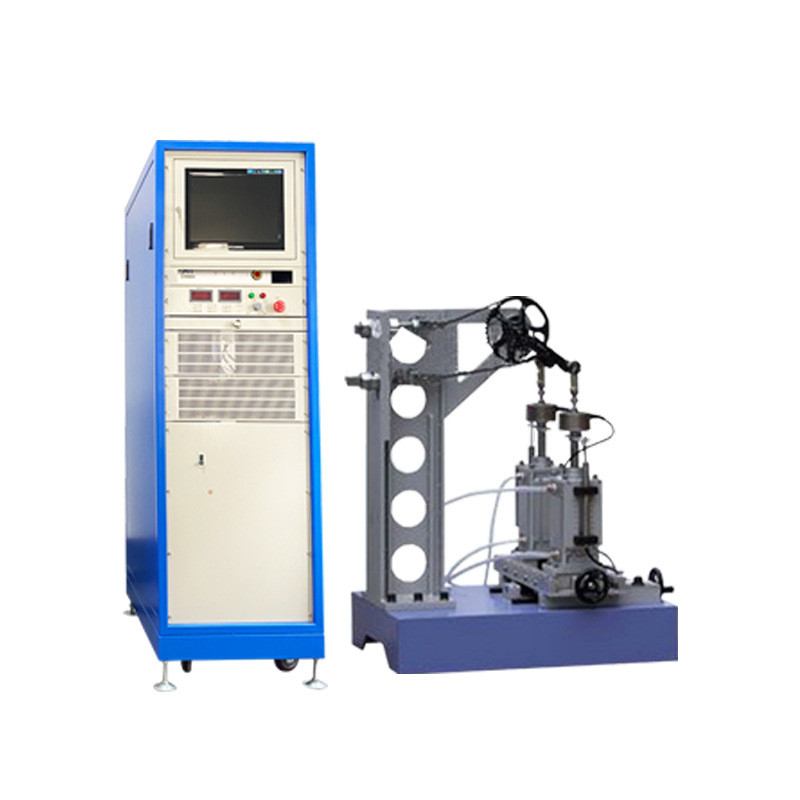

Bicycle Crank Sprocket Combination Parts Fatigue Tester EN 14764



Test principles

According to EN14764:2005 , ISO4210-2014



Application Of  Bicycle Crank Sprocket Combination Parts Fatigue Tester

This machine is used to simulate the actual use of the bicycle sprocket crank. A certain force is applied to the left and right footpegs at the use position. After a certain number of times, the wear and tear is detected.

Technical parameters

Capacity 5000kgf*1set
Resolution 5‰
Electric cylinder Electric cylinder servo control
Displacement stroke 150mm
Frequency range 1-5Hz
Control software Self-developed special software
Force waveform Sine wave
Weight 160KG
Power supply AC220V,15A
Dimension Test bench:1950*450*900mm Control cabinet: 600*610*1810mm (L*W*H)



Bicycle Crank Sprocket Combination Parts Fatigue Tester EN 14764
