PLC Bicycle Drive System Static Load Tester AC220V 15A

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-BT108
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Load: 0~2000N Can Be Adjusted Arbitrarily Force Display Accuracy: ≤±1%
Timer: ±100 Control System: PLC+touch Human-machine Interface Control
Software Interface: Self-developed Control System Dimension: Main Machine 2000×850×2000mm (W*D*H)
Weight: About 160KG Power Supply: AC220V,15A
Highlight:

AC220V 15A Static Load Tester

,

Bicycle Drive System Static Load Tester

,

PLC Static Load Tester
Product Description

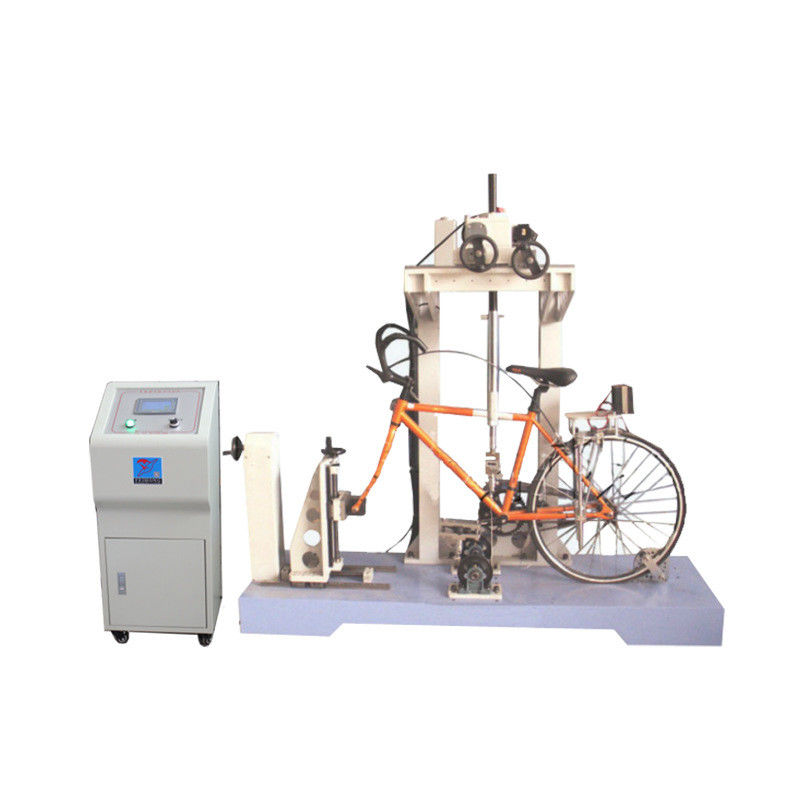

Bicycle Drive System Static Load Tester

ISO 4210 Bicycle Drive System Static Load Tester



Test principles

According to EN14764:2005 , ISO4210-2014



Application Of  Bicycle Drive System Static Load Tester

The static load test of the drive system is carried out on a combination of frame, footpegs, drive train and rear wheel components, including the gearbox. The frame is placed vertically in its center plane and the rear wheel is clamped at the wheel to prevent wheel rotation. Gradually apply a force of 600 N vertically downward to the center of the footpegs and hold the force at full load for 15 s. Inspect any parts of the test piece for fractures or permanent deformations, and for proper drive function.

Technical parameters

Load 0~2000N can be adjusted arbitrarily
Force display accuracy ≤±1%
Timer ±100
Control system PLC+touch human-machine interface control
Software interface Self-developed control system
Dimension Main machine 2000×850×2000mm (W*D*H)
Weight About 160KG
Power supply AC220V,15A



PLC Bicycle Drive System Static Load Tester AC220V 15A
