50HZ 5.5KW Bicycle / Bike Wheel Holding Force Disengagement Tester ISO 4210

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-BT104
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Load: 0-2000N (direct Pressure Type) Obstacle Angle: 45 Degrees
Power Supply: 380V±10% 50HZ 5.5KW Speed Regulation Range: 0.05~35000m/h(Any Setting)
Operation Direction: Support Forward And Reverse Rotation Pallet Lifting Range: 50~200 Mm
Absolute Error Of Measured Stroke Range Of Stroke Control: ≤±0.5m Absolute Error Of Measuring Time: 0.1sec
Highlight:

5.5KW Force Tester

,

2000N Force Testing Equipment

,

Reverse Rotation Force Tester
Product Description

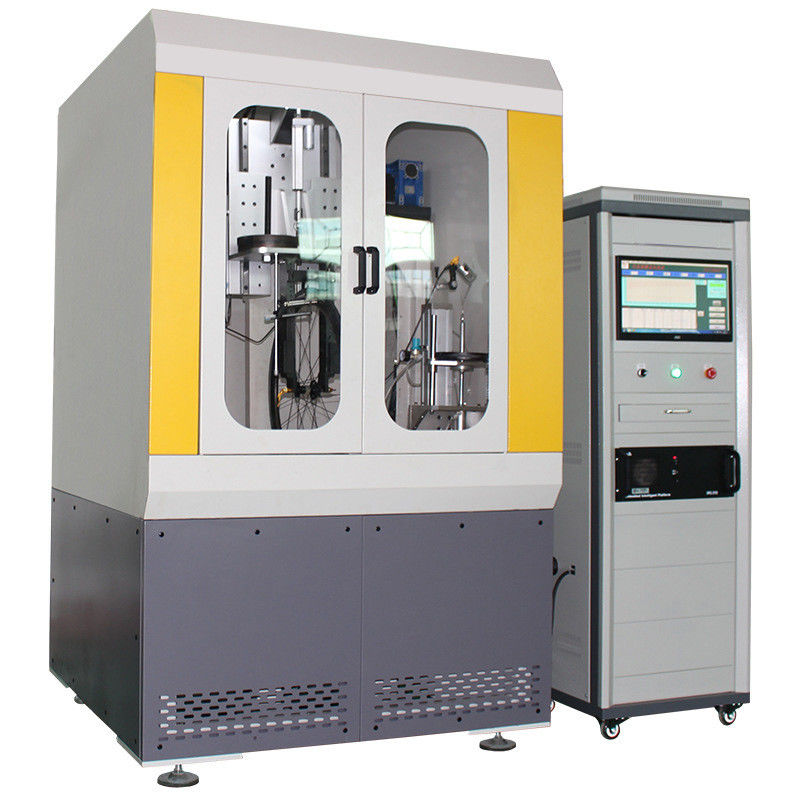

ISO 4210 Bicycle/Bike Wheel Holding Force Disengagement Tester

Test principles

According to EN14764:2005 , ISO4210-2014



Application Of  Bicycle/Bike Wheel Holding Force Disengagement Tester

With a large wheel as the active wheel to drive the wheel rim under test, it can be used for "dynamic walking test", "brake performance test" and "wheel static pressure test", which can be applied to It can be applied to "carbon fiber frame" for brake test; it is controlled by industrial control computer and can print test results by microform printer. The load is applied by weight stacking direct pressure type, more realistic simulation of the test environment and state; (fixture according to the customer to provide samples to meet)



Test Items

1. Weight test

2. Road test (plus obstacles)

3. Computer control

Technical parameters

Load 0-2000N (direct pressure type)
Obstacle angle 45 degrees
Power supply 380V±10% 50HZ 5.5KW
Speed regulation range 0.05~35000m/h(Any setting)
Operation direction Support forward and reverse rotation
Pallet lifting range 50~200 mm
Absolute error of measured stroke Range of stroke control ≤±0.5m
Absolute error of measuring time 0.1sec
Main box size 2900*1200*2500mm
Control box size 950*450*330 mm
Weight 510kg
Stroke 0.05-99.9km
