ASTM D217 Lubricating Grease Cone Penetration Meter 0～60s Automatic Timing

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-OA103
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Power Source:: AC 220V±10% 50Hz Timer: 0～60s Automatic Timing
Measurement Accuracy:: 0.01mm Standard Slide Bar: 47.5±0.05g
Standard Cone: 2.5±0.05g Environmental Requirements: Temperature 5～40℃; Humidity ≤85
Dimension: 560×345×625 (mm) Weight: 24kg
Highlight:

Cone Penetration Oil Analysis Testing Equipment

,

Lubricating Grease Cone Penetration Meter

,

Cone Penetration Oil Analysis Tester
Product Description

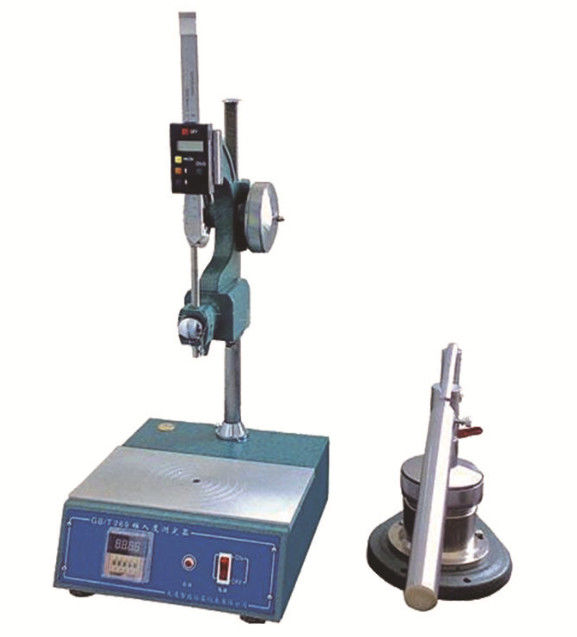

ASTM D217 Lubricating Grease Cone Penetration Meter

Product Description

Cone penetration tester, in accordance with the requirements of GB/T 4985, GB/T 4509, GB/T 269, ASTM D217, ASTM D1321 test methods, suitable for the determination of petroleum wax with a needle penetration not greater than 250, solid and semi-solid asphalt materials, grease and petrolatum (petroleum jelly) with a needle penetration range from (0 ~ 500) 1/10mm.



Technical Parameters

Power source AC 220V±10% 50Hz
Timer 0～60s automatic timing
Measurement accuracy 0.01mm
Standard slide bar 47.5±0.05g
Standard cone 2.5±0.05g
Environmental requirements temperature 5～40℃; humidity ≤85%
Size and weight 560×345×625 (mm); 24kg
