Noack Method Lubricating Oils Evaporation Loss Analyzer ASTM D5800 Standard

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-OA102
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Applicable Standard: SH/T0059;ASTM D5800 Temperature Control Mode: Digital Display PID Temperature Control
Temperature Control Range: Room Temperature ~ 250 ± 0.1 ℃, Precision 0.01 ℃ Heating Mode: Metal Bath Heating
Pressure Regulation: High Precision Needle Valve Suction Method: Vacuum Pump
Differential Pressure Meter: Imported Precision Slant Tube Differential Pressure Meter
Highlight:

Noack Method Evaporation Loss Analyzer

,

Lubricating Oil Evaporation Loss Tester

,

ASTM D5800 Evaporation Loss Analyzer
Product Description

ASTM D5800 Standard Noack Method Evaporation Loss Analyzer Lubricating Oils Evaporation Loss Tester

Lubricating Oil Evaporation Loss Tester A Method












Product Description

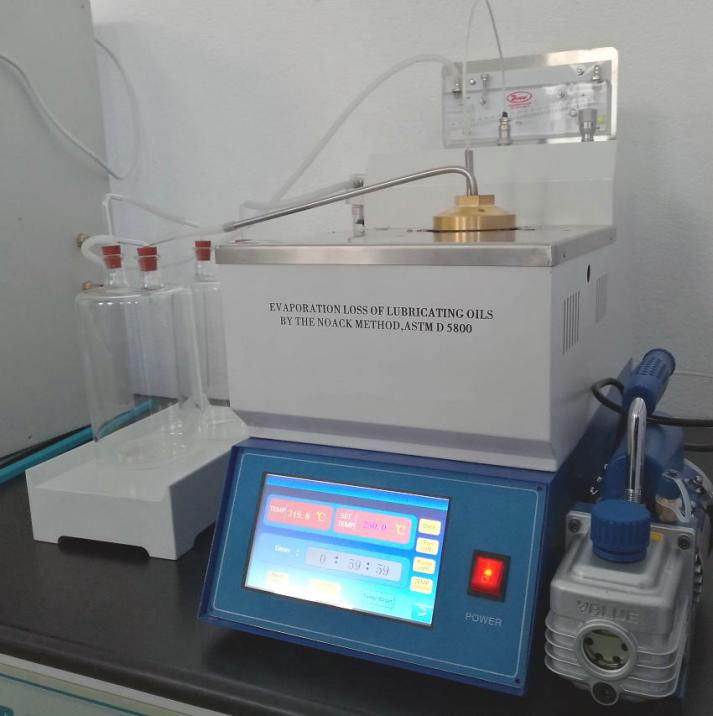

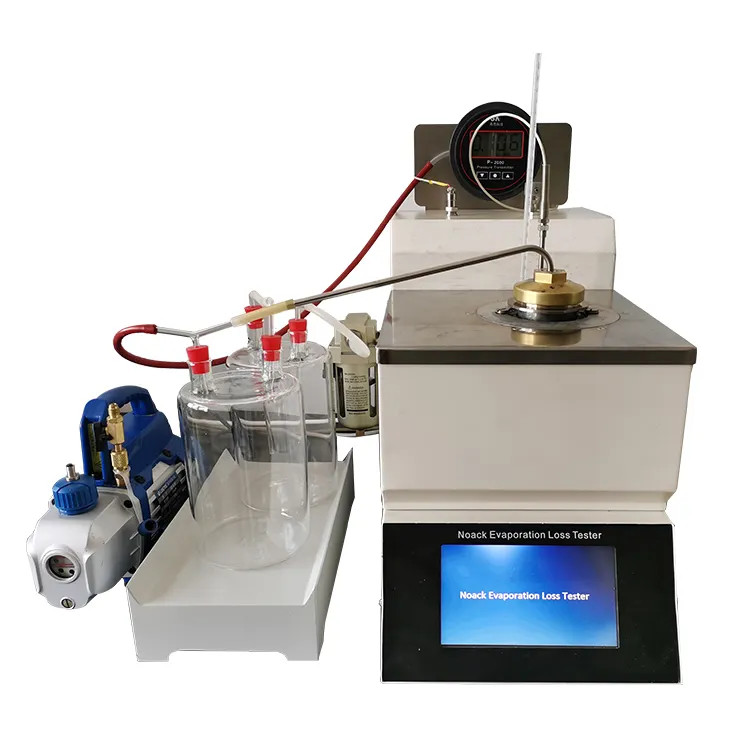

This instrument is designed and manufactured as per procedure A of SH/T 0059 and procedure A of ASTM D5800 Standard Method for Evaporation Loss of Lubricating Oils by the Noack Method.

It is used to determine the evaporation loss of lubricating oils (particularly engine oils). The evaporation measured is reported as percent total loss.



Working conditions

1. The instrument should be placed on a fixed and flat workbench. Cross-ventilation should be avoided as far as possible in the environment.

2. No naked fire is allowed around the instrument during operation because of inflammable materials.

3. The instrument should be placed in the dry and ventilated environment.

4. The power supply should be single-phase and three-wire. The instrument must be grounded well.

Technical Features

This instrument is mainly composed of a heating bath and a filtering unit. It has below features:

1. Metal-blocked heating bath. Safe and environmental.

2. Wood-metal is used to provide good heating performance.

3. Specialized vacuum filtering system is equipped.

4. A digital timer is equipped for recording the test time.

5. International brand needle valve and precise pressure regulation system makes the flow correct.

6. Colored touch LCD operation. Easy to use.



Technical Parameters

Applicable standard

SH/T0059

Temperature control mode

digital display PID temperature control

Temperature control range

room temperature ~ 250 ± 0.1 ℃, precision 0.01 ℃

Heating mode

metal bath heating

Pressure regulation

high precision needle valve

Suction method

vacuum pump

Differential pressure meter

imported precision slant tube differential pressure meter
