ASTM D93 Oil Analysis Equipment Closed Cup Flash Point Tester With LCD display

Name: ASTM D93 Oil Analysis Equipment Closed Cup Flash Point Tester With LCD display
Brand: SKYLINE
SKU: SL-OA10
Rating: 4.8 (166 reviews)

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE , Calibration Certificate

Model Number: SL-OA10

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: negotiated

Packaging Details: plywood case

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                oil analysis equipment, oil testing equipment


SKYLINE:	Closed Cup Flash Point Tester	Standard:	ASTM D93
Oil Cup Inner Diameter:	50.7mm~50.8mm.	Oil Cup Depth:	55.7mm~56.0mm
The Scribed Line Depth Of Capacity Of Testing Oil:	33.9mm~34.3mm.	Capacity Of Testing Oil::	About 70ml
Thermometers:	Scale 20°C~150°C, Division 1°C.	Keywords:	Oil Analysis Equipment
Name:	Closed Cup Flash Point Tester

SKYLINE:	Closed Cup Flash Point Tester
Standard:	ASTM D93
Oil Cup Inner Diameter:	50.7mm~50.8mm.
Oil Cup Depth:	55.7mm~56.0mm
The Scribed Line Depth Of Capacity Of Testing Oil:	33.9mm~34.3mm.
Capacity Of Testing Oil::	About 70ml
Thermometers:	Scale 20°C~150°C, Division 1°C.
Keywords:	Oil Analysis Equipment
Name:	Closed Cup Flash Point Tester

Product Description

ASTM D93 Flash Point Oil Analysis Equipment Closed Cup Flash Point Tester

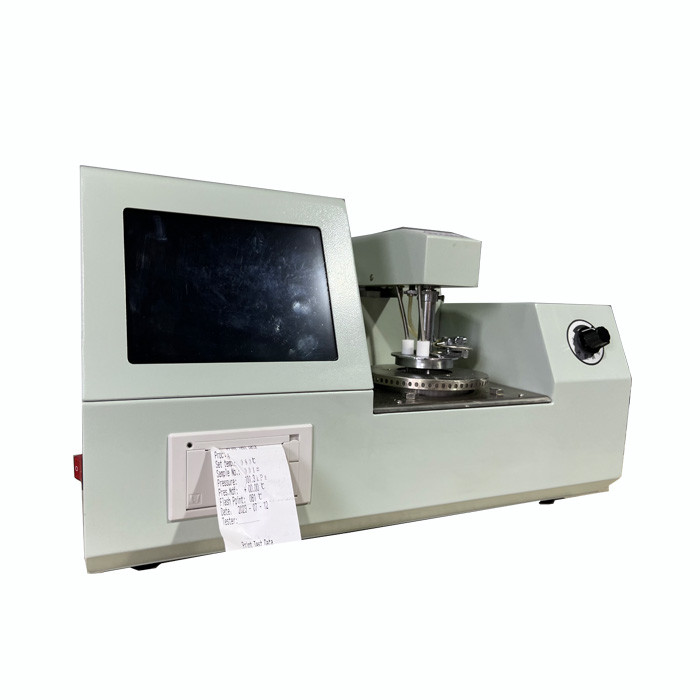

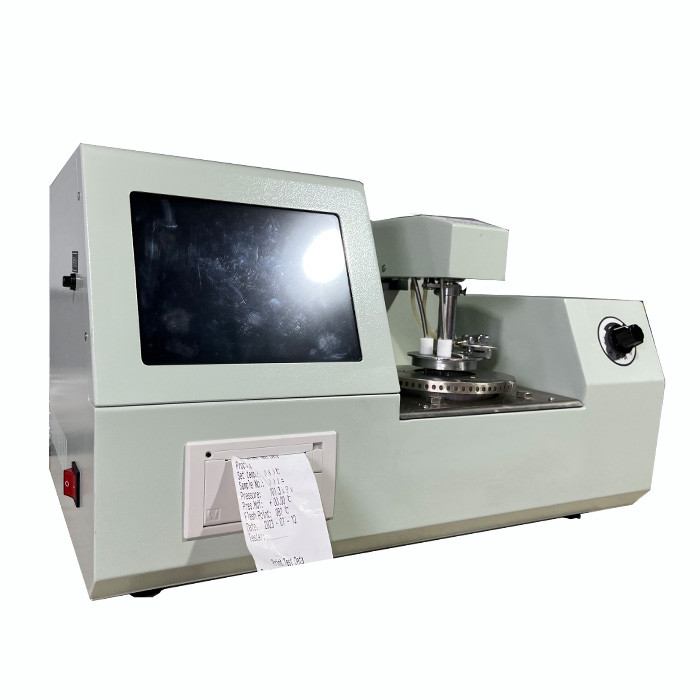

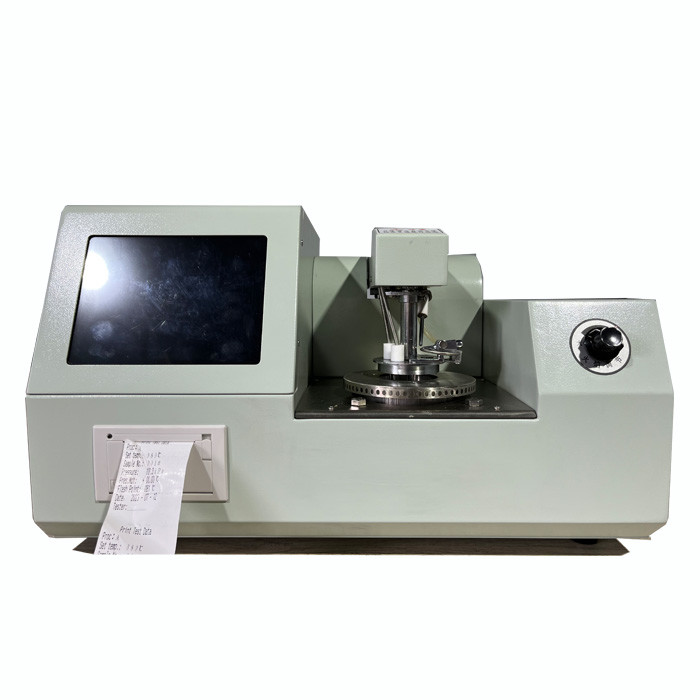

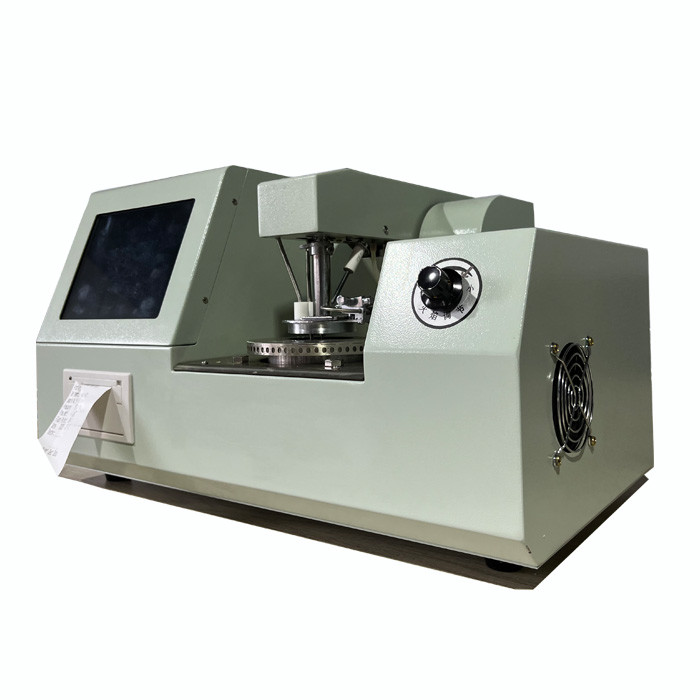

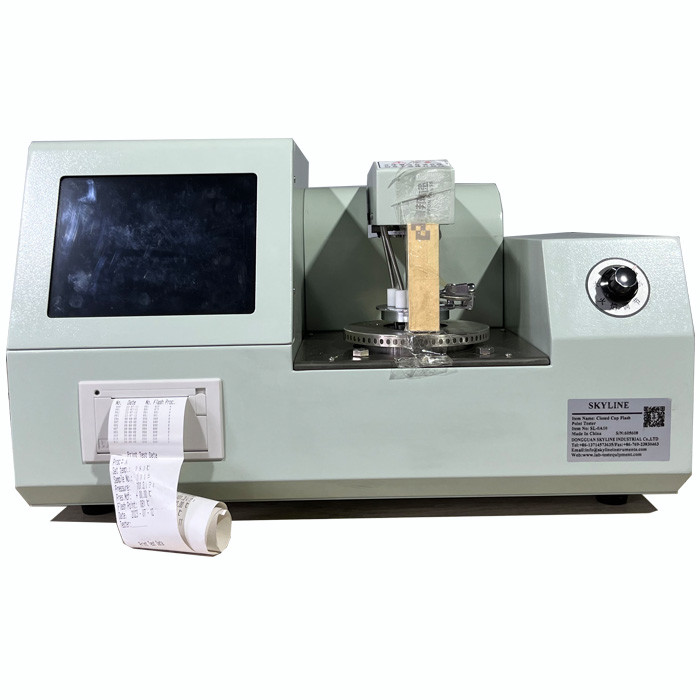

ASTM D93 Oil Analysis Equipment Closed Cup Flash Point Tester With LCD display 0

Description Of Closed Cup Flash Point Tester

Closed Cup Flash Point Automatical Measuring Instrument is mainly used for the determination of closed flash point value of petroleum products. The instrument adopts microcomputer technology, large screen LCD liquid crystal display, Chinese menu, power failure storage, instrument has automatic ignition, display, Locking and printing results, automatic cooling and other functions, with the advantages of accurate measurement, good repeatability, stable and reliable, easy to operate. Widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments, in line with ASTM D93, standard method requirements.

Features

1. This instrument is designed as per ASTM D93.

2. The heating power is continuously and sleeplessly adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.

3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.

4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.

Specifications

Display	large screen LCD display (320 × 240)
Measuring range	room temperature ~ 300 ° C
Temperature detection	platinum resistance
Accuracy	≥104°C±2°C ≤104°C±1°C
Ignition mode	electric ignition
Information storage	200 analysis results can be stored
Cooling method	forced air cooling
Printing machine	thermal, Chinese characters, 40 lines
Self-test function	test head, igniter, fan, etc
Repetitive	in accordance with ASTM D93
Power source	AC 220V ± 11V, 50Hz ± 2.5HZ
Power	≤350VA
Ambient temperature	10 ° C ~ 35 ° C
Use ambient humidity	≤ 85%
