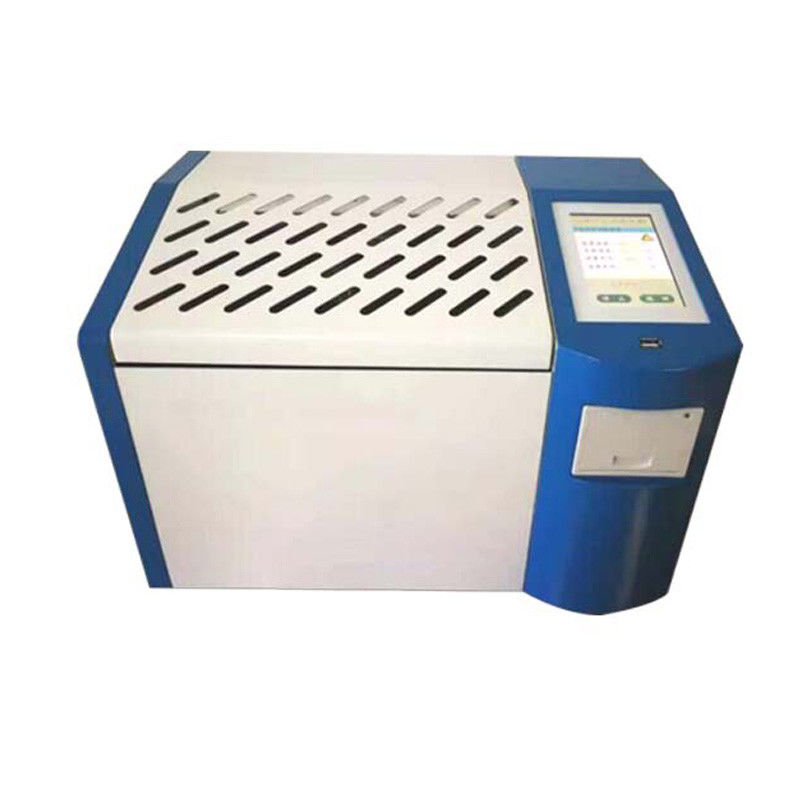

Automatic oil dielectric loss and volume resistivity tester

Place of Origin CHINA
Brand Name SKYLINE
Certification CE , Calibration Certificate
Model Number SL-0A30
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Volumetric Resistivity Measurement Voltage: DC500V±10% Volume Resistivity Range: 2.5×10 6～2×10 13Ω.m
Accuracy: Higher Than ±10% Resistance Measurement Range:: 2M～2TΩ
Temperature-controlled Induction Furnace Maximum Power: 0.00001～1 Resolution Of Dielectric Loss Value: 0.00001
Capacitance Measurement Range: 10.0pF～200.0pF Resolution Of Capacitance Value: 0.01pF
Empty Cup Capacitance: 60±5pF Dissipation Value Measurement Accuracy: ± (1% Reading Value + 0.02%)
Capacitance Value Measurement Accuracy: ± (1% Reading Value + 1pF) Working Power Supply: AC220V±10%, 50Hz
Measurement And Control Temperature Range: Room Temperature ~ 119.9 ℃ Measurement And Control Temperature Stability: ± 0.5
Relative Humidity: ≤85% Dissipation Measurement Voltage: 1.5kV, 2.0kV, 2.5kV (conventional)
Ambient Temperature: -5℃～50℃ Dimension: 480mm×400mm×420mm
Weight: 25.7kg
Highlight:

oil analysis lab equipment

,

oil analysis equipment
Product Description

IEC 60247 INSULATION OIL DIELECTRIC LOSS AND RESISTIVITY TESTER



Introduction Insulation Oil Dielectric Loss And Resistivity Tester

The automatic oil dielectric loss and volume resistivity tester conforms to GB/T5654 standard and is used to determine the dielectric loss factor and volume resistivity of insulating materials that are liquid at the test temperature.
It is used to determine the dielectric loss factor and volume resistivity of insulating materials in liquid form at test temperature, including insulating liquids such as transformers, cables and other electrical equipment. Can be widely used in
Electric power, petroleum, chemical industry, commodity inspection and scientific research and other departments.

Characteristic

1, using medium frequency induction heating, room temperature heating to control temperature (90 ℃)
And constant temperature automatic measurement only 15 minutes
2, Measure oil dielectric loss and volume resistivity at the same time or choose one
3, Adopt large screen LCD display, just follow the Chinese menu
prompt, enter the command, the instrument can work automatically
4, With communication function, can configure computer for real-time monitoring.
Dynamic observation of oil dielectric loss value with oil temperature changes and depicted as a graph
5, Automatic display of measurement results, and data printing and saving
6, With over-voltage, over-current, short-circuit protection, and high voltage
indicates, also has the alarm prompt function



Technical parameters

Volumetric resistivity measurement voltage: DC500V±10%
- Volume resistivity range: 2.5×10 6～2×10 13Ω.m
- Accuracy: higher than ±10%
- Resistance measurement range: 2M～2TΩ
- Dissipation measurement range: 0.00001～1
- Resolution of dielectric loss value: 0.00001
- Capacitance measurement range: 10.0pF～200.0pF
- Resolution of capacitance value: 0.01pF
- Empty cup capacitance: 60±5pF
- Dissipation value measurement accuracy: ± (1% reading value + 0.02%)
- Capacitance value measurement accuracy: ± (1% reading value + 1pF)
- Working power supply: AC220V±10%, 50Hz
- Measurement and control temperature range: room temperature ~ 119.9 ℃
- Measurement and control temperature stability: ± 0.5
- Relative humidity: ≤85%
- Dissipation measurement voltage: 1.5kV, 2.0kV, 2.5kV (conventional)
(2.0kV) (positive connection) - Ambient temperature: -5℃～50℃
- Dimension: 480mm×400mm×420mm
- Weight: 25.7kg
