Home > products > Environmental Test Chamber > IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester

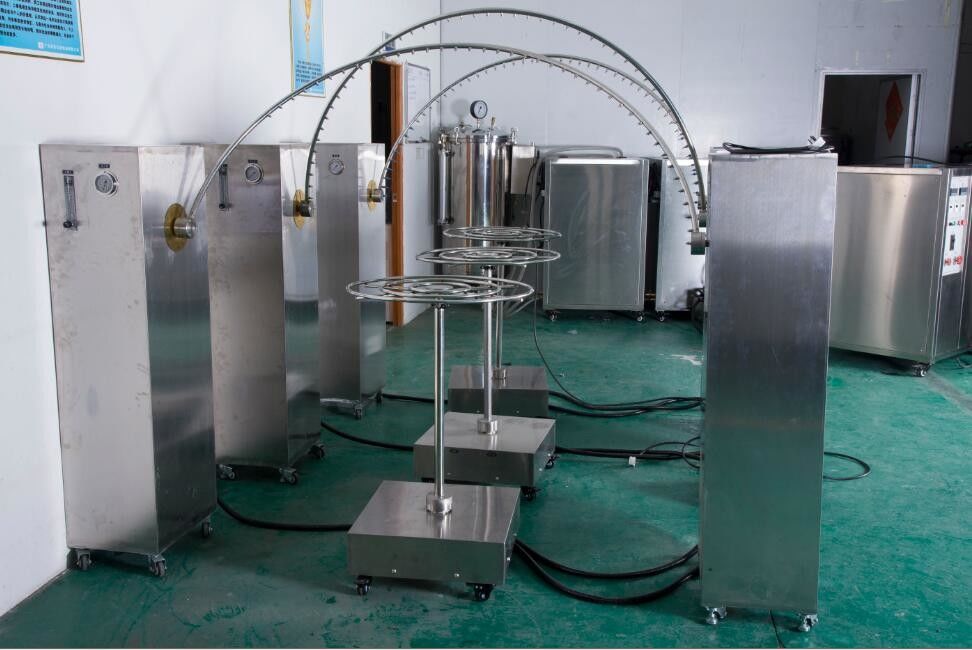

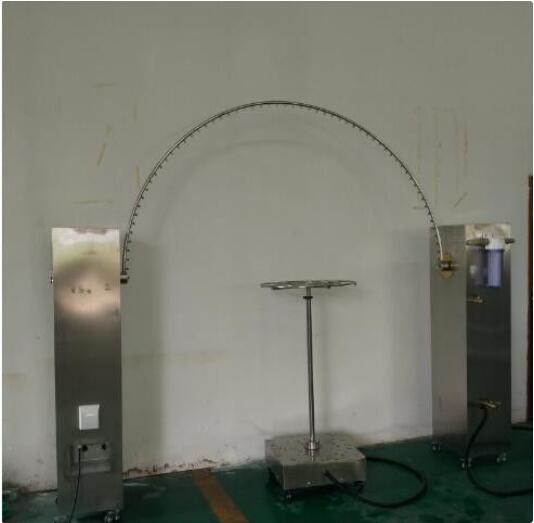

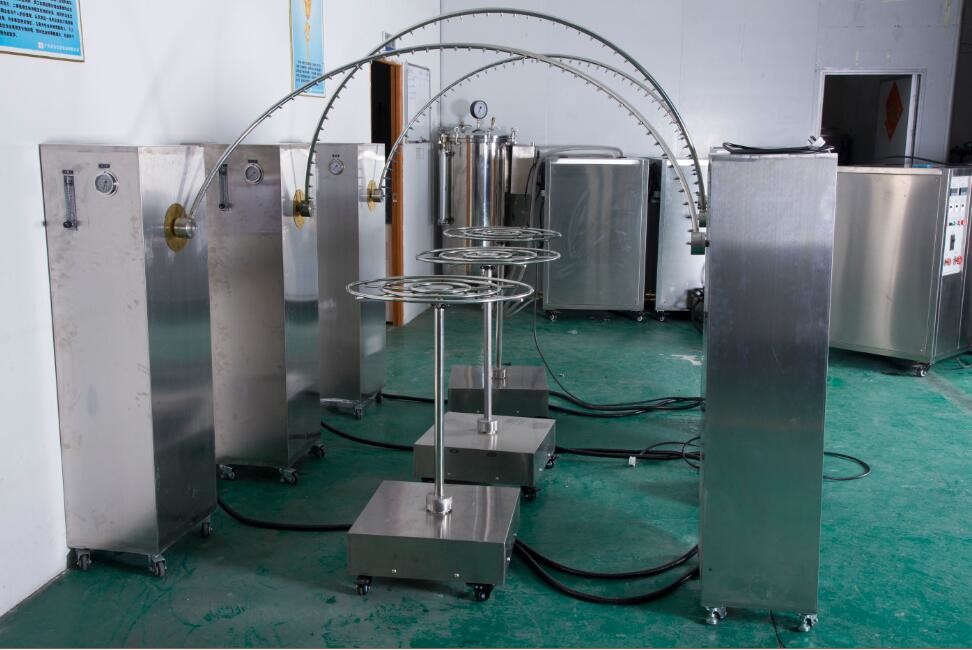

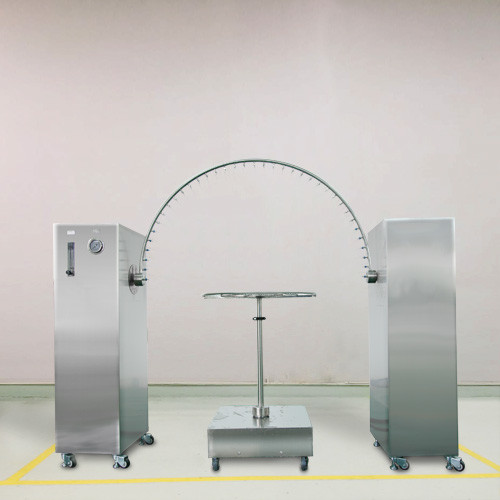

IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester
IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester
IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester
IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester

IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-IPX3X4A

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 10 pcs/ month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

environmental testing equipment

,

environmental testing machine

SKYLINE:
IPX3 IPX4 Water Spray Tester
Material:
Stainless Steel
Endulum Angle:
IPX3: 120°(±60°); IPX4: 360°(±180°)
Swing Pipe Speed:
IPX3: 4s/time (2x120°) IP4X: 12s/time (2x180°)
Water Discharge:
1-10L/min, Adjustable
Swivel Table Diameter:
700mm
SKYLINE:
IPX3 IPX4 Water Spray Tester
Material:
Stainless Steel
Endulum Angle:
IPX3: 120°(±60°); IPX4: 360°(±180°)
Swing Pipe Speed:
IPX3: 4s/time (2x120°) IP4X: 12s/time (2x180°)
Water Discharge:
1-10L/min, Adjustable
Swivel Table Diameter:
700mm
Product Description

IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester



Application of environmental test chamber

The rain test system is strictly designed according to IEC60529. It’s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.



Technology Parameter

 Power Supply  Single phase: AC220V, 50Hz
 Swing Pipe diameter  19mm, thickness 2mm
 Swing Pipe radius  R800 (304 stainless steel)
 Orifice diameter  0.4mm
 Orifice angle

 IPX3: 120°;

 IP4X: 180°
 Pendulum Angle

 IPX3: 120°(±60°);

 IPX4: 360°(±180°)
 Swing Pipe Speed

 IPX3: 4s/time (2x120°)

 IP4X: 12s/time (2x180°)
 Water discharge  1-10L/min, adjustable
 Test time  0-999mins, can preset
 Swivel table diameter  700mm
 Swivel table speed  (1-5) rpm
 Tiltable Angle  15°
 Swivel table rotation angle  900°,continuous rotation
 Pressure Gage  0~0.25MPa



The tubes oscillate to almost 180 ° either side of vertical. The degree of oscillation can be set on the touch screen controller or one of the three pre-set values, 90 ° , 120 ° , or almost 180 ° , can be selected.



A specimen support is also included. It is supplied with two specimen bases - one perforated for IPX4 and one non-perforated for IPX3. The support is made from stainless steel and mounted on wheels for easy maneuverability and adjustment. It offers height adjustments that range from 855mm to 1300mm. The oscillating tubes are manufactured with orifice radii of 200 mm to 1600 mm with a progressive ratio of 200 mm.



Features of environmental test chamber

1.Material: stainless steel

2.Accurate flow adjustable

3.Steady swing

4.The pedndulum pile can do 1600mm

5.Professional rain room is required



IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester 0
