Description

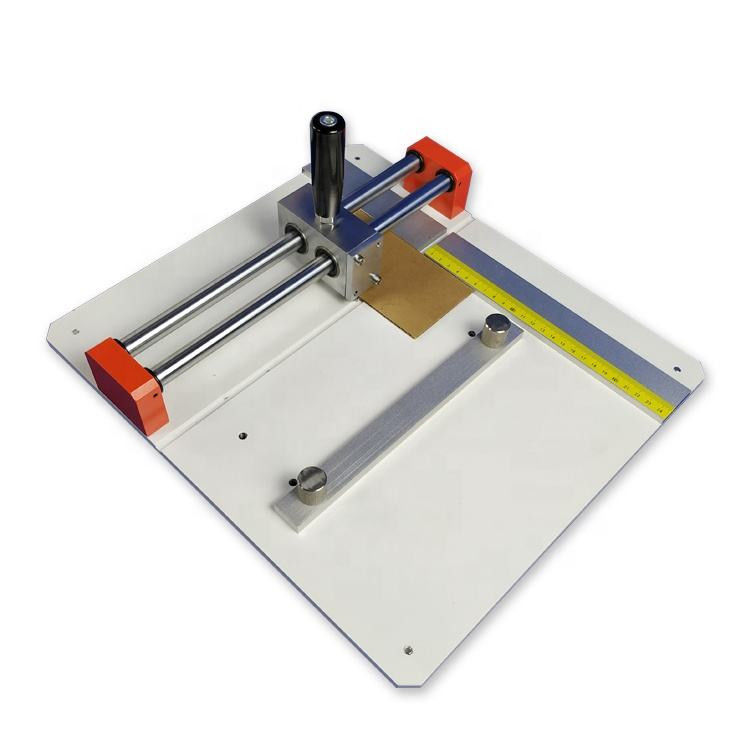

ECT Edge Crush Corrugated paper sample cutter is an indispensable special sampling instrument for edge crush test and adhesive strength test of corrugated boards, can quickly and accurately cut the sample of given size, and is an ideal auxiliary appliance for departments of production, scientific research and quality supervision and inspection of corrugated boards and cartons.
Test Standards
BS EN ISO 3037 ISO 3037, Fefco T8, Tappi T 839, T 838 T 811 and so on.
Features
1.Can cut out the sample with accurate parallelism, have scribe, can set the parallel distance;
2.Adopt imported slide rails, which are closely matched with Japanese imported blades, and can easily cut multi-layer cardboard samples;
3.The scale is laser-engraved, scale clear, durable, easy to clean;
4.With a powerful magnet, the blade is easier to install.
Technical parameters
| Adjustable Spacing |
25, 60, 85, 100mm |
| Sample size |
25*100mm (ECT) 25*80mm (adhesive)
|
| Machine Size |
430*380*200mm |
| Machine Weight |
15KG |
