ISTA 1A Transportation Vibration Testing Machine For Toys Electronics / Package

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-T18
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, T/T,
Supply Ability 10 pcs/ month
Product Details
SKYLINE: Vibration Testing Equipment Vibrating Frequency: 100-300rpm
Vibrating Range: 25.4mm(1") Maximum Load: 100kg 300kg 500kg 1000kg
Effective Area Of Table: 110 X 98CM 130 X 120CM 180 X 150CM Dimemsion: 120 X 110CM 140 X130CM 190 X 160CM
Highlight:

environmental testing equipment

,

uv accelerated weathering tester
Product Description

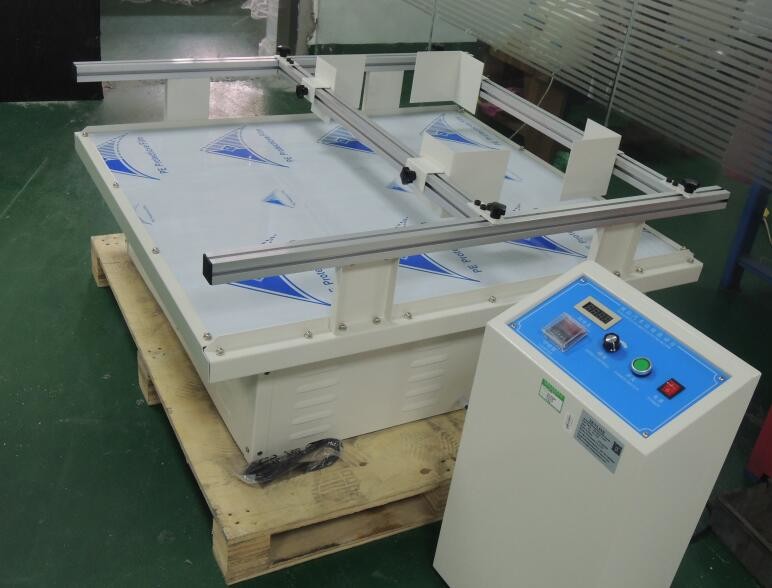

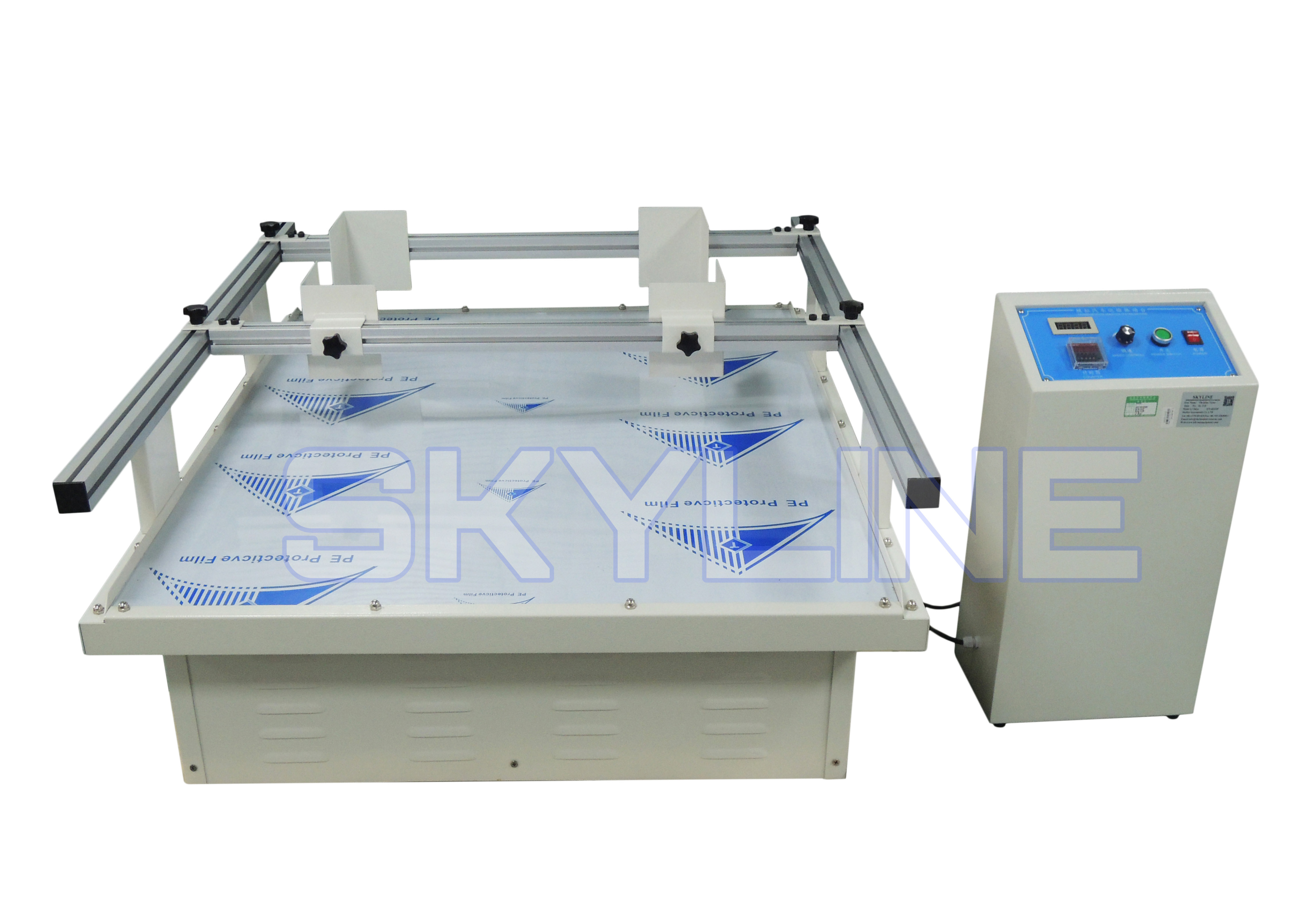

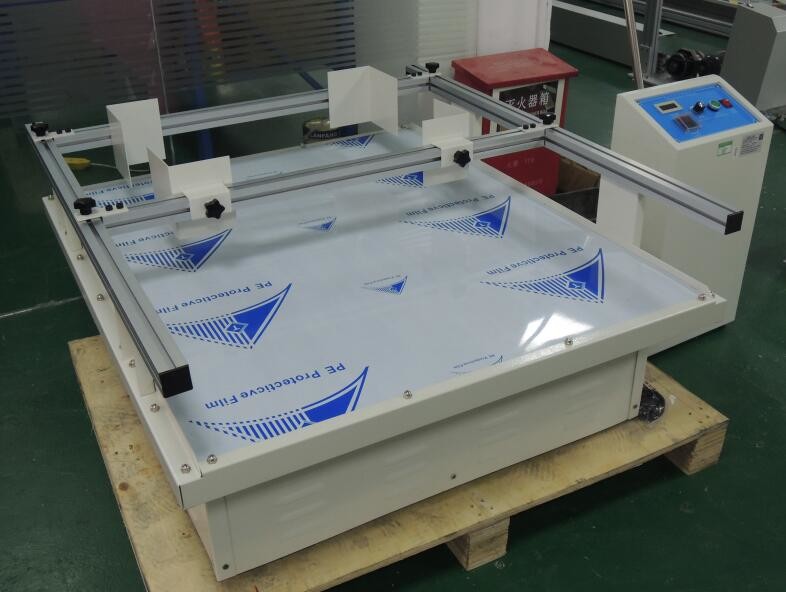

Transportation Vibration Tester for Toys Electronics and Package



Application

Universal Vibration Test Machine/Simulated Transport Vibration Tester is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics, equipment, etc., under simulated transport conditions, according to American and EU transport standard (ASTM,IEC).


Simulation products in transportation state of environmental assess product packaging design, the rationality and structure strength.

Test object:Packaging for shipment of the products.
Test program:Will the packaging products with a certain speed vibration corresponding time.
Result assessment: By vibration testing products shall promote function and appearance were damaged.



Technical parameters

 Vibrating frequency

 100-300rpm

 Vibrating range

 25.4mm(1")

 Timer

 0-99999 hour

 Vibrating manner

 Rotary (positives type)turn

 Maximum load

 100kg 300kg 500kg 1000kg

 Effective area of table

 110 X 98CM 130 X 120CM 180 X 150CM

 Motor

 1HP(750W) 3HP(2.25kw) 5HP(3.75KW) 7HP(5.25KW)

 Dimemsion

 120 X 110CM 140 X130CM 190 X 160CM



Transportation Vibration Testing Machine.pdf



ISTA 1A Transportation Vibration Testing Machine For Toys Electronics / Package
