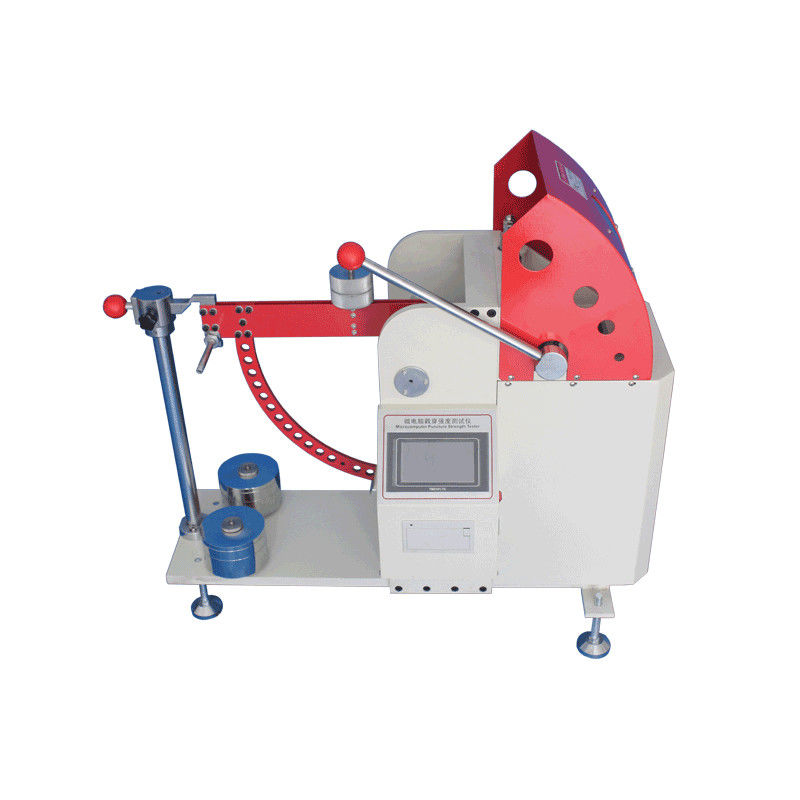

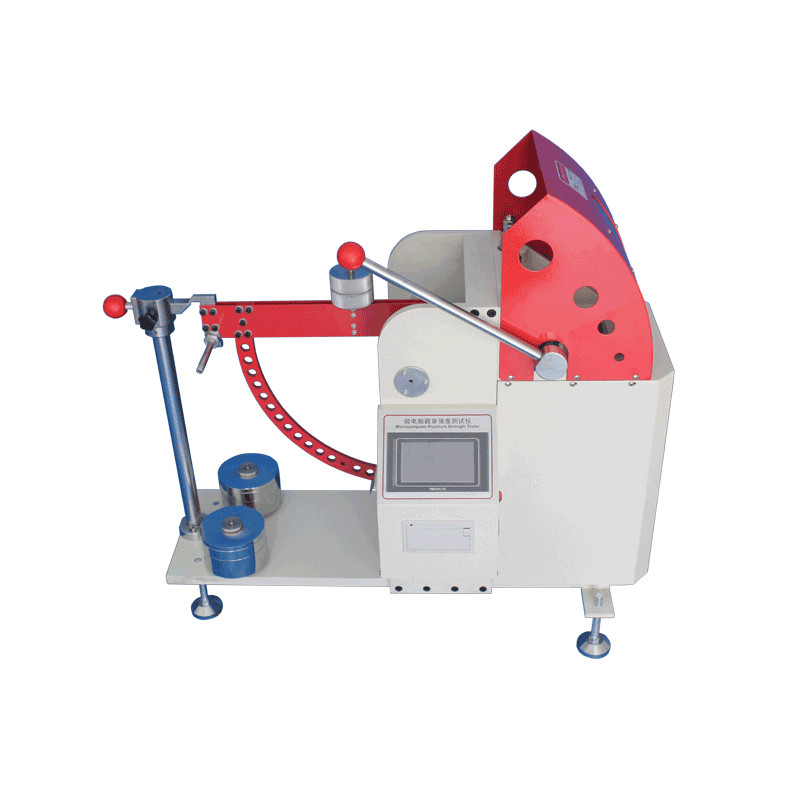

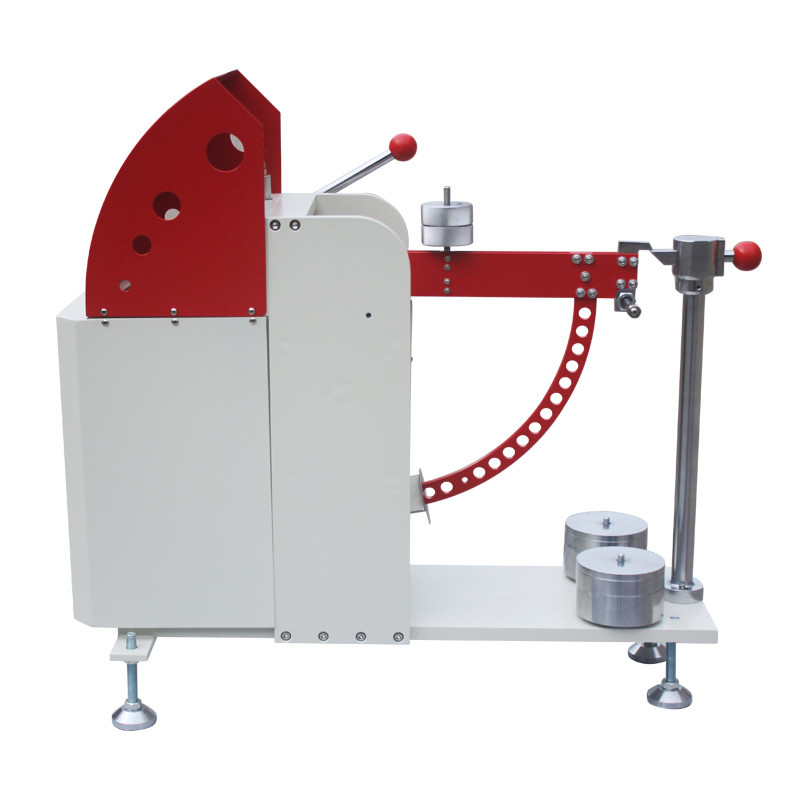

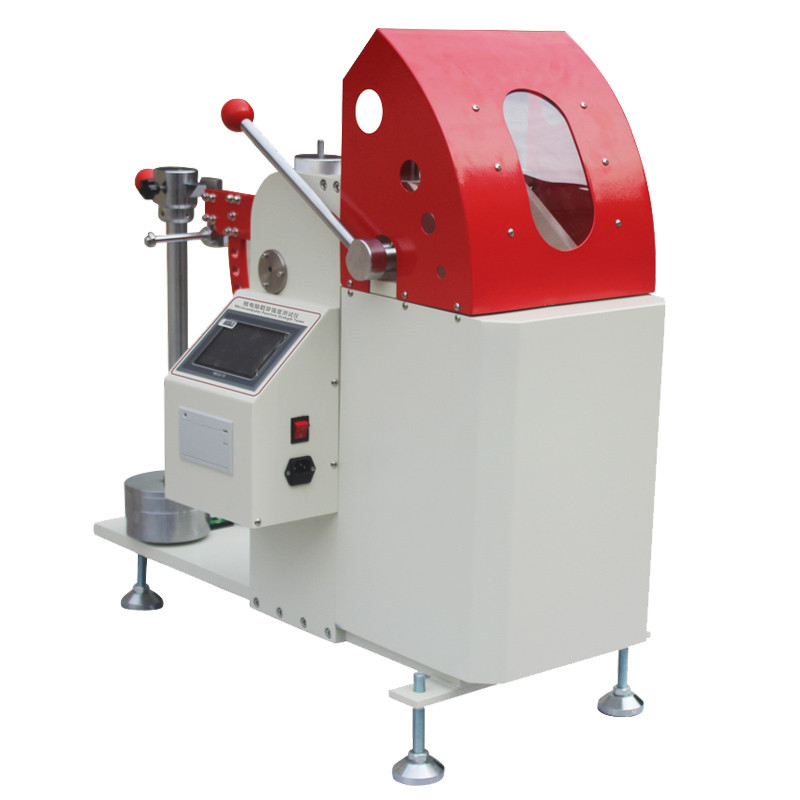

Puncture Strength Tester Cardboard Puncture Strength Tester
Product use overview
Computer Intelligent Corrugated Cardboard Puncture Strength Tester is a special testing instrument for corrugated cardboard puncture resistance (puncture strength). This instrument has a fast compression, automatic reset of the operating handle and reliable safety protection, with liquid crystal display, Thermal printer and other characteristics, applicable to a wide range of cardboard, cardboard, carton production, scientific research and commodity inspection and other enterprises and departments indispensable and commonly used instruments. This instrument conforms to the following standards: the product reference ISO 3036 (cardboard a puncture strength determination GB2679-7 "cardboard puncture strength determination method") The relevant provisions of the design
Features
1. Microcomputer control technology, open structure, high automation procedure, simple and convenient operation, safe and reliable.
2. Full-automatic measurement, intelligent judgement function, operating system real-time display of measurement results.
3. Automatic measurement, statistics, printing test results, and has the function of data preservation.
4. Touch screen operating system, configure Chinese graphic menu display operating system, easy to use.
5. High-speed micro-printer, high-speed printing, easy to use, low-fault
6. Electromechanical integration of modern design concepts, compact structure, beautiful appearance, convenient maintenance
Technical Parameters
| Instrument weight |
110kg |
| Pointer friction |
<0.25) |
| Measuring range |
(1~48)J |
| Edge radius |
(1.5±0.1)mm |
| Power supply |
AC220V±10% 2A 50HZ |
| Overall Dimension |
800x500x750mm |
| Working environment |
Temperature 5~35°C, Relative humidity not more than 85 |
| Pendulum friction and air resistance |
>120 times (measured by the number of swinging arm oscillations) |
| Characteristic dimensions of angular cone three bottom edge length |
60mmx60mmx60mm, height(25±0.7)mm |
| Trial value error |
A scale:±0.05J;B scale:±0.1J, C:scale:±0.2J, D scale:±0.5J (within 20%~80% of the upper limit of measurement for each grade) |
