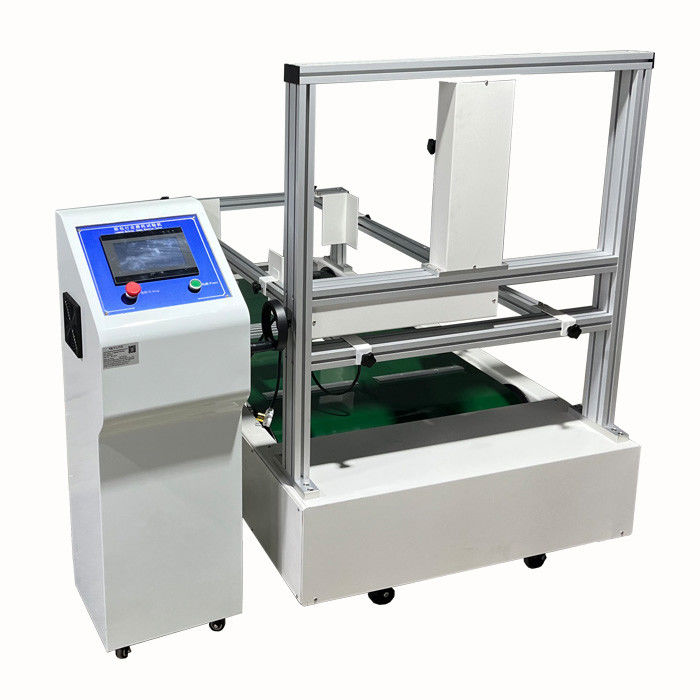

Adjustable Speed Mileage Tester Machine With Standard Accessories

Place of Origin China
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-TL01
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 35 working days
Payment Terms Western Union, T/T,
Supply Ability 2 pcs/ month
Product Details
SKYLINE: Mileage Tester With Standard Accessories Test Speed: Adjustable 5 Km/H
Load: Max 50 Lb Up And Down: MAX: 300 Mm
Dimension: 2100x1260x2000 LxWxH Weight: 400kg
Highlight:

adjustable speed mileage tester

,

mileage tester with standard accessories

,

adjustable speed mileage testing machine
Product Description



luggage fatigue bump tester suitcase walk jolt mileage abrasion test machine/luggage walked wear test machine

QB/T 2920-2007 Brand New Mileage Tester With Standard Accessories (Luggage inspection Machine)



Product information

This machine is designed to determine the caster durability of luggage, which is rubbed against a coarse leather surface. Check the damage of casters after the luggage is being rubbed for a given stroke.



Technical Parameter

Miles Tester (Technical Specifications)

Input voltage specifications

 Project  specifications
 Voltage  single-phase AC220V (± 5V), 10A / 50HZ fuse
 Frequency  input range: 50Hz



Technical requirements

 Project  specifications
 Test speed(KM))  0-5
 Time memory  can display 0 ~ 99999 hours, power failure memory type
 Pang slope  5mm / 8 / asymmetric configuration
 Belt size  390 * 82cm (Switzerland HABASIT)
 Auxiliary function bag angle  adjustment device (with set time automatically shut down)
 Motor  AC variable frequency motor
 Drive mode  electric drive
 Test programming  1 to 10 paragraphs
 Pause time  999 minutes can be set
 Single-segment running time  9999 can be set
 Operating load  50Kg



Adjustable Speed Mileage Tester Machine With Standard Accessories

Luggage inspection Machine.pdf


Adjustable Speed Mileage Tester Machine With Standard Accessories
