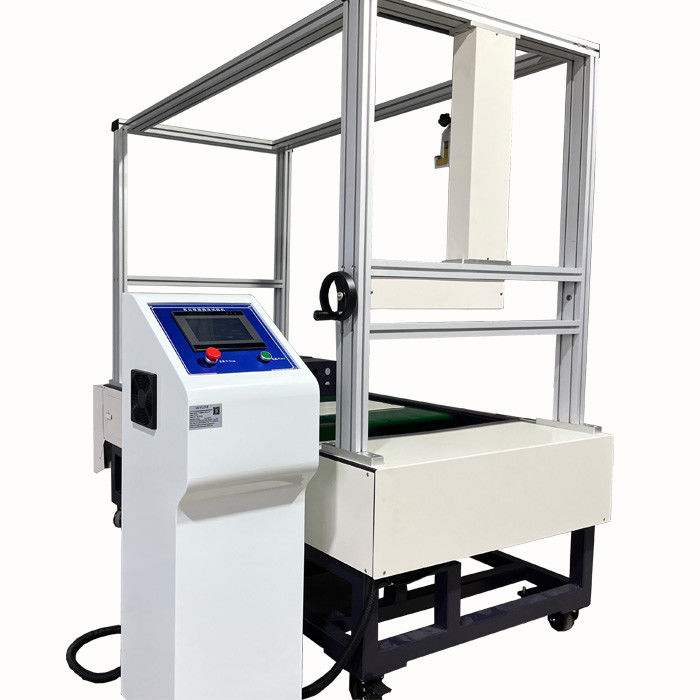

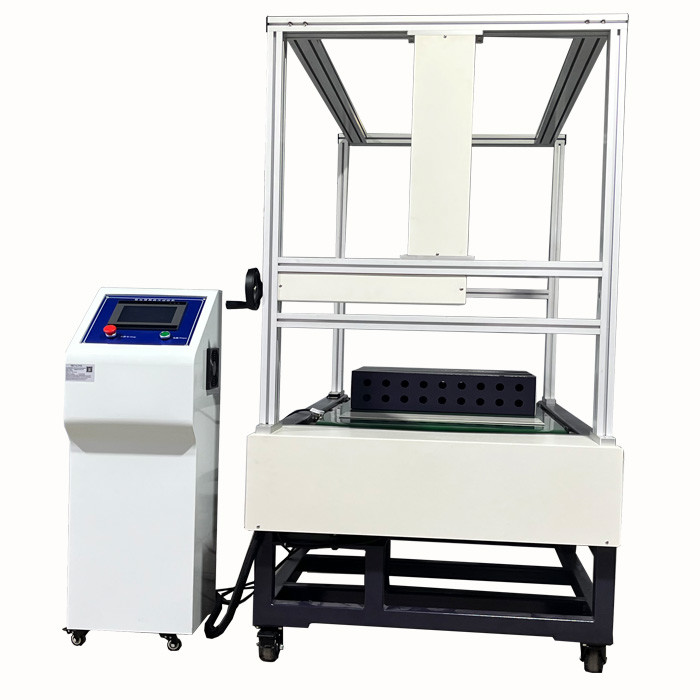

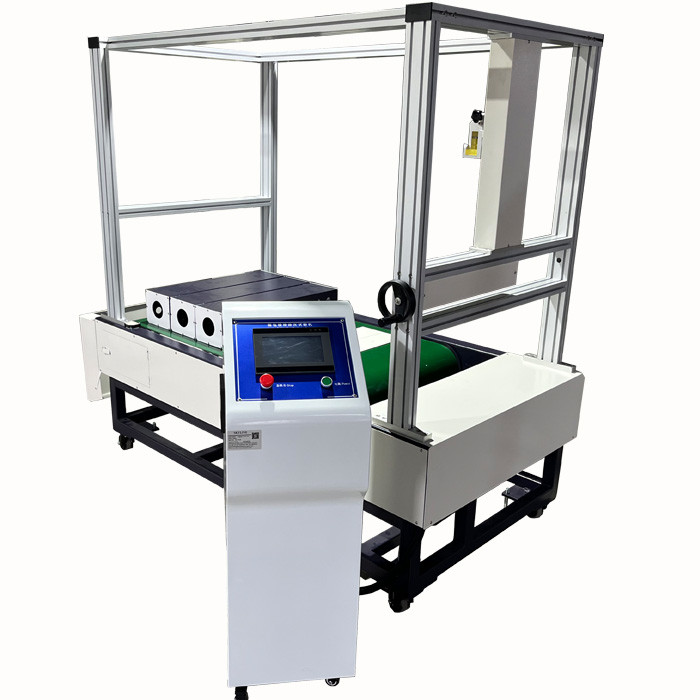

Luggage Road Condition Simulated Testing Machine 220v 50hz

Place of Origin China
Brand Name SKYLINE
Certification calibration certificate
Model Number SL-TL02
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 35 working days
Payment Terms Western Union, T/T,
Supply Ability 2 pcs/ month
Product Details
SKYLINE: Wheeled Luggage Down The Stairs Tester Test Speed: Adjustable 5 Km/H
Load: Max 50 Lb Up And Down: MAX: 300 Mm
Dimension: 2100x1260x2000 LxWxH Weight: 400kg
Highlight:

luggage road condition simulated testing machine

,

simulated testing machine 220v 50hz
Product Description



Luggage Road Condition Simulated Testing Machine/Luggage Stair Simulation Testing Machine/Luggage Updown Stairs Tester

Brand New Wheeled Luggage down the Stairs Tester With Standard Accessories( Luggage inspection Machine)





Application

Wheeled Luggage Down the stairs Tester is mainly apply to the test of suitcase and wheel travelling bags wheel and wheel axle. Luggage road condition simulated tester can test the abrasion resistance ability of the wheel material and the whole structure of the luggage .



Working principle
Walking test luggage is loaded in the specified sample weight, when the use of rotating roller or belt type wheeled walking test machine friction roller or belt to go round each other with the sample, the sample from the impact of vibration and shock wear to simulate the use of state luggage when walking, walking round test sample, axle, wheel frame, rod, housing quality, and calculates the amount of wear to go round.

Luggage Road Condition Simulated Testing Machine 220v 50hz

Technical Parameters

 Test Speed  0~5 Km/hr adjustable
 Time Setting  0~999.9 hours, outage memory
 Bump Plate  5mm,8 pieces
 Belt Perimeter  380 cm
 Belt Width  76 cm
 Attachment  Suitcase fixed seat adjustment
 Machine Size (L×W×H)  220×180×160cm
 Weight  360Kg
 Power  220V/50Hz
 Design Criteria  QB/T 2920-2007



Luggage Road Condition Simulated Testing Machine 220v 50hz
