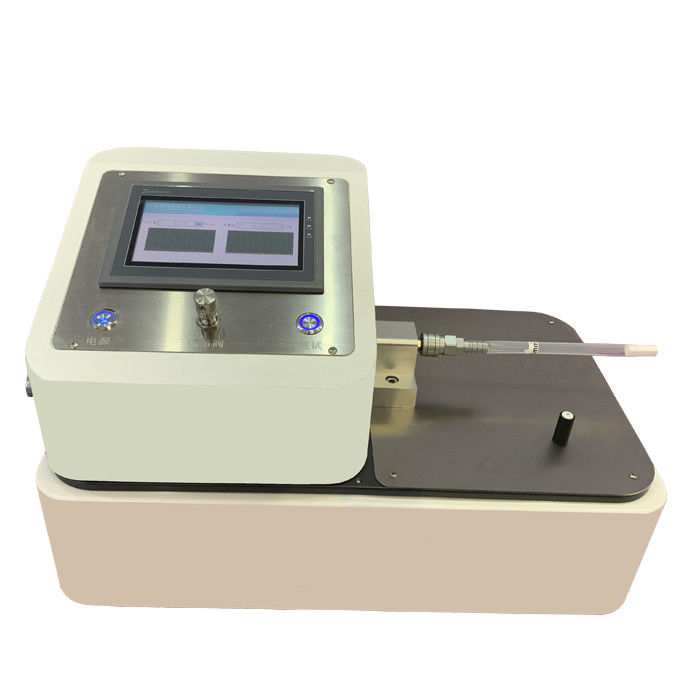

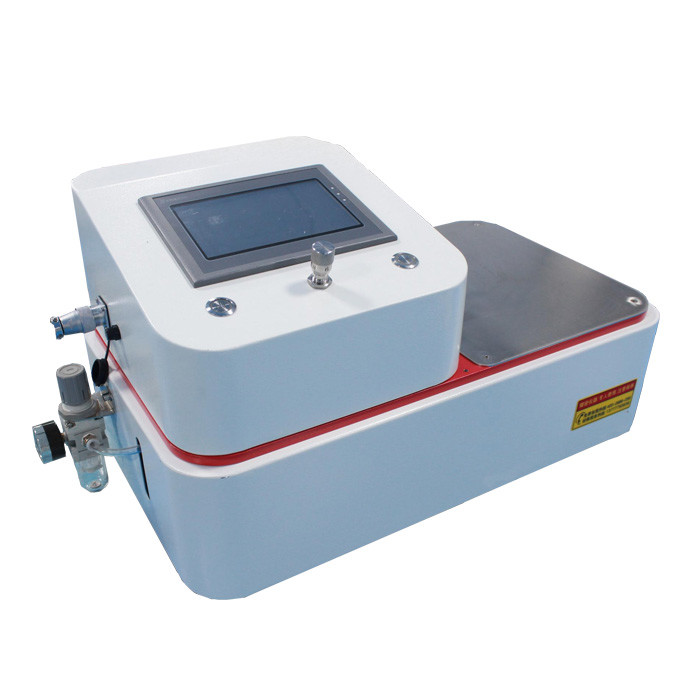

ISO 11540 Pen Cap Air Flow Testing Machine
ISO 11540 Pen Cap Air Flow Testing Machine
ISO 11540 Pen Cap Air Flow Testing Machine

ISO 11540 Pen Cap Air Flow Testing Machine

Product Details

Place of Origin: DONGGUAN CITY

Brand Name: SKYLINE

Certification: CE ISO

Model Number: SL-PL06

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negotiable

Packaging Details: Export packaing

Delivery Time: 7 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200Sets/Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Pen Cap Air Flow Testing Machine

,

ISO 11540 Air Flow Testing Machine

,

LCC Air Flow Testing Machine

Flow Control Valve:
±0.1L/min
Resolution:
0.001L/min
Flow Meter:
Can Measure Air Flow At 5L/min And 10L/min, At Least Accurate To ±0.2 L/min
Manometer:
Able To Measure At Least 4Kpa Of Pressure
Manometer Accuracy:
±0.1kpa
Elastic Tube:
Can Be Equipped With 7~14mm Hose, Can Measure 6~16mm Specification Pen Cap
Control Mode:
LCC Touch Screen Control
Pen Cap Test Components:
Self-locking Quick Interface, Connect The Pen Cap Convenient And Fast
Gas Source Device Requirements:
In The Pressure Range Of 4kPa ~ 50kPa, Stable Flow Is At Least 25L/min
Flow Control Valve:
±0.1L/min
Resolution:
0.001L/min
Flow Meter:
Can Measure Air Flow At 5L/min And 10L/min, At Least Accurate To ±0.2 L/min
Manometer:
Able To Measure At Least 4Kpa Of Pressure
Manometer Accuracy:
±0.1kpa
Elastic Tube:
Can Be Equipped With 7~14mm Hose, Can Measure 6~16mm Specification Pen Cap
Control Mode:
LCC Touch Screen Control
Pen Cap Test Components:
Self-locking Quick Interface, Connect The Pen Cap Convenient And Fast
Gas Source Device Requirements:
In The Pressure Range Of 4kPa ~ 50kPa, Stable Flow Is At Least 25L/min
Product Description

ISO 11540 Air Flow Test For Writing Instruments



Introductions

This machine is based on the "GB21027-2020 General Requirements for the Safety of Student Products" standard (i.e., under the pressure of 1.33KPa, the air ventilation of the pen cap must reach 8L/min), which is a special testing instrument customised for pen cap air permeability testing.

(i.e. under 1.33KPa pressure, the air ventilation of the pen cap must reach 8L/min), and it is a special testing instrument customised for pen cap ventilation testing. It is a special testing instrument customised for pen cap aeration testing. It is mainly used to insert the pen cap completely into

The main purpose is to insert the pen cap completely into an elastic tube with a suitable diameter, air circulation and pressure difference at both ends, in order to measure the air flow of the pen cap.



Test standards

① BS7272-1/-2: 2008 Safety standard for choking prevention of pen caps and pens plugs
② JTS S 6060:1996 Safety requirements for writing pens and marker pens caps for children up to and including 14 years of age
③ ISO 11540:1993 Safety requirements for writing pens and marker caps for children up to and including 14 years of age
④ GB 21027:2007 General requirements for the safety of student products
⑤ GB/T 24110-2009 Safety requirements and test methods for pen caps and end caps for import and export pen products



Technical parameter

Flow control valve ±0.1L/min/resolution 0.001L/min
Flow meter can measure air flow at 5L/min and 10L/min, at least accurate to ±0.2 L/min
Manometer able to measure at least 4Kpa of pressure.
Manometer accuracy ±0.1kpa
Elastic tube can be equipped with 7~14mm hose, can measure 6~16mm specification pen cap
Control mode LCC touch screen control
Pen cap test components self-locking quick interface, connect the pen cap convenient and fast.



Gas source

 In the pressure range of 4kPa ~ 50kPa, stable flow is at least 25L/min
