EN ISO 11925 Building Materials Ignitability Flammability Tester
EN ISO 11925 Building Materials Ignitability Flammability Tester
EN ISO 11925 Building Materials Ignitability Flammability Tester
EN ISO 11925 Building Materials Ignitability Flammability Tester
EN ISO 11925 Building Materials Ignitability Flammability Tester
EN ISO 11925 Building Materials Ignitability Flammability Tester
EN ISO 11925 Building Materials Ignitability Flammability Tester

EN ISO 11925 Building Materials Ignitability Flammability Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-FL15

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 10 work days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

ISO 11925 Ignitability Flammability Teste

,

Building Materials Ignitability Flammability Teste

,

EN Ignitability Flammability Test Equipment

Building Material:
Flammability Testing Equipment Ignitability Tester
Standards:
EN11925-2
Application:
Building Material
Box Size:
835 X Depth 400 X High 815mm
Material:
1.5mm Stainless Steel
Touch Panel:
7 Inch Effective Display, Size 15.5cm Wide 8.6cm
Observing Window:
Two Big Viewing Windows On The Front And Right Side
Resolution: 800*480:
800*480
Packing Dimension:
Length103*width50*height100mm
Gross Weight:
82.5kg
Building Material:
Flammability Testing Equipment Ignitability Tester
Standards:
EN11925-2
Application:
Building Material
Box Size:
835 X Depth 400 X High 815mm
Material:
1.5mm Stainless Steel
Touch Panel:
7 Inch Effective Display, Size 15.5cm Wide 8.6cm
Observing Window:
Two Big Viewing Windows On The Front And Right Side
Resolution: 800*480:
800*480
Packing Dimension:
Length103*width50*height100mm
Gross Weight:
82.5kg
Product Description

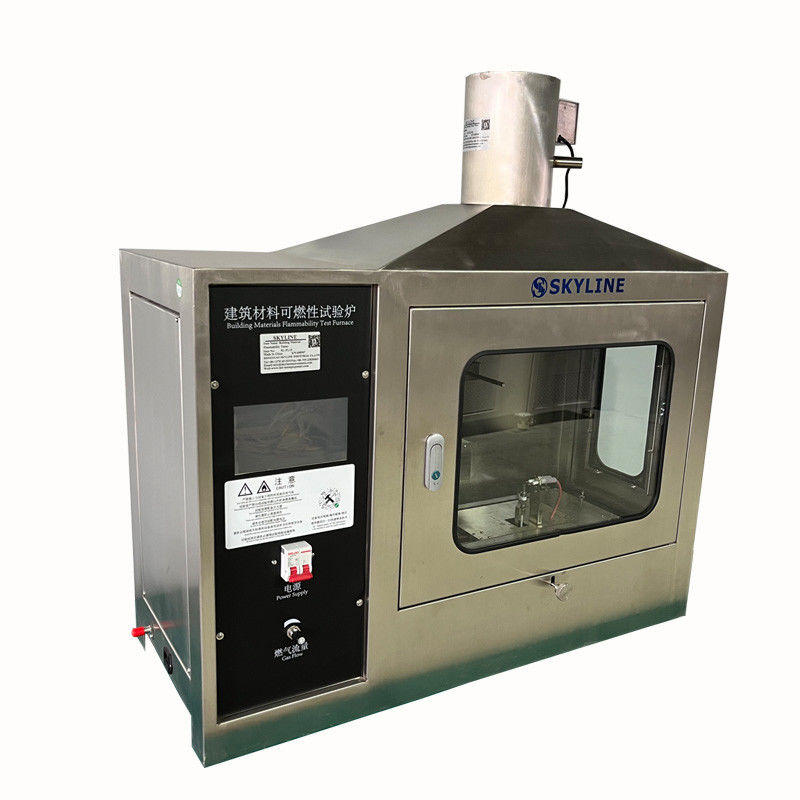

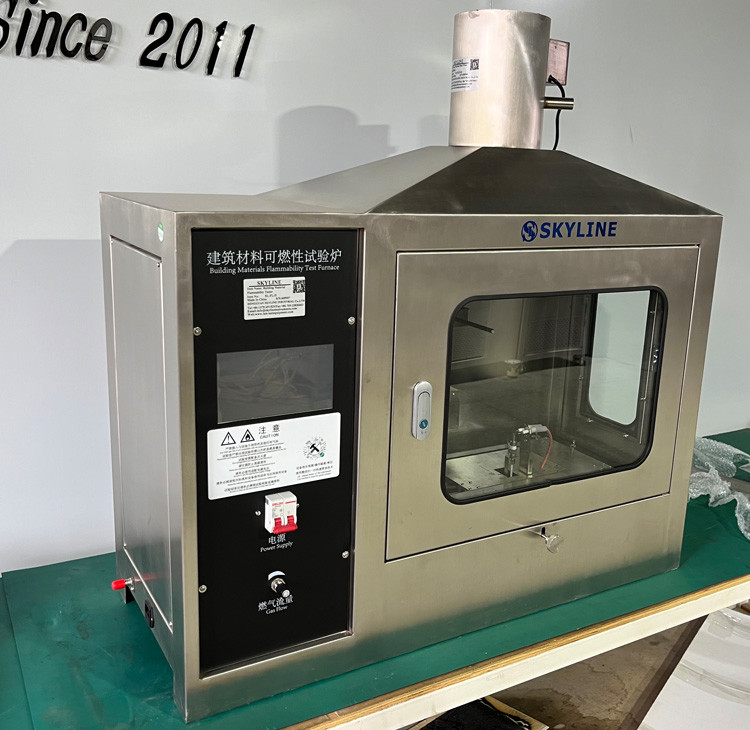

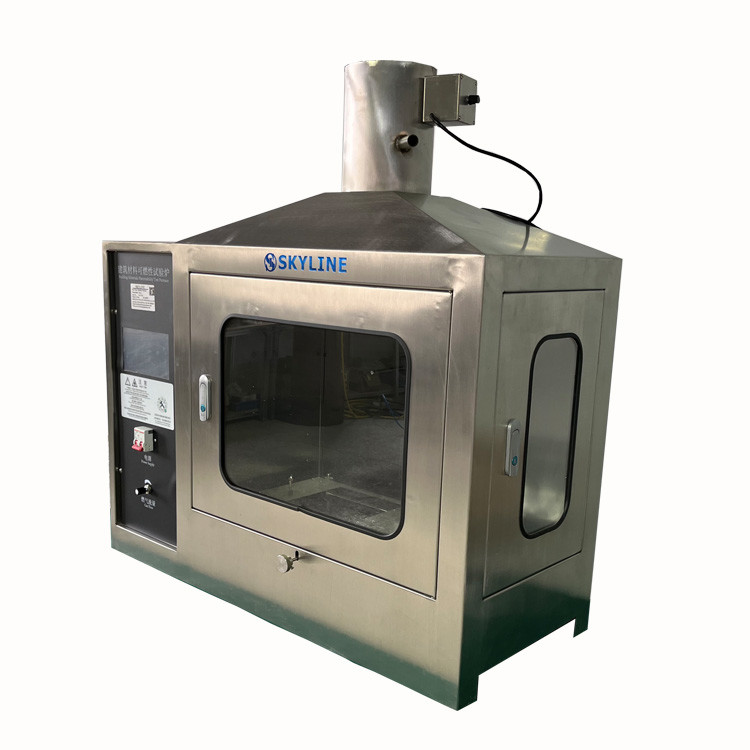

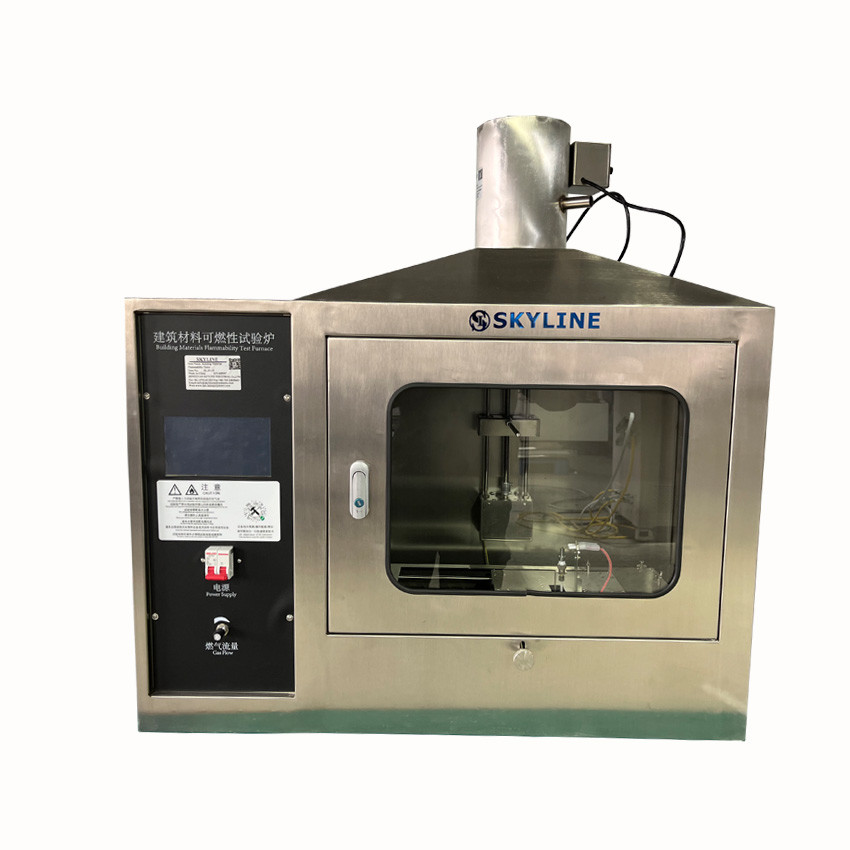

Building Material Flammability Test Furnace with Touch Screen Control



Description

The building materials flammability test furnace is in the normal combustion environment, with a small flame directly impacted the vertical specimen to determine the combustibility of the building products. The flammability test furnace for building materials is based on the principle of Kleinbrenner (Klein Brenner), which is directly impacted by a vertical flame. It is used to determine the combustion performance of B grade building materials (namely, the judgement of burning performance and flame retardant grade B of building materials).

Standards

EN ISO 11925-2

Features

①The operation in line with ergonomic design,test all through the touch screen operation,high degree of automation.Otherwise, the previous test results can be stored and can access the previous test data.

②Controllable automatic lifting of servo motor drive pattern frame.

③The Bunsen Burner can be advanced and retreat and adjusted.

④1.5mm stainless steel plate box

⑤Double angle observation test of 2 heat-resistant tempered glass doors, double (with lock) is convenient and practical.

⑥High pressure automatic ignition and durable combustion.

⑦The point fire source can be automatically tilted by 45 degrees.

⑧The height of the flame is adjusted by the precision regulating valve.



Technical parameters

Stainless steel plate box 1.5mm
Bunsen burner can be adjusted forward and backward
Diameter of burner Φ 0.17mm burner with regulator; four ￠4mm air suction inlet
Flame length of Bunsen burner 20mm ± 2mm
Ignition source can be automatically tilted by 45 degrees
The Bunsen burner applies a flame time 15s to the pattern
Flame height Adjusted by precision adjustment valve
Sample rack can move up and down and back and forth
Sample holders 2 pcs
Touch screen display 7 inches Effective display size 15.5cm in length and 8.6cm in width
Resolution 800 * 480
Communication interface RS232, 3.3V CMOS or TTL, serial port mode
Storage capacity 1G
FPGA driver display "zero" start time, can run after power on
Controller adopts low energy consumption processor, and automatically enters energy saving mode
Gas source >95% propane gas;(user should provide for themselves)
Gas pressure 10kpa~50kpa
Flue air velocity 0.7m/s only on condition of burner burning and draught hood open
Time adjustment of continuous flame 0 ~ 99minutes99seconds
Time adjustment of afterflame 0 ~ 99minutes99seconds
Timer accuracy ≤1s/h
Ambient temperature 15 ℃ ～ 25 ℃;
Relative humidity ≤ 85%
Cabinet size 835 × 400 × 815mm
Power supply voltage and power 220 V, 50 Hz, 100 W
