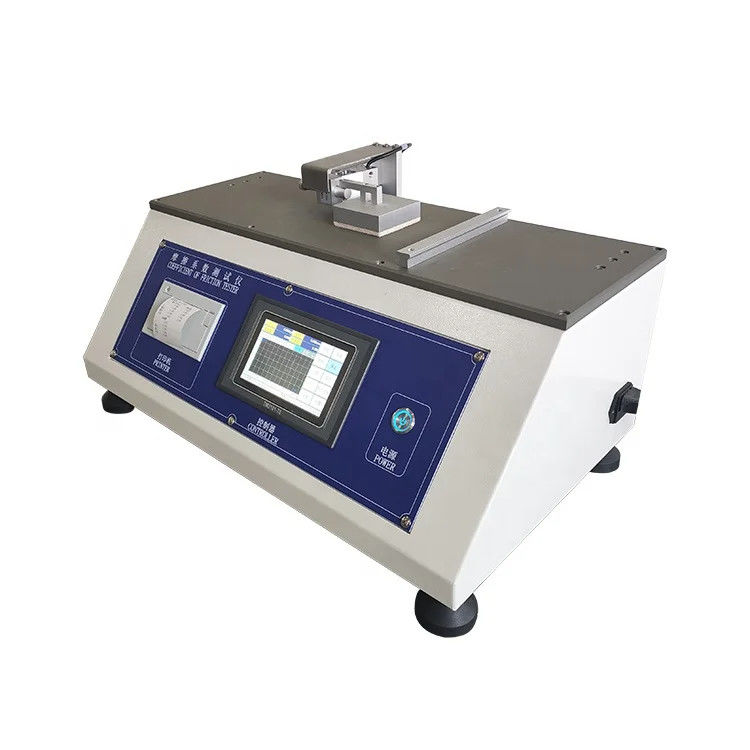

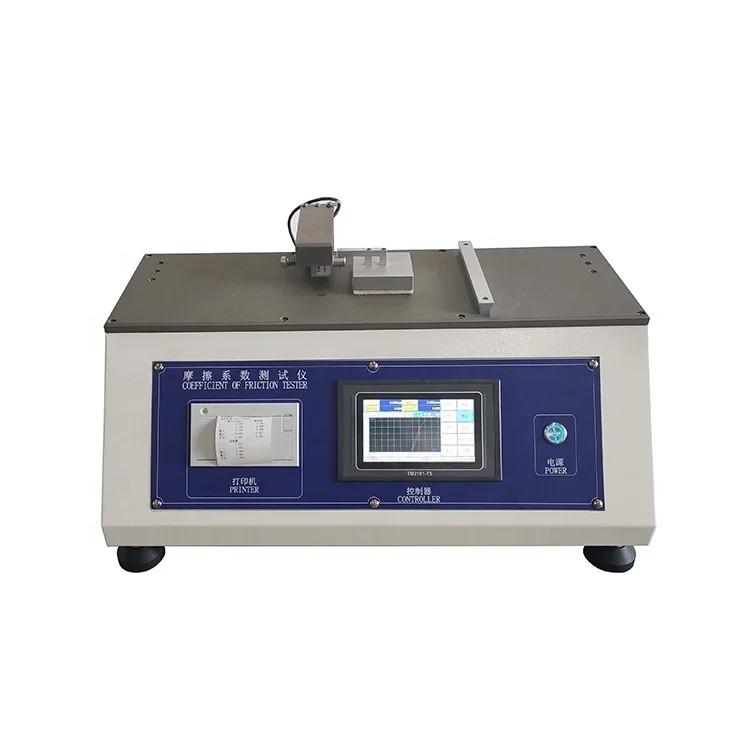

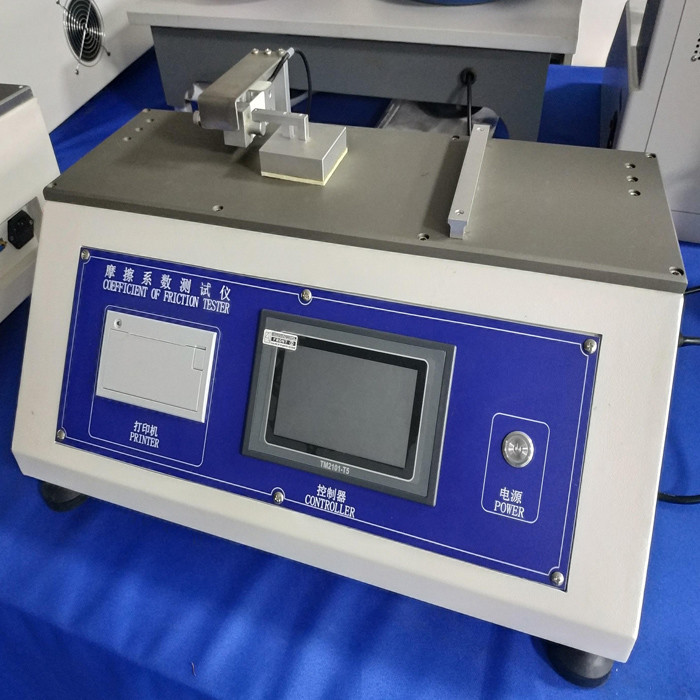

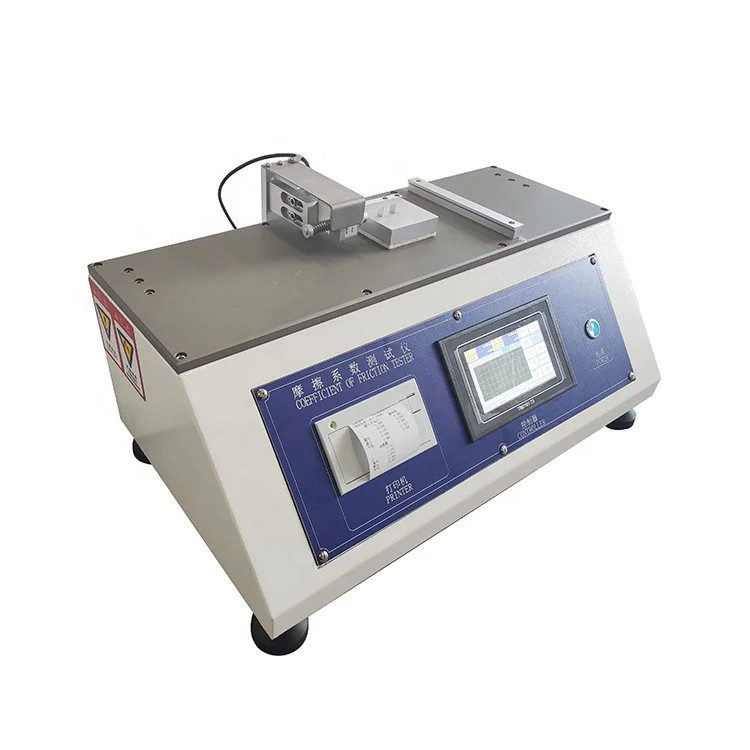

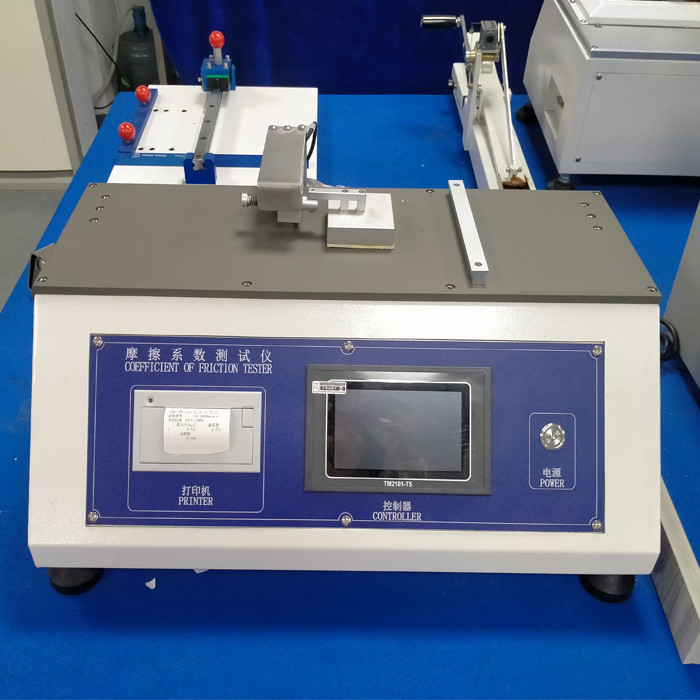

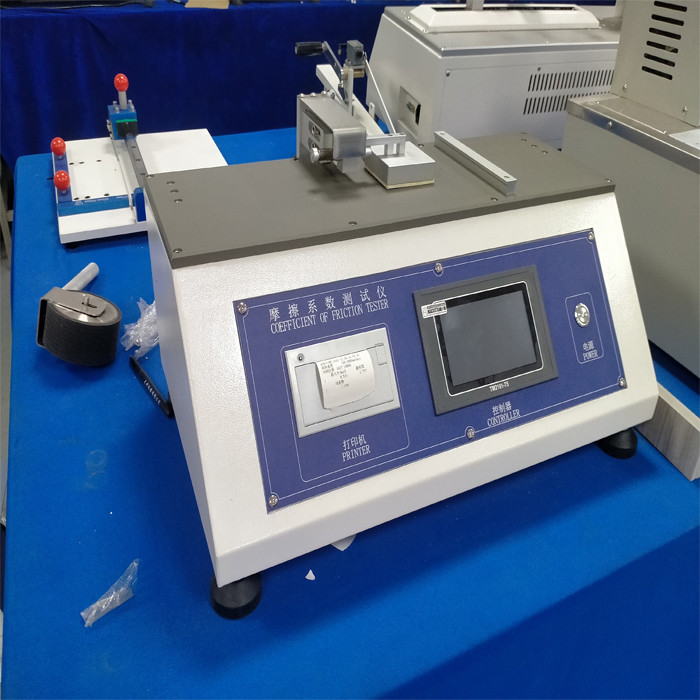

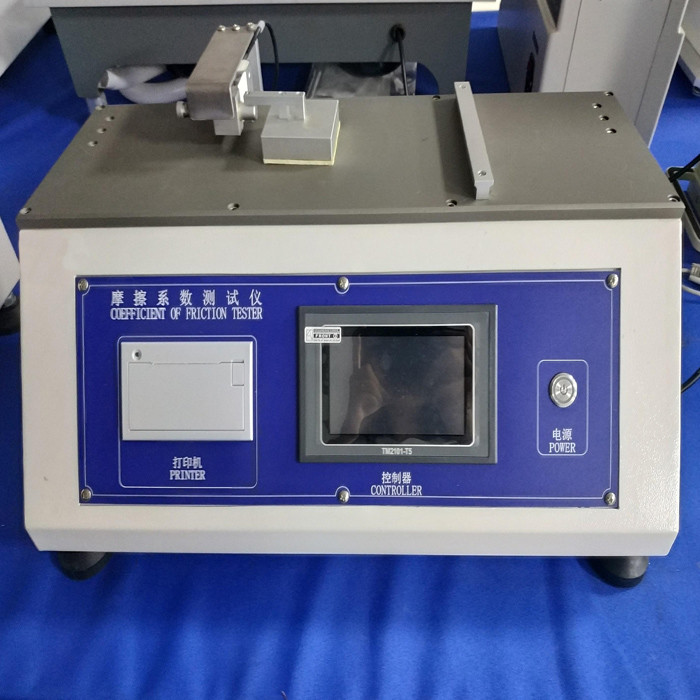

Paper Friction Coefficient Tester/ Film Friction Coefficient Tester
Application
Suitable for measuring the static friction coefficient of plastic film and sheet, rubber, paper, cardboard, woven bag, fabric style, metal composite tape for communication cable, conveyor belt, wood, coating, wiper, shoe material, tire, etc. And dynamic friction coefficient. By measuring the slipperiness of the material. It can also be used for the measurement of the slip properties of daily necessities such as cosmetics and eye drops.
Application Standards
GB 10006 <Plastics - Film and sheeting—Determination of the coefficients of friction>
ISO 8295 <Plastic – Film and sheeting – Determination of the coefficient of friction>
ASTM D1894 < Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting>
TAPPI T816 <Coefficient of Static Friction of Corrugated and Solid Fiberboard (Horizontal Plane Method)>
Etc...
Features
1. Can meet different test methods and standards, GB ,ISO ,ASTM test methods setting freely.
2. LCD display all the test result, data and curve.
3. Wrapping connector driving system to make working more stably and more precision.
4. Microcomputer controlling, all keyboard operation.
5. Automatic judgment materials slide adhesive state and sample test results between quantitative discrete
analysis.
6. Static friction coefficient and dynamic friction coefficient option freely, flexible test.
7. Can save 6 test results and data and display the curve. Also with query function.
Technical parameter
|
Power supply
|
AC220V±10% 50HZ 2A
|
|
Measurement range
|
(0.01~5)N
|
|
Resolution
|
0.01 N
|
|
Accuracy
|
0.5%
|
|
Stroke
|
70 mm, 150 mm
|
|
Slider weight
|
200g (standard) Remark: The machine support any slider
weight test
|
|
Test speed
|
100mm/min
|
|
Test Environment
|
Temp 10C~40C Humi 20% RH~70%RH
|
|
Dimension
|
400(L)x300(W)x180(H)mm
|
|
Weight
|
30kg
|
