EN1888-2018 Lab Testing Equipment Baby Stroller Wheel Abrasion Tester

Place of Origin China
Brand Name SKYLINE
Certification calibration certificate
Model Number SL-TBS014
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, T/T,
Supply Ability 10 pcs/ month
Product Details
SKYLINE: Baby Stroller Wheel Abrasion Tester Test Speed: 5km/h±0.1km/h
Standards: EN1888-2018 Machine Size: 3300*1400*1900mm
Weight: 600kg Bearing Load: 100LB
Highlight:

abrasion testing equipment

,

physical testing equipment

,

EN1888-2018 Lab Testing Equipment
Product Description

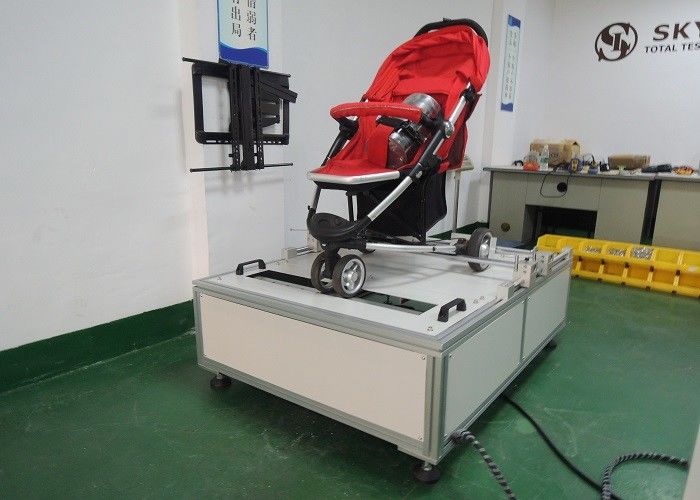

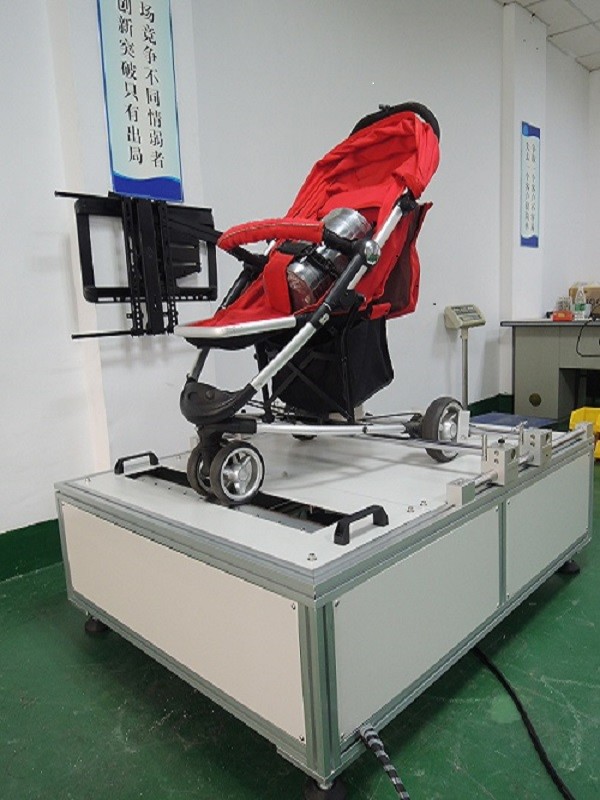

EN1888-2018 Baby Stroller Wheel Abrasion Testing Machine



Description

It is for testing the stroller wheel performance on the harmful roadway,after doing the repeat impact test,examine the wheel change the Shape or damage. (Base on the EN-1888-2018 requirement/Customer specified requirement) User can preset speed and cycle quantity in the PLC interface.



Applications

This wheel abrasion conditioning shall be performed after the irregular surface test (8.10.3)

Abrasion conditioning shall be performed on a drum speed of (5+/-0.1)km/h 3.100,000times.

Key Specifications
 Experiment work  One station
 Test speed  5km/h±0.1km/h
 Drive horsepower  AC380V*3 diameter*3HP
 Up and Down Pitch  Max.300mm
 Effective width  Max.1000mm
 Test surface  Sand paper 80 #
 Bearing load  Max.100LB
 Power  AC380V, 5kw
 Machine size  3300*1400*1900mm
 Weight  600kg
 Shape of impact block Trapezium, halfarc or specified.
