ISO 18895 EN 12958 Footwear Testing Equipment Steel Shank Fatigue Resistance Tester
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 35 work days |
| Payment Method: | Western Union, MoneyGram, T/T |
rub resistance tester
,shoe wear tester

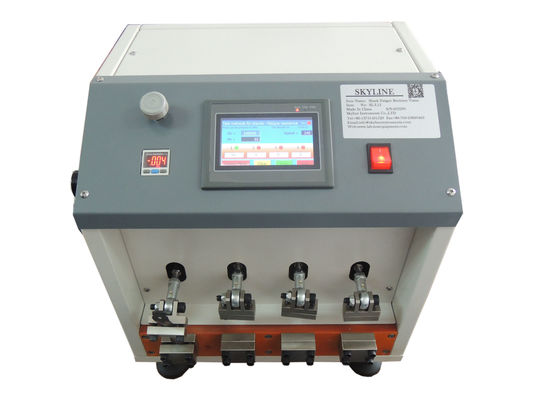

ISO 18895 EN 12958 Footwear Tesitng Equipment Steel Shank Fatigue Resistant Tester
Production Information
Shank fatigue resistant test is suitable for the test shoes with the core of the resistance to fatigue.
The principle is the core of both ends with two sets of clamps fixed, and subjected to a certain amount of force applied to the fixture at the core frequency per second, four cycles reciprocating bending movement
View the sample after a certain number of the extent of the damage.
Technical Parameters
| Test speed | 0-300cpm |
| Imposed in the sample loop force | 5±0.2KG |
| The distance between the fixtures | 7±0.1cm |
| Counter Six figure LCD | 0-999 999 |
| Volume | 50*30*40cm |
| Weight | 90kg |
| Power | AC220V 0.4KIW 50Hz |
Testing Standards
ISO 18895 EN 12958
Why testing is important in footwear?
Why Do You Need to Test Your Footwear Product? ... While styling and comfort are among the key attributes a consumer looks for in footwear, meeting standards of performance, durability and safety are also important. In addition, conforming to the increasing number of regulatory guidelines and laws is imperative.
